Pyxis LT-739 Ultralow Turbidity Sensor (Warm White Light, Mid Range)
Ultra-low turbidity sensor, warm white light 3200K, 0.000-40.000NTU, 0.002NTU resolution, 2% accuracy, EPA 180.1. Dual 4-20mA + RS-485, 8-pin.
Pyxis LT-739 Ultralow Turbidity Sensor (Warm White Light, Mid Range)

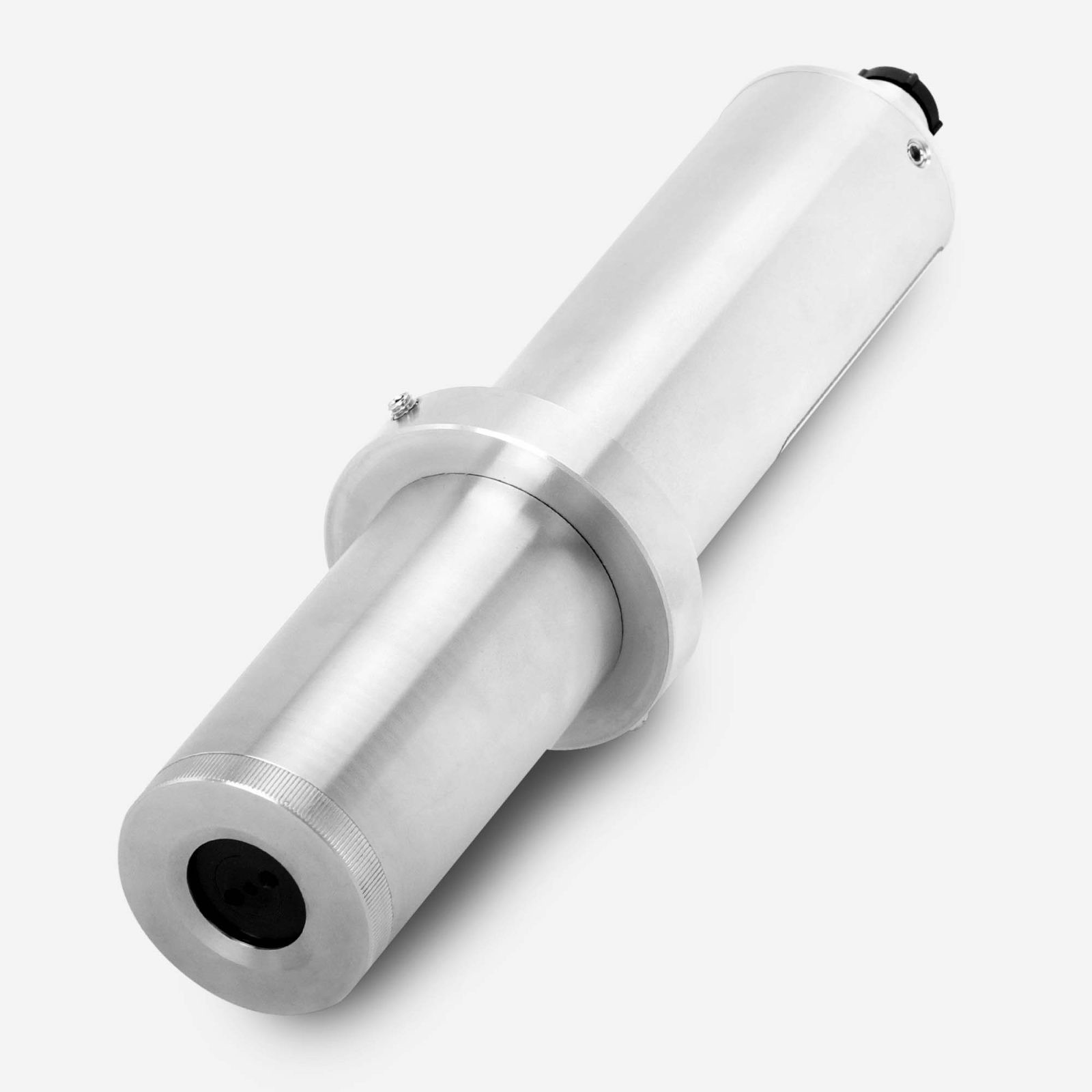

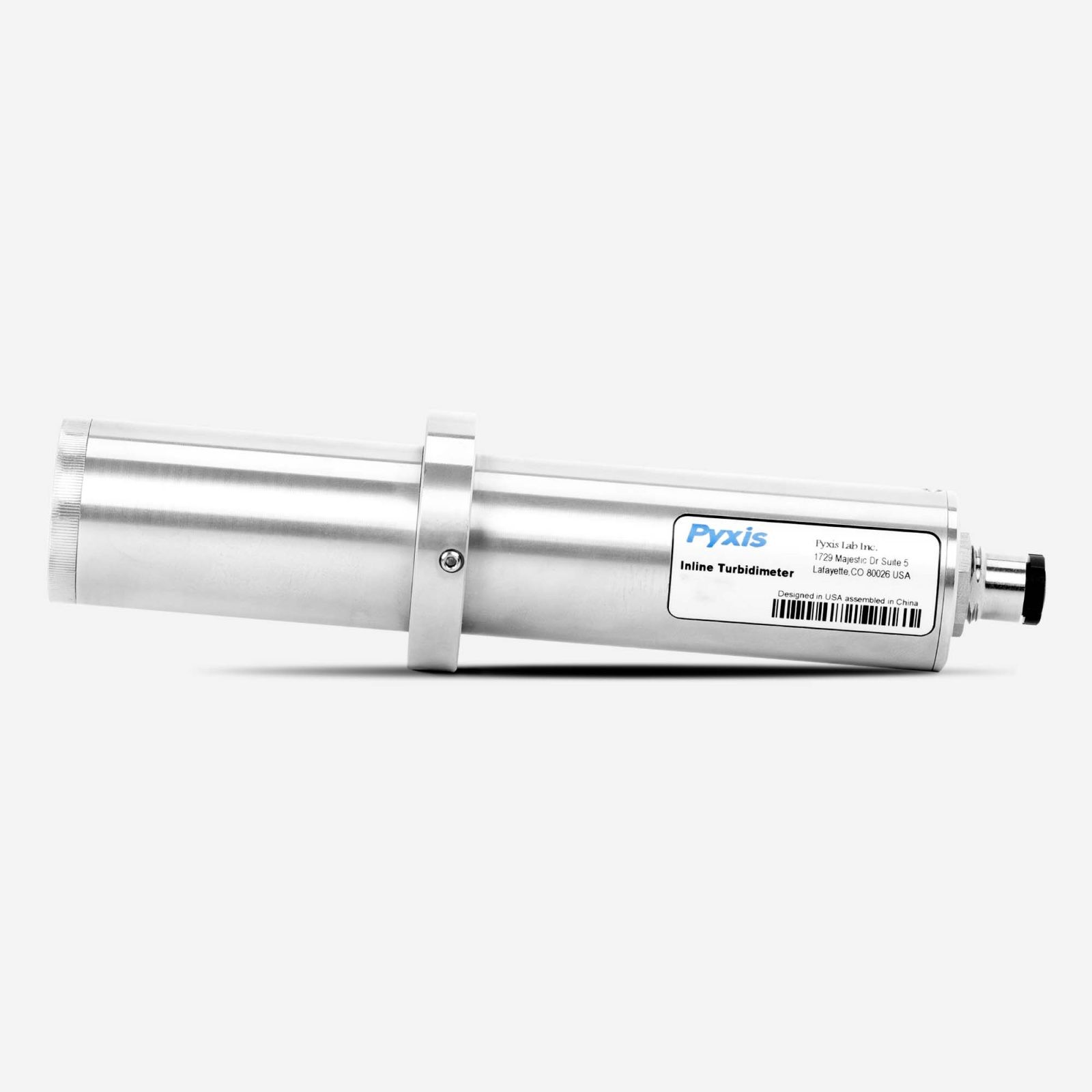

The Pyxis LT-739 is a mid-range ultralow turbidity sensor using warm white light (3200K) illumination, built for resolution and accuracy beyond a standard process turbidimeter. It measures 0.000-40.000NTU with 0.002NTU resolution and 2% accuracy to EPA 180.1, with dual 4-20mA analog outputs plus RS-485 through an 8-pin connector.
Description
The Pyxis LT-739 is the mid-range variant of the ultralow turbidity sensor family, using warm white light (3200K) illumination to deliver resolution and accuracy beyond a standard process turbidimeter. It measures across a 0.000-40.000NTU range with 0.002NTU resolution and 2% accuracy, tested to the EPA 180.1 method.
It communicates through dual 4-20mA analog outputs plus RS-485 via an 8-pin connector, allowing straightforward integration with existing control and monitoring systems.
The mid-range span makes it a fit for process applications that fall between the ultra-fine low-range LT-737 and the broader-range LT-736, where the target turbidity window typically sits in the tens-of-NTU range.
Why Use This
Balanced Range and Precision
Covers 0.000-40.000NTU with 0.002NTU resolution and 2% accuracy to EPA 180.1, suited to mid-range low-turbidity monitoring.
Flexible Signal Output
Dual 4-20mA analog outputs plus RS-485 via an 8-pin connector support integration into existing systems.
Applications
- Mid-range process turbidity monitoring — tailored to the 0-40NTU window common in process control
- Regulatory turbidity reporting — accuracy referenced to EPA 180.1
- Treated water clarity verification — precision beyond standard process turbidimeters
FAQ
What range does the LT-739 cover?
0.000-40.000NTU, positioned between the low-range LT-737 and the broader-range LT-736.
What accuracy can I expect?
0.002NTU resolution and 2% accuracy, measured to the EPA 180.1 method.
What light source does it use?
Warm white light at 3200K.
What outputs are available for integration?
Dual 4-20mA analog outputs plus RS-485, via an 8-pin connector.
