Lecol SWAS
Boiler Sample Conditioning
Representative Samples From Live Steam and Boiler Water

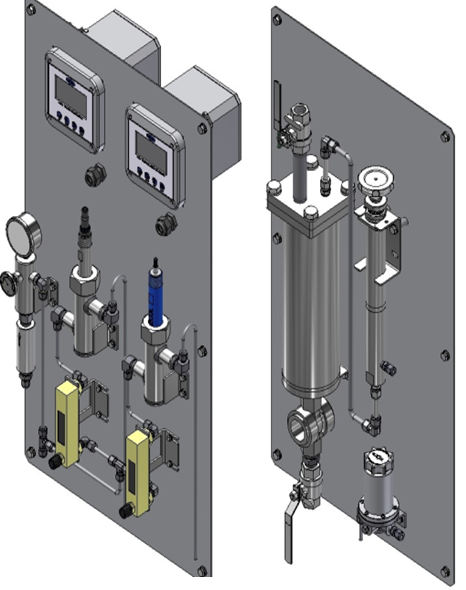

Continuous monitoring of steam and boiler water chemistry depends on getting a safe, representative sample to the analyser — without flashing, cooling losses or contamination along the way. Lecol's Steam and Water Analysis System (SWAS) equipment forms the conditioning train between the process and the analyser: dual-helical-coil sample coolers bring live steam and boiler water down to a safe temperature, rod-in-tube pressure reducers step pressure down without erosion or plugging, cation exchange resin columns and degassed cation conductivity units then measure ionic contamination to ASTM D4519. Autoflo supplies each stage individually or as a complete engineered train.
Non-welded dual helical coil sample coolers — up to 350 bar @ 537°C, extensive heat transfer area, removable body for cleaning
US-patent rod-in-tube pressure reducers — on-line internal flush without interrupting the process or removing equipment
Clear polycarbonate resin columns — 900 mL cation exchange resin with quick-release connectors for fast maintenance
ASTM D4519-compliant degassed cation conductivity units — self-circulating cooling, no-flow alarm, multi-parameter readout
Browse by Component
All SWAS Equipment
Sample Conditioning

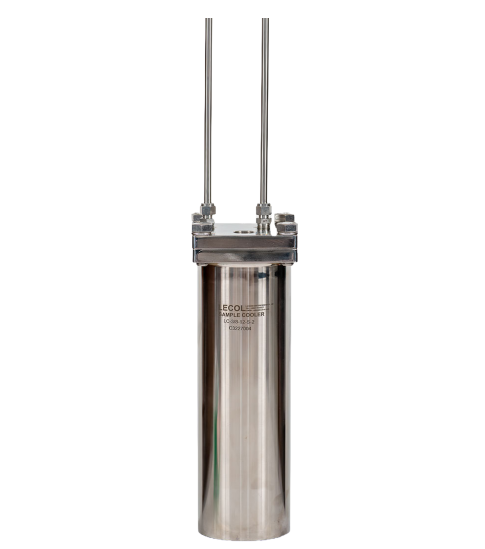

Lecol Sample Cooler
Up to 350 Bar @ 537°C · 0.22–0.32 m² Area
LC Series dual helical coil sample coolers. Five models (LC-1/4, LC-3/8 in 4″/5″ shell), seamless non-welded coils, removable body for simplified cleaning.
Pressure Control

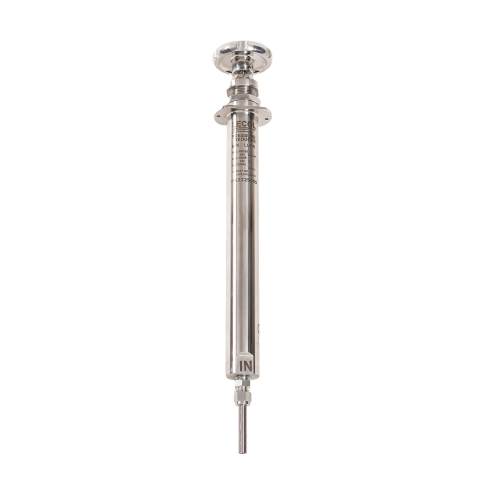

Lecol Pressure Reducer
350 Barg · Rod-in-Tube Design
LUPR Series. US-patent rod-in-tube design lowers flow velocity to reduce flashing and seat erosion. On-line internal flush; optional auto control transmitter.
Ion Exchange

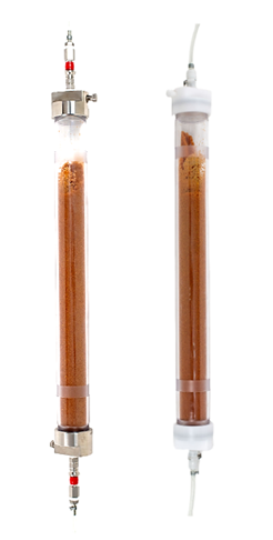

Lecol Resin Column
900 mL Resin · 100–300 mL/min
LUCR Series cation exchange column. Clear polycarbonate body for resin-colour viewing, quick-release connectors, 316SS or Acetal (POM) end caps.
Conductivity Analyser

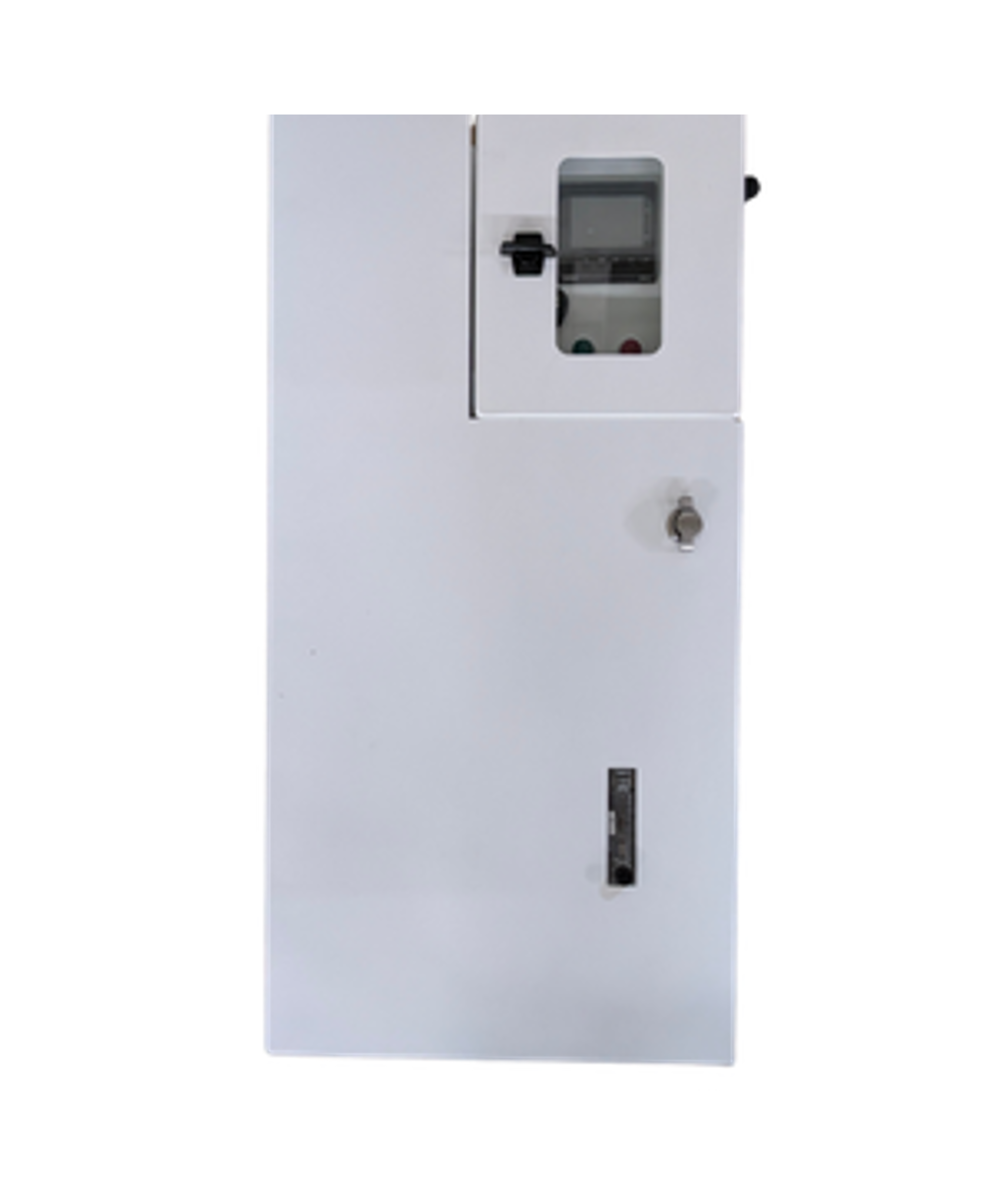

Lecol Degassed Unit
100–200 cc/min · ASTM D4519
DG-1000 Series degassed cation conductivity system. Self-circulating cooling, no-flow alarm, out-of-water protection, multi-parameter readout.
