Flow Technologies · Fluimac Helios

Peristaltic Metering Pump

Hose-based peristaltic pumps for precise, valve-free metering of abrasive, viscous and shear-sensitive fluids — four sizes from 23 to 1785 L/H, with fixed-speed, mechanical-variator or electronic-variator flow control, for process sites across Malaysia.

(function () { const obs = new IntersectionObserver(entries => { entries.forEach(e => { if (e.isIntersecting) { e.target.classList.add('is-visible'); obs.unobserve(e.target); } }); }, { threshold: 0.08 }); document.querySelectorAll('.reveal, .stagger').forEach(el => obs.observe(el)); })();
Peristaltic Metering Pump | Autoflo Technology /* Section-specific only — shared reset, fonts, :root tokens, .btn, .container, .reveal/.stagger are loaded once via the Hero section and cascade here. */ .cat-intro { padding: 100px 0; background: var(--bg); border-bottom: 1px solid var(--border); } .cat-intro-grid { display: grid; grid-template-columns: 1fr 1fr; gap: 64px; align-items: center; } .cat-intro-image { position: relative; border-radius: 12px; overflow: hidden; aspect-ratio: 4 / 5; background: var(--bg-alt); box-shadow: 0 24px 48px rgba(0,0,0,0.08); } .cat-intro-image img { width: 100%; height: 100%; object-fit: cover; transition: transform 0.5s; } .cat-intro-image:hover img { transform: scale(1.03); } .cat-intro-badge { position: absolute; top: 16px; left: 16px; background: var(--dark-bg); color: #fff; font-size: 11px; font-weight: 600; letter-spacing: 0.08em; text-transform: uppercase; padding: 5px 12px; border-radius: 4px; border: 1px solid rgba(255,255,255,0.15); } .cat-intro-label { font-size: 14px; font-weight: 600; letter-spacing: 0.05em; color: var(--accent); text-transform: uppercase; display: inline-block; margin-bottom: 8px; } .cat-intro-title { font-family: 'Outfit', system-ui, sans-serif; font-size: clamp(32px, 4vw, 40px); font-weight: 600; color: var(--text); letter-spacing: -0.02em; line-height: 1.15; margin-top: 4px; } .cat-intro-desc { font-size: 17px; color: var(--muted); line-height: 1.7; margin-bottom: 24px; } .feature-list { display: flex; flex-direction: column; gap: 12px; margin-bottom: 32px; } .feature-item { display: flex; align-items: flex-start; gap: 12px; } .feature-check { width: 20px; height: 20px; border-radius: 50%; background: var(--accent-tint); border: 1px solid rgba(128,0,89,0.2); flex-shrink: 0; margin-top: 1px; display: flex; align-items: center; justify-content: center; } .feature-check svg { width: 11px; height: 11px; color: var(--accent); } .feature-item p { font-size: 15px; color: var(--muted); line-height: 1.6; } .feature-item strong { color: var(--text); font-weight: 600; } @media (max-width: 900px) { .cat-intro-grid { grid-template-columns: 1fr; gap: 40px; } }

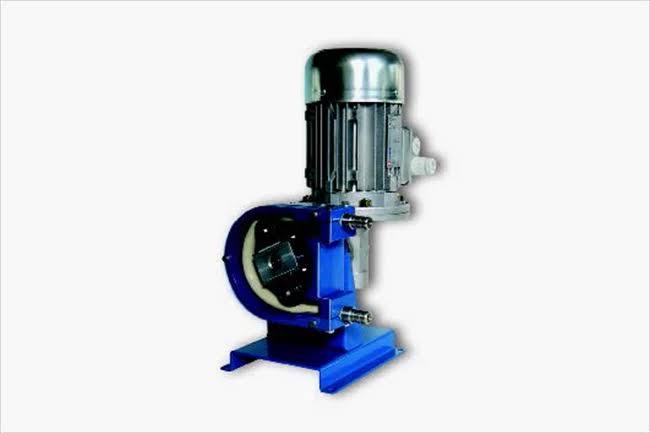

Fluimac Helios Peristaltic Pump
Fluimac Helios AS Series
Peristaltic Metering Pump

Valve-Free Metering Through a Single Replaceable Hose

The Fluimac Helios AS series moves fluid by compressing a single elastomer hose between a rotating shoe and the pump casing — the fluid never contacts a seal, valve, gland or bearing. That makes it self-priming, safe to run dry or against a closed valve, and tolerant of abrasive, corrosive, viscous and shear-sensitive fluids that would damage conventional pumps. Aluminium alloy casing and rotor, PVC rollers, and a hose selected to match the pumped fluid and duty. Four sizes cover flows from 23 to 1785 L/H, each available with fixed-speed, mechanical-variator or electronic-variator control for stepless in-process adjustment.

Fluid touches only the hose — no seals, valves or glands to wear, leak or contaminate the product

Three control options — fixed-speed (FX), mechanical variator (VX) or electronic variator (IX) for stepless flow adjustment

Self-priming and dry-run safe — runs empty or against a closed valve without damage, and can pump against vacuum

Four sizes, 23–1785 L/H — AS10 through AS25 covering trace dosing up to high-volume metering

Request Engineering Quote
(function () { const obs = new IntersectionObserver(entries => { entries.forEach(e => { if (e.isIntersecting) { e.target.classList.add('is-visible'); obs.unobserve(e.target); } }); }, { threshold: 0.08 }); document.querySelectorAll('.reveal, .stagger').forEach(el => obs.observe(el)); })();
Peristaltic Metering Pump | Autoflo Technology /* Section-specific only — shared reset, fonts, :root tokens, .btn, .container are loaded once via the Hero section and cascade here. */ .context-strip { background: var(--dark-bg); padding: 0; border-bottom: 1px solid rgba(255,255,255,0.06); } .context-strip-inner { display: flex; align-items: center; justify-content: space-between; gap: 24px; padding: 20px 0; flex-wrap: wrap; } .context-strip-left { display: flex; align-items: center; gap: 16px; } .context-count { font-family: 'Outfit', sans-serif; font-size: 28px; font-weight: 800; color: #fff; line-height: 1; } .context-label { font-size: 13px; color: rgba(255,255,255,0.5); font-weight: 500; } .context-divider { width: 1px; height: 32px; background: rgba(255,255,255,0.15); } .context-cats { display: flex; align-items: center; gap: 8px; flex-wrap: wrap; } .context-cat-badge { font-size: 11px; font-weight: 600; letter-spacing: 0.06em; text-transform: uppercase; color: var(--cta-bg); background: rgba(254,190,79,0.1); border: 1px solid rgba(254,190,79,0.2); padding: 4px 10px; border-radius: 3px; } @media (max-width: 900px) { .context-strip-inner { flex-direction: column; align-items: flex-start; gap: 12px; } }
4
Pump Sizes
Up to 1785 L/H 3 Control Options 9–25mm Hose Bore Aluminium Alloy Body
Request Engineering Quote
(function () { const obs = new IntersectionObserver(entries => { entries.forEach(e => { if (e.isIntersecting) { e.target.classList.add('is-visible'); obs.unobserve(e.target); } }); }, { threshold: 0.08 }); document.querySelectorAll('.reveal, .stagger').forEach(el => obs.observe(el)); })();
Peristaltic Metering Pump | Autoflo Technology /* Section-specific only — shared reset, fonts, :root tokens, .btn, .container, .reveal/.stagger are loaded once via the Hero section and cascade here. */ .product-grid-section { padding: 64px 0 100px; background: var(--bg-section); } .grid-header { display: flex; align-items: flex-end; justify-content: space-between; gap: 24px; margin-bottom: 32px; } .grid-label { font-size: 14px; font-weight: 600; letter-spacing: 0.05em; color: var(--accent); text-transform: uppercase; display: inline-block; margin-bottom: 8px; } .grid-title { font-family: 'Outfit', sans-serif; font-size: 32px; font-weight: 700; color: var(--text); letter-spacing: -0.02em; } .grid-count-badge { font-size: 13px; font-weight: 700; color: var(--accent); background: var(--accent-tint); border: 1px solid rgba(128,0,89,0.15); padding: 6px 14px; border-radius: 4px; white-space: nowrap; } .filter-bar { display: flex; gap: 8px; margin-bottom: 40px; flex-wrap: wrap; align-items: center; } .product-cards { display: grid; grid-template-columns: repeat(4, 1fr); gap: 20px; } .product-card { background: var(--bg); border: 1px solid var(--border); border-radius: 12px; overflow: hidden; display: flex; flex-direction: column; transition: border-color 0.3s, box-shadow 0.3s, transform 0.3s; position: relative; } .product-card::before { content: ''; position: absolute; top: 0; left: 0; right: 0; height: 3px; background: linear-gradient(to right, var(--accent), var(--accent-dk)); opacity: 0; transition: opacity 0.3s; z-index: 1; } .product-card:hover { border-color: rgba(128,0,89,0.25); box-shadow: 0 12px 32px rgba(0,0,0,0.08); transform: translateY(-4px); } .product-card:hover::before { opacity: 1; } .product-card-image { aspect-ratio: 4/3; overflow: hidden; background: var(--bg-alt); position: relative; } .product-card-image img { width: 100%; height: 100%; object-fit: cover; transition: transform 0.5s; } .product-card:hover .product-card-image img { transform: scale(1.06); } .product-card-body { padding: 18px 18px 0; flex: 1; display: flex; flex-direction: column; gap: 6px; } .product-card-tag { font-size: 11px; font-weight: 700; letter-spacing: 0.08em; text-transform: uppercase; color: var(--accent); } .product-card-name { font-family: 'Outfit', sans-serif; font-size: 15px; font-weight: 700; color: var(--text); line-height: 1.3; letter-spacing: -0.01em; } .product-card-models { font-size: 11.5px; color: var(--accent); font-weight: 600; margin-top: 2px; } .product-card-desc { font-size: 12px; color: var(--muted); line-height: 1.6; flex: 1; margin-top: 4px; } .product-card-footer { padding: 14px 18px 18px; border-top: 1px solid var(--border); margin-top: 14px; } .product-card-cta { display: flex; align-items: center; justify-content: space-between; } .product-card-cta span { font-size: 13px; font-weight: 600; color: var(--accent); display: inline-flex; align-items: center; gap: 5px; transition: gap 0.2s; cursor: pointer; } .product-card:hover .product-card-cta span { gap: 9px; } .product-card-cta svg { width: 13px; height: 13px; } @media (max-width: 1024px) { .product-cards { grid-template-columns: repeat(3, 1fr); } } @media (max-width: 767px) { .product-cards { grid-template-columns: repeat(2, 1fr); gap: 12px; } .grid-header { flex-direction: column; align-items: flex-start; } } @media (max-width: 480px) { .product-cards { grid-template-columns: 1fr; } }
Browse by Size

All Helios Pumps

4 Sizes
Fluimac Helios AS 10 Peristaltic Pump
Hose Peristaltic Pump
Fluimac Helios AS 10
Up to 93 L/H · 9mm Hose · 0.18 kW

Entry-size Helios for trace and low-volume metering duty. Available as Fixed-speed (FX), mechanical variator (VX) or electronic variator (IX) — the IX model spans 1.5–185 L/H for stepless in-process adjustment.

Fluimac Helios AS 15 Peristaltic Pump
Hose Peristaltic Pump
Fluimac Helios AS 15
Up to 228 L/H · 13mm Hose · 0.18 kW

Mid-range Helios for general dosing and transfer applications. Available as Fixed-speed (FX), mechanical variator (VX) or electronic variator (IX) — the IX model spans 3.7–345 L/H for stepless in-process adjustment.

Fluimac Helios AS 20 Peristaltic Pump
Hose Peristaltic Pump
Fluimac Helios AS 20
Up to 602 L/H · 17mm Hose · 0.18–0.37 kW

Higher-capacity Helios for demanding process metering. Available as Fixed-speed (FX), mechanical variator (VX) or electronic variator (IX) — the IX model spans 10–602 L/H for stepless in-process adjustment.

Fluimac Helios AS 25 Peristaltic Pump
Hose Peristaltic Pump
Fluimac Helios AS 25
Up to 1785 L/H · 25mm Hose · 0.37–0.75 kW

Largest Helios in the range — full process-scale flow, aluminium-alloy rollers. Available as Fixed-speed (FX), mechanical variator (VX) or electronic variator (IX) — the IX model spans 29–1785 L/H for stepless in-process adjustment.
