Dosatron Technology
Water-Powered Dosing Pump
The Original Water-Powered Dosing Technology
Dosatron is the original inventor of the non-electric proportional dosing pump, a technology developed in 1974 and still unmatched today. Autoflo carries the complete Dosatron range in Malaysia, built on the same water-powered mechanism across every line.

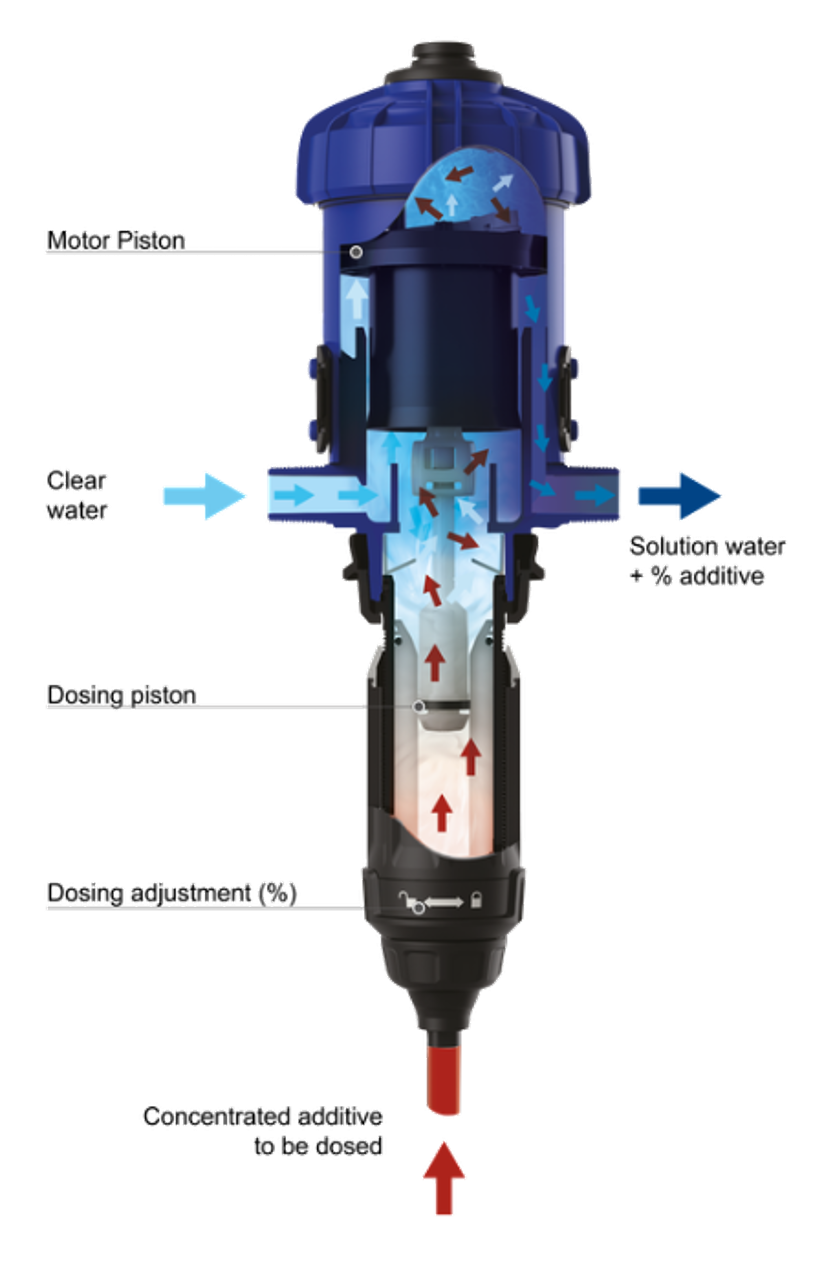

Two pistons, one pump. A water-driven hydraulic motor piston moves back and forth under line water pressure alone, and a system of valves reverses its stroke automatically. That motion directly drives a second, mechanically linked dosing piston, which draws in the concentrate on its suction stroke and injects it into the passing water on its discharge stroke. Because both pistons move on the same shaft, the volume of concentrate injected is always a fixed, pre-set fraction of the volume of water flowing through the pump — no electronic flow meter, no controller, and no calibration required.
The result is dosing that is proportional by construction, not by control loop: if the water flow doubles, the dosage doubles with it; if the flow stops, dosing stops instantly. Mixing also happens inside the pump body, so the treated water leaves fully blended and ready to use.
Non-electric — powered entirely by water pressure and flow, ideal for remote sites and off-grid installations across Malaysia's plantations, farms and municipal networks
Purely mechanical proportional dosing — accuracy is built into the piston geometry, not reliant on sensors or software
Adjustable dosing ratio — manually set the dosing piston's stroke length to change the injection percentage, no measuring device needed
Seven dedicated product lines — Animal Health, Green, Water, Industry, Food & Hygiene, Expert and Generic, covering livestock medication through high-flow industrial chemical feed
Browse by Line
All Product Lines
Dosatron

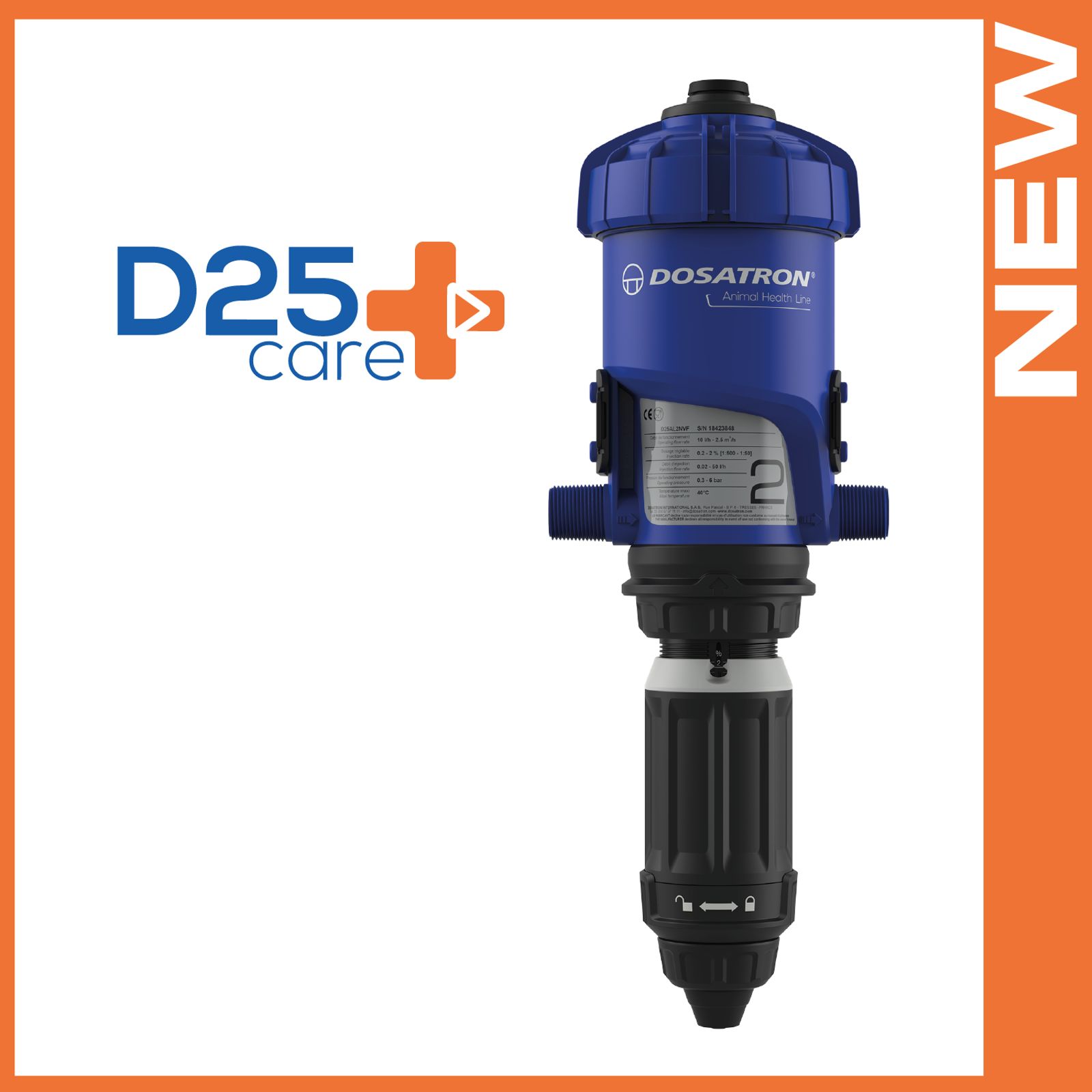

Animal Health Line
DIA4AL · D25AL-N · SD25AL5N · D9AL2 · D20AL2 · D6AL
Medicators and water-powered dosing pumps for administering medication, vaccines, feed additives, organic acids and biocides via drinking water in poultry, swine and cattle operations across Malaysia.
Dosatron

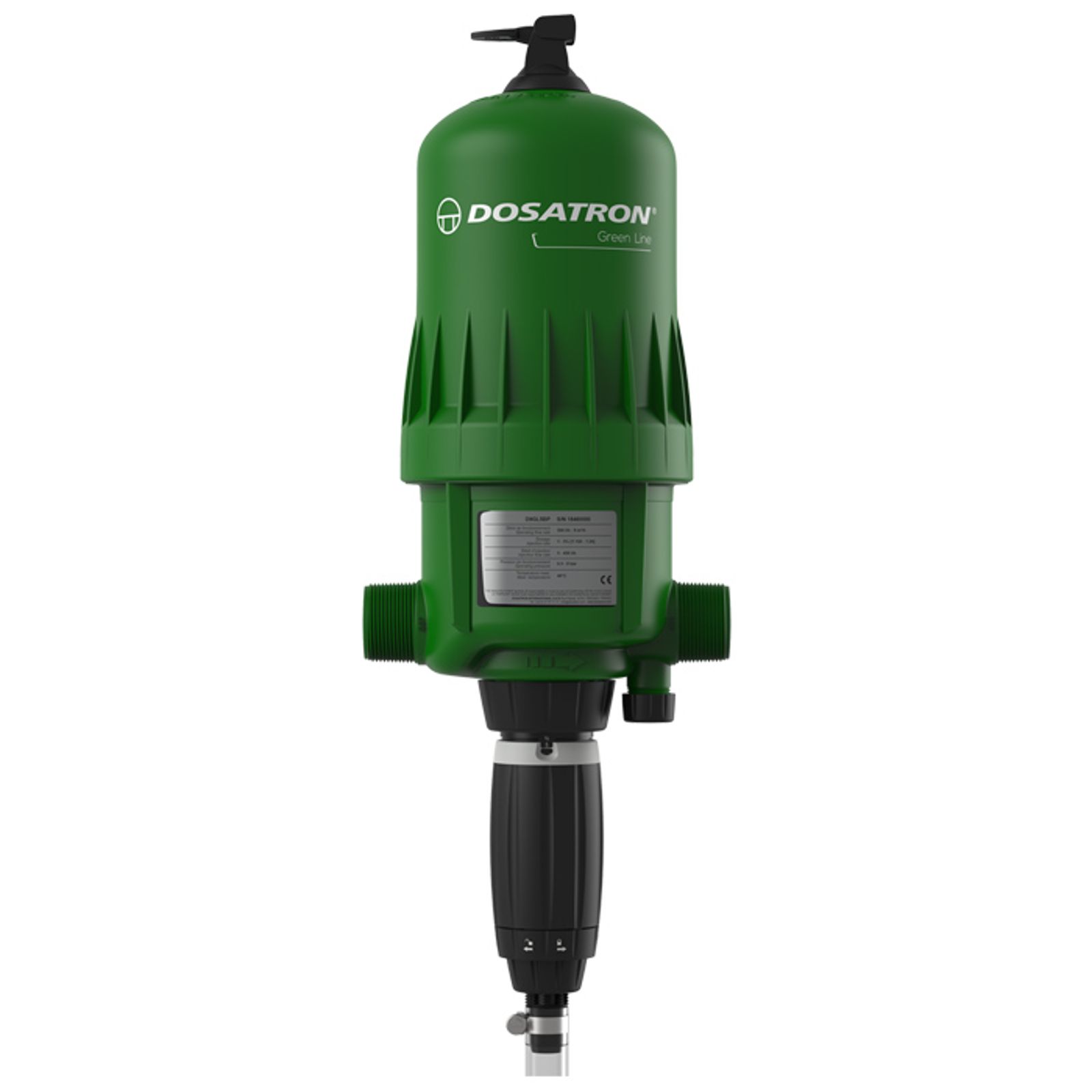

Green Line
D3GL · D6GL · D9GL · D20GL · D30GL · D90GL
Fertilizer injectors for fertigation in greenhouses, nurseries, orchards and open-field crops — precise nutrient dosing proportional to irrigation flow, with no calibration needed.
Dosatron
Water Line
D25WL · D3WL · D9WL · D20WL · D30WL
Chlorine and polymer dosing pumps for drinking water treatment, wastewater treatment and process water — several models ACS and NSF certified for potable water applications.
Dosatron

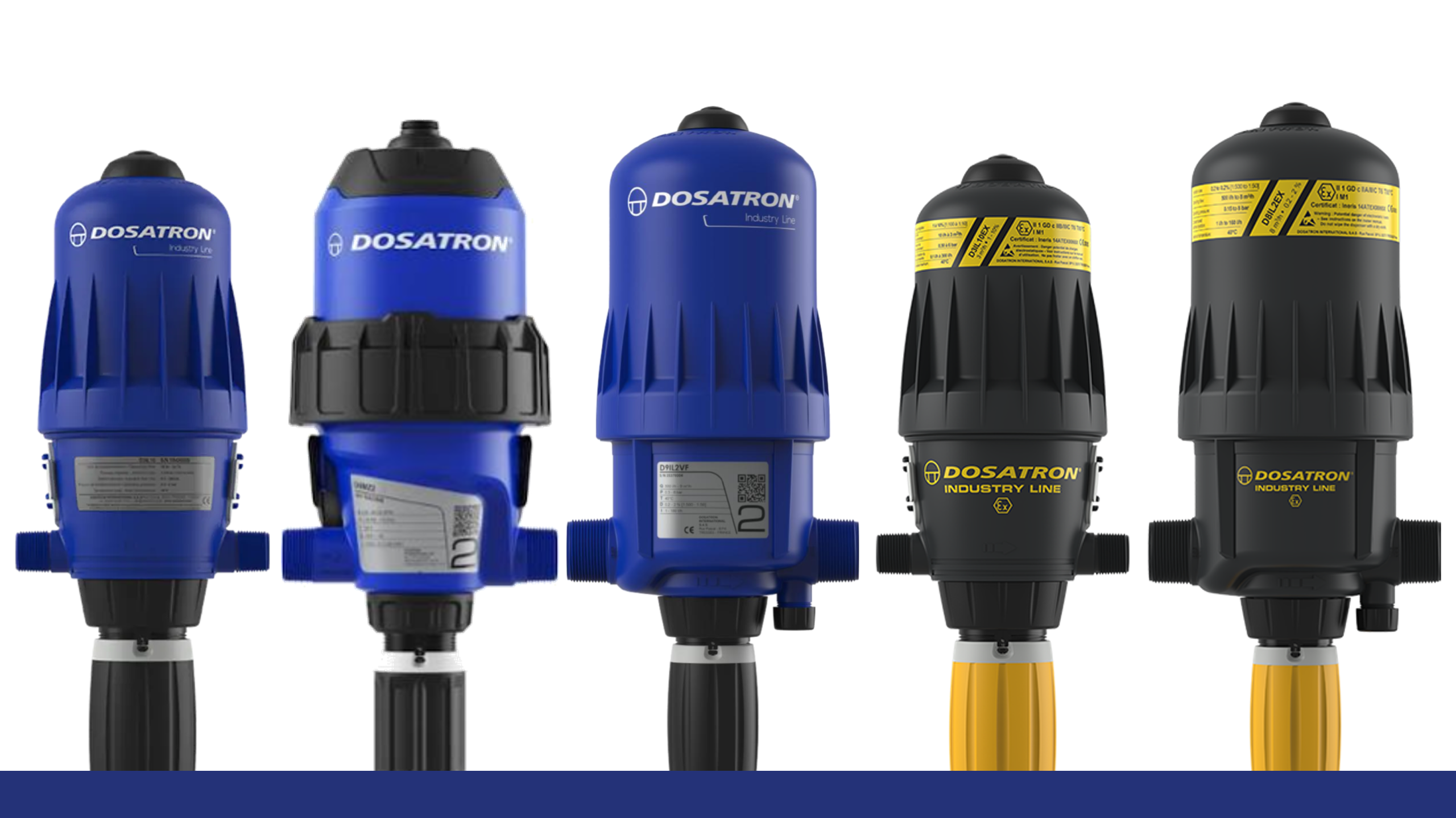

Industry Line
D3IL · D3IL EX · D6IL · D9IL · D8ILEX
6 to 8 bar chemical metering pumps for automotive, metalworking, graphic and general industrial dosing, including ATEX-certified models for hazardous environments.
Dosatron
Food & Hygiene Line
HU1 · D3TRE
Dosing units for centralized foam sanitation systems and high-temperature cleaning-in-place applications in food processing and hygiene installations.
Dosatron
Expert Dosing Pumps
D07RE PVDF · D25RE PVDF · D3RE PVDF · D3RE VF-K
PVDF-bodied dosing pumps engineered for aggressive, highly concentrated or abrasive chemicals — reinforced chemical resistance for the toughest dosing duties.
Dosatron
Generic Dosing Pumps
D07RE · D25RE · D3RE · D45RE · D8RE
The broadest range of general-purpose water-powered dosing pumps, covering injection rates from 0.03% to 25% across flow ranges from 0.7 to 8 m³/h.
