Systems & Solutions

Industrial Laundry Dosing System

Injecta chemical dosing systems for commercial and industrial laundries in Malaysia — from a single-washer venturi unit to a fully modular, remotely managed multi-washer platform with proof of dosing.

(function () { const obs = new IntersectionObserver(entries => { entries.forEach(e => { if (e.isIntersecting) { e.target.classList.add('is-visible'); obs.unobserve(e.target); } }); }, { threshold: 0.08 }); document.querySelectorAll('.reveal').forEach(el => obs.observe(el)); })();
Industrial Laundry Dosing System — Autoflo Technology .product-top { padding: 90px 0; background: var(--bg); border-bottom: 1px solid var(--border); } .product-top-grid { display: grid; grid-template-columns: 1fr 1fr; gap: 72px; align-items: start; } .gallery-main { border-radius: 12px; overflow: hidden; aspect-ratio: 4/5; background: var(--bg-alt); border: 1px solid var(--border); position: relative; } .gallery-main img { width: 100%; height: 100%; object-fit: contain; transition: opacity 0.35s ease; } .gallery-thumbs { display: flex; gap: 10px; margin-top: 12px; flex-wrap: wrap; } .gallery-thumb { width: 72px; height: 72px; border-radius: 6px; overflow: hidden; border: 2px solid transparent; cursor: pointer; background: var(--bg-alt); transition: border-color 0.2s, transform 0.2s; flex-shrink: 0; } .gallery-thumb img { width: 100%; height: 100%; object-fit: contain; } .gallery-thumb:hover { border-color: var(--accent); transform: translateY(-2px); } .gallery-thumb.active { border-color: var(--accent); } .product-info { display: flex; flex-direction: column; } .product-info-label { font-size: 14px; font-weight: 600; letter-spacing: 0.05em; color: var(--accent); text-transform: uppercase; display: inline-block; margin-bottom: 8px; } .product-name { font-family: 'Outfit', system-ui, sans-serif; font-size: clamp(32px, 4vw, 40px); font-weight: 600; color: var(--text); letter-spacing: -0.02em; line-height: 1.15; margin-top: 4px; } .product-info-desc { font-size: 17px; color: var(--muted); line-height: 1.7; margin-bottom: 24px; } .feature-list { display: flex; flex-direction: column; gap: 14px; margin-bottom: 32px; } .feature-item { display: flex; align-items: flex-start; gap: 12px; } .feature-check { width: 20px; height: 20px; border-radius: 50%; background: var(--accent-tint); border: 1px solid rgba(128,0,89,0.2); flex-shrink: 0; margin-top: 1px; display: flex; align-items: center; justify-content: center; } .feature-check svg { width: 11px; height: 11px; color: var(--accent); } .feature-item p { font-size: 14px; color: var(--muted); line-height: 1.6; } .feature-item strong { color: var(--text); font-weight: 600; } .product-cta-row { display: flex; gap: 12px; flex-wrap: wrap; margin-top: 4px; } @media (max-width: 900px) { .product-top-grid { grid-template-columns: 1fr; gap: 40px; } }
Category Overview

Industrial Laundry Dosing System in Malaysia, Built on Injecta

A commercial or industrial laundry lives and dies by dosing consistency — too little detergent and linen doesn't come clean, too much and chemical cost climbs with every wash cycle. Manual dosing from drums is slow, wasteful and impossible to audit, which is why most laundries in Malaysia are moving to an automated, machine-triggered dosing system instead.

Autoflo Technology supplies the full Injecta laundry dosing range, from a single-washer venturi unit for a small on-premise laundry (OPL) right up to a modular, multi-washer platform for a commercial laundry plant. Every configuration triggers automatically from the washer's own wash, rinse and pre-wash signals, so dosing happens exactly when it's needed and nowhere else.

Automatic wash-cycle triggering — dosing fires directly off the washer's pre-wash, main-wash and rinse signals, with no operator involvement once a formula is set

Accurate, provable dosing — flow-metered models offer Proof of Dosing (POD), confirming the exact quantity delivered regardless of tubing wear or chemical viscosity

Remote monitoring and control — a built-in web server or the Injecta Remote portal gives access to formulas, consumption reports and alarms from any phone, tablet or PC

Scales with the laundry — the same modular platform grows from one washer and a few chemicals to a dozen washers, up to 16 chemicals and 100 washing formulas

(function () { document.querySelectorAll('#afGalleryThumbs .gallery-thumb').forEach(thumb => { thumb.addEventListener('click', () => { document.getElementById('afGalleryMainImg').src = thumb.dataset.src; document.querySelectorAll('#afGalleryThumbs .gallery-thumb').forEach(t => t.classList.remove('active')); thumb.classList.add('active'); }); }); const obs = new IntersectionObserver(entries => { entries.forEach(e => { if (e.isIntersecting) { e.target.classList.add('is-visible'); obs.unobserve(e.target); } }); }, { threshold: 0.08 }); document.querySelectorAll('.reveal').forEach(el => obs.observe(el)); })();
Industrial Laundry Dosing System — Autoflo Technology .section-range { padding: 80px 0; background: var(--bg-section); } .range-header { display: flex; align-items: flex-end; justify-content: space-between; gap: 24px; margin-bottom: 48px; } .range-label { font-size: 14px; font-weight: 600; letter-spacing: 0.05em; color: var(--accent); text-transform: uppercase; display: inline-block; margin-bottom: 8px; } .range-title { font-family: 'Outfit', sans-serif; font-size: 32px; font-weight: 700; color: var(--text); letter-spacing: -0.02em; } .type-grid { display: grid; grid-template-columns: repeat(3, 1fr); gap: 20px; } .type-tile { background: var(--bg); border: 1px solid var(--border); border-radius: 12px; overflow: hidden; display: flex; flex-direction: column; transition: border-color 0.3s, box-shadow 0.3s, transform 0.3s; } .type-tile:hover { border-color: rgba(128,0,89,0.3); box-shadow: 0 12px 32px rgba(0,0,0,0.08); transform: translateY(-4px); } .type-tile-image { aspect-ratio: 4/3; overflow: hidden; background: var(--bg-alt); position: relative; display: flex; align-items: center; justify-content: center; } .type-tile-image img { width: 100%; height: 100%; object-fit: contain; transition: transform 0.5s ease; } .type-tile:hover .type-tile-image img { transform: scale(1.05); } .type-tile-num { position: absolute; top: 12px; left: 12px; background: var(--cta-bg); color: var(--cta-text); font-size: 10px; font-weight: 700; letter-spacing: 0.08em; text-transform: uppercase; padding: 4px 10px; border-radius: 3px; } .type-tile-body { padding: 20px; display: flex; flex-direction: column; flex: 1; gap: 8px; } .type-tile-tag { font-size: 11px; font-weight: 700; letter-spacing: 0.08em; text-transform: uppercase; color: var(--accent); } .type-tile-name { font-family: 'Outfit', system-ui, sans-serif; font-size: 17px; font-weight: 700; color: var(--text); line-height: 1.3; letter-spacing: -0.01em; flex: 1; } .type-tile-desc { font-size: 13px; color: var(--muted); line-height: 1.6; flex: 1; } .type-tile-specs { display: flex; flex-direction: column; gap: 5px; margin: 2px 0 4px; } .type-tile-spec { font-size: 12px; color: var(--muted); line-height: 1.5; padding-left: 13px; position: relative; } .type-tile-spec::before { content: ''; width: 4px; height: 4px; border-radius: 50%; background: var(--accent); position: absolute; left: 0; top: 7px; } .type-tile-body .btn-ghost { align-self: flex-start; margin-top: 4px; } .btn-ghost { background: transparent; color: var(--accent); border: 1px solid rgba(128,0,89,0.25); padding: 10px 20px; font-size: 13px; font-weight: 600; border-radius: 4px; display: inline-flex; align-items: center; gap: 6px; transition: all 0.2s; } .btn-ghost:hover { background: var(--accent-tint); border-color: var(--accent); } .stagger.is-visible > *:nth-child(1) { opacity:1; transform:none; transition-delay:0.06s; } .stagger.is-visible > *:nth-child(2) { opacity:1; transform:none; transition-delay:0.14s; } .stagger.is-visible > *:nth-child(3) { opacity:1; transform:none; transition-delay:0.22s; } @media (max-width: 900px) { .type-grid { grid-template-columns: 1fr; } }
Browse by System

Industrial Laundry Dosing System Range

3 System Types
Synergy Flow Venturi Dosing SystemType 01
On-Premise Laundry

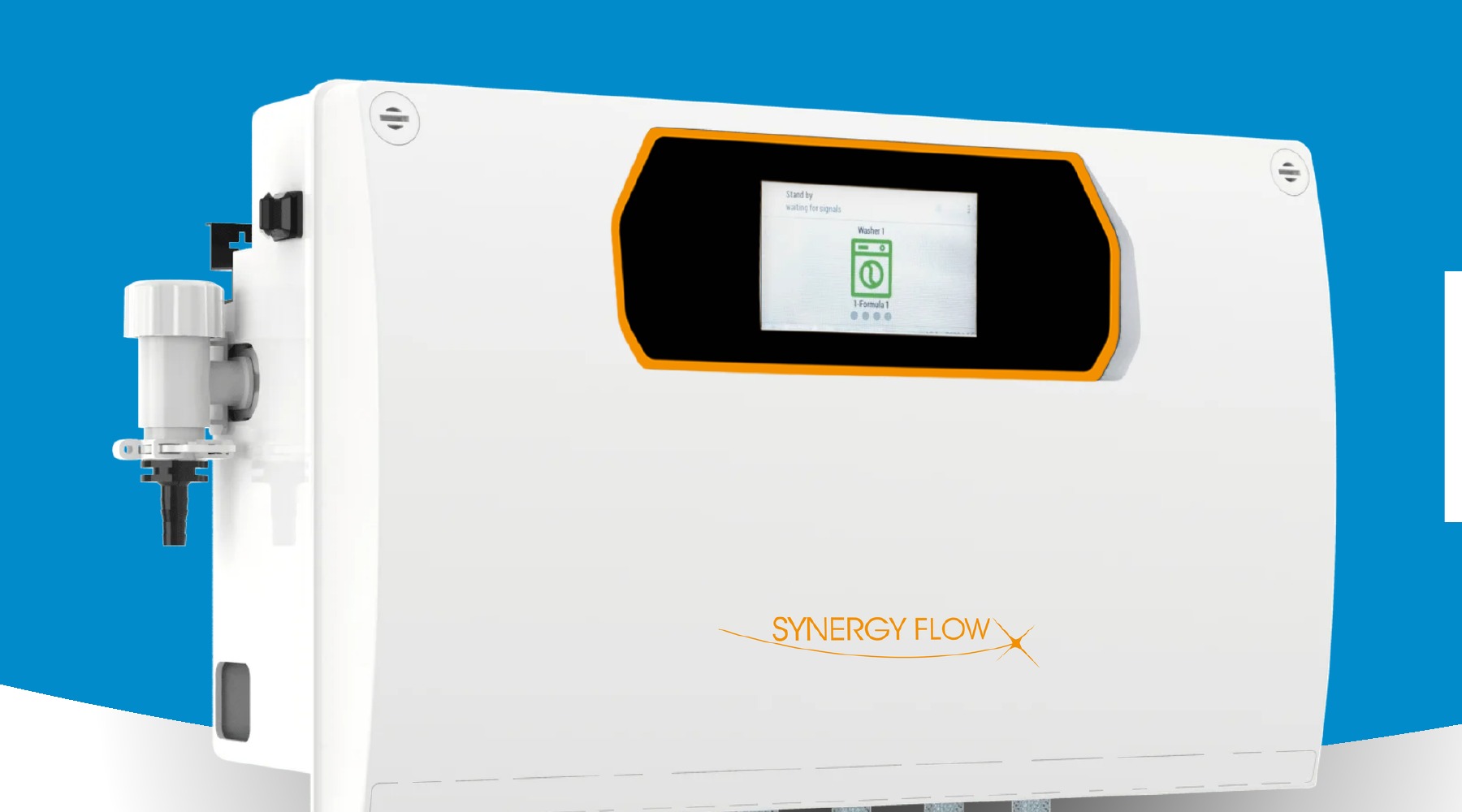

Synergy Flow (Venturi)

A compact venturi-based dosing system for a single on-premise laundry, with wireless setup and no dedicated dosing pump to maintain.

Venturi activation from 0.5 bar water inlet pressure
4.5″ touchscreen with Bluetooth control via the Injecta Hub App
Four predefined dosing stages, four inlets, optional WiFi/IoT
View Models
Synergy Next Peristaltic Dosing SystemType 02
Industrial Laundry

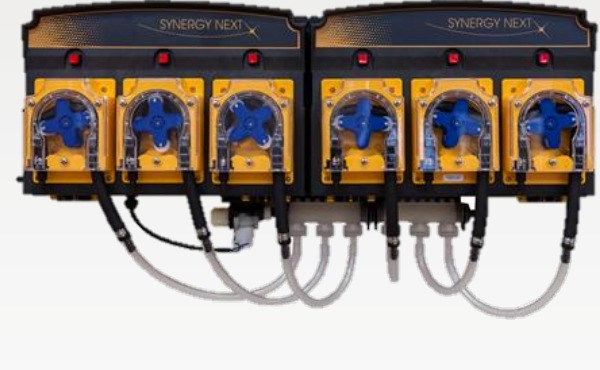

Synergy Next (Peristaltic)

A peristaltic multi-pump dosing system that scales from a small three-pump unit to a large six-pump array as chemical count and flow rate grow.

3 to 7 pumps, flow rate from 18 L/h up to 120 L/h
40 programmable formulas with optional console or SinWin software
Relay and fully programmable modes, wide range of tube materials
View Models
Rainbow Series Laundry Dosing SystemType 03
Commercial Laundry Plant

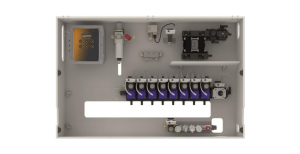

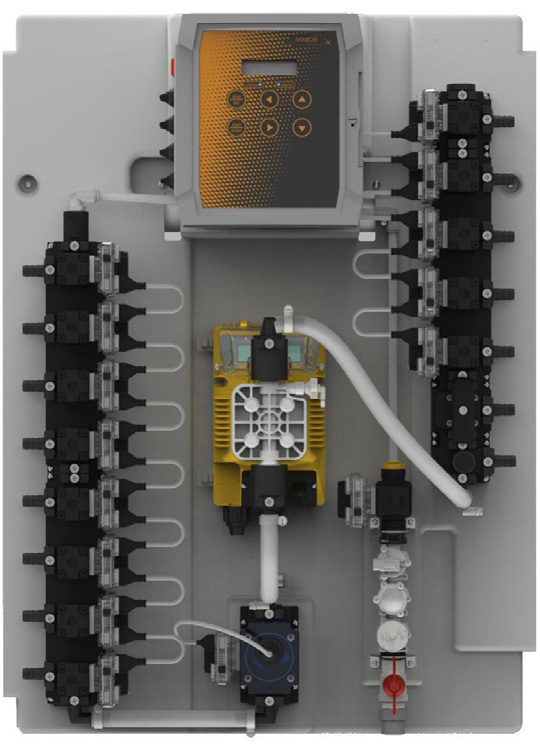

Rainbow Series

Injecta's flagship modular platform for commercial laundry plants — peristaltic, solenoid or pneumatic dosing configured around your washer fleet, with full remote management.

Modular up to 12 washers, 16 chemicals and 100 washing formulas
Proof of Dosing (POD) flow metering and hygiene temperature monitoring
Web server interface with remote management from any device
View Models
