Sugar Leak Detection System

Continuous fluorescence-based monitoring of boiler condensate for sugar mills — catching leaks in under a minute instead of the hours it takes with hourly manual sampling.

(function () { const obs = new IntersectionObserver(entries => { entries.forEach(e => { if (e.isIntersecting) { e.target.classList.add('is-visible'); obs.unobserve(e.target); } }); }, { threshold: 0.08 }); document.querySelectorAll('.reveal').forEach(el => obs.observe(el)); })();
Sugar Leak Detection System — Autoflo Technology .product-top { padding: 90px 0; background: var(--bg); border-bottom: 1px solid var(--border); } .product-top-grid { display: grid; grid-template-columns: 1fr 1fr; gap: 72px; align-items: start; } .gallery-main { border-radius: 12px; overflow: hidden; aspect-ratio: 4/5; background: var(--bg-alt); border: 1px solid var(--border); position: relative; } .gallery-main img { width: 100%; height: 100%; object-fit: contain; transition: opacity 0.35s ease; } .gallery-thumbs { display: flex; gap: 10px; margin-top: 12px; flex-wrap: wrap; } .gallery-thumb { width: 72px; height: 72px; border-radius: 6px; overflow: hidden; border: 2px solid transparent; cursor: pointer; background: var(--bg-alt); transition: border-color 0.2s, transform 0.2s; flex-shrink: 0; } .gallery-thumb img { width: 100%; height: 100%; object-fit: contain; } .gallery-thumb:hover { border-color: var(--accent); transform: translateY(-2px); } .gallery-thumb.active { border-color: var(--accent); } .product-info { display: flex; flex-direction: column; } .product-info-label { font-size: 14px; font-weight: 600; letter-spacing: 0.05em; color: var(--accent); text-transform: uppercase; display: inline-block; margin-bottom: 8px; } .product-name { font-family: 'Outfit', system-ui, sans-serif; font-size: clamp(32px, 4vw, 40px); font-weight: 600; color: var(--text); letter-spacing: -0.02em; line-height: 1.15; margin-top: 4px; } .product-info-desc { font-size: 17px; color: var(--muted); line-height: 1.7; margin-bottom: 24px; } .feature-list { display: flex; flex-direction: column; gap: 14px; margin-bottom: 32px; } .feature-item { display: flex; align-items: flex-start; gap: 12px; } .feature-check { width: 20px; height: 20px; border-radius: 50%; background: var(--accent-tint); border: 1px solid rgba(128,0,89,0.2); flex-shrink: 0; margin-top: 1px; display: flex; align-items: center; justify-content: center; } .feature-check svg { width: 11px; height: 11px; color: var(--accent); } .feature-item p { font-size: 14px; color: var(--muted); line-height: 1.6; } .feature-item strong { color: var(--text); font-weight: 600; } .product-cta-row { display: flex; gap: 12px; flex-wrap: wrap; margin-top: 4px; } @media (max-width: 900px) { .product-top-grid { grid-template-columns: 1fr; gap: 40px; } }
Sugar Leak Detection System
Category Overview

Continuous Fluorescence-Based Sugar Leakage Detection

Sugar mills have long relied on workers manually sampling condensate water hourly to catch sugar leaks before they become costly accidents. It's labor-intensive, demands high precision, and still offers limited detection sensitivity — by the time a leak is confirmed, hours of product and steam may already be lost.

The Pyxis HW-200S uses fluorescence technology to continuously monitor boiler condensate, detecting the natural trace fluorescent components in sugar syrup. Compared to conductivity, total organic carbon (TOC) or flame photometry methods, fluorescence detection combines the highest sensitivity with a sub-minute response at a moderate running cost. In a real-world installation at a long-established U.S. sugar manufacturer, the system caught a leak on its third day of operation — a leak that manual monitoring would have taken a full day to confirm.

Very high sensitivity, fast response — the signal reaches 90% response in under a minute, catching leaks days before hourly manual sampling would

Automated fault response — a 4-20mA or RS-485 signal to the control room can trigger countermeasures like dosing a pH regulator or rapidly replacing water

Remote cloud monitoring — an optional 4G smart gateway streams data to the cloud, viewable remotely from mobile or PC

Built for the mill environment — 100% stainless steel 304 construction with a built-in cooler and pressure/temperature protection for continuous duty

Request Engineering Quote
(function () { document.querySelectorAll('#afGalleryThumbs .gallery-thumb').forEach(thumb => { thumb.addEventListener('click', () => { document.getElementById('afGalleryMainImg').src = thumb.dataset.src; document.querySelectorAll('#afGalleryThumbs .gallery-thumb').forEach(t => t.classList.remove('active')); thumb.classList.add('active'); }); }); const obs = new IntersectionObserver(entries => { entries.forEach(e => { if (e.isIntersecting) { e.target.classList.add('is-visible'); obs.unobserve(e.target); } }); }, { threshold: 0.08 }); document.querySelectorAll('.reveal').forEach(el => obs.observe(el)); })();
Sugar Leak Detection System — Autoflo Technology .section-range { padding: 80px 0; background: var(--bg-section); } .range-header { margin-bottom: 48px; } .range-label { font-size: 14px; font-weight: 600; letter-spacing: 0.05em; color: var(--accent); text-transform: uppercase; display: inline-block; margin-bottom: 8px; } .range-title { font-family: 'Outfit', sans-serif; font-size: 32px; font-weight: 700; color: var(--text); letter-spacing: -0.02em; max-width: 760px; } .range-sub { font-size: 15px; color: var(--muted); margin-top: 10px; max-width: 700px; line-height: 1.6; } .component-grid { display: grid; grid-template-columns: repeat(3, 1fr); gap: 20px; } .component-tile { background: var(--bg); border: 1px solid var(--border); border-radius: 12px; overflow: hidden; display: flex; flex-direction: column; transition: border-color 0.3s, box-shadow 0.3s, transform 0.3s; } .component-tile:hover { border-color: rgba(128,0,89,0.3); box-shadow: 0 12px 32px rgba(0,0,0,0.08); transform: translateY(-4px); } .component-tile-image { aspect-ratio: 4/3; overflow: hidden; background: var(--bg-alt); position: relative; display: flex; align-items: center; justify-content: center; } .component-tile-image img { width: 100%; height: 100%; object-fit: contain; transition: transform 0.5s ease; } .component-tile:hover .component-tile-image img { transform: scale(1.05); } .component-tile-num { position: absolute; top: 12px; left: 12px; background: var(--cta-bg); color: var(--cta-text); font-size: 10px; font-weight: 700; letter-spacing: 0.08em; text-transform: uppercase; padding: 4px 10px; border-radius: 3px; } .component-tile-body { padding: 22px; display: flex; flex-direction: column; flex: 1; gap: 10px; } .component-tile-tag { font-size: 11px; font-weight: 700; letter-spacing: 0.08em; text-transform: uppercase; color: var(--accent); } .component-tile-name { font-family: 'Outfit', system-ui, sans-serif; font-size: 18px; font-weight: 700; color: var(--text); line-height: 1.3; letter-spacing: -0.01em; } .component-specs { display: flex; flex-direction: column; gap: 8px; margin-top: 4px; } .component-spec { display: flex; align-items: flex-start; gap: 8px; font-size: 13px; color: var(--muted); line-height: 1.55; } .component-spec::before { content: ''; width: 5px; height: 5px; border-radius: 50%; background: var(--accent); flex-shrink: 0; margin-top: 7px; } .component-spec strong { color: var(--text); font-weight: 600; } .range-footer { margin-top: 40px; display: flex; align-items: center; gap: 16px; flex-wrap: wrap; } .spec-strip { margin-top: 48px; border-top: 1px solid var(--border); padding-top: 32px; display: grid; grid-template-columns: repeat(4, 1fr); gap: 24px; } .spec-item { display: flex; flex-direction: column; gap: 4px; } .spec-item-label { font-size: 11px; font-weight: 700; letter-spacing: 0.06em; text-transform: uppercase; color: var(--muted); } .spec-item-value { font-size: 15px; font-weight: 600; color: var(--text); } .stagger.is-visible > *:nth-child(1) { opacity:1; transform:none; transition-delay:0.06s; } .stagger.is-visible > *:nth-child(2) { opacity:1; transform:none; transition-delay:0.14s; } .stagger.is-visible > *:nth-child(3) { opacity:1; transform:none; transition-delay:0.22s; } @media (max-width: 900px) { .component-grid { grid-template-columns: 1fr; } .spec-strip { grid-template-columns: repeat(2, 1fr); } }
System Architecture

What's Included in the HW-200S Sugar Leak Detection System

Typical application: the sugar industry, including sucrose, beet sugar and refined sugar. The system is built from three parts, plus an optional accessory.

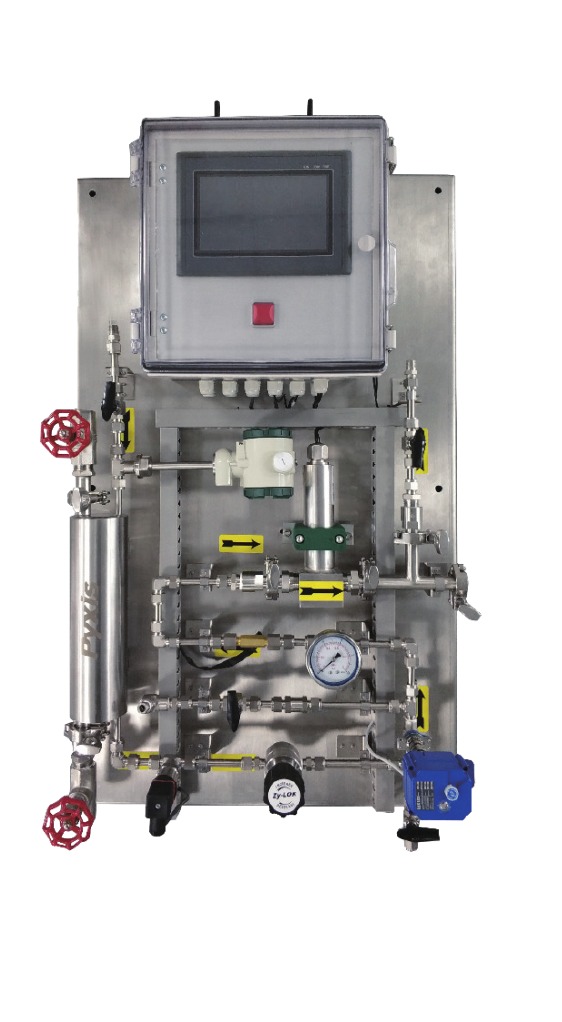

HW-200S Monitoring SystemPart 01
Online Monitoring System

HW-200S Fluorescence Monitoring System

Continuous online monitoring with on-site calibration for local conditions
Built-in cooler and pressure/temperature protection for easy installation
100% stainless steel 304 construction — heat-resistant and durable
Outputs 4-20mA analog or RS-485 digital signal, with optional 4G gateway for cloud access

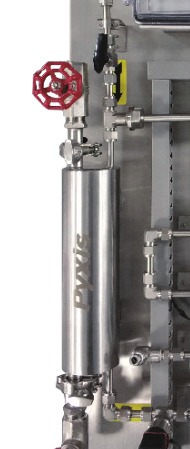

HW-201 Detection ProbePart 02
Detection Probe

HW-201 Fluorescent Detection Probe

SS304 and quartz glass construction, rated for boiler condensate conditions
Continuously samples condensate and detects trace fluorescent components in real time
Feeds the HW-200S controller for immediate signal processing and alarming
HW-400 Handheld Analyzer and ControlsPart 03
Portable Inspection

HW-400 Handheld Micro-Sugar Analyzer

Portable analyzer for on-site inspection and troubleshooting without a full online installation
Pairs with the optional MA-WB 7-core Bluetooth communication converter
Useful for spot-checking additional sample points across the mill
Response Time90% in <1 min
Power110-240 VAC, ~20W
Sample Conditions0-40°C, up to 120 psi
Warranty1 Year
Request Engineering Quote
(function () { const obs = new IntersectionObserver(entries => { entries.forEach(e => { if (e.isIntersecting) { e.target.classList.add('is-visible'); obs.unobserve(e.target); } }); }, { threshold: 0.08 }); document.querySelectorAll('.reveal, .stagger').forEach(el => obs.observe(el)); })();
Sugar Leak Detection System — Autoflo Technology .footer-cta { background: var(--dark-bg); padding: 60px 0; position: relative; overflow: hidden; } .footer-cta::before { content: ''; position: absolute; inset: 0; background: radial-gradient(ellipse 50% 100% at 20% 50%, rgba(128,0,89,0.45) 0%, transparent 70%); pointer-events: none; } .footer-cta-box { display: flex; align-items: center; justify-content: space-between; gap: 48px; background: rgba(255,255,255,0.06); border: 1px solid rgba(255,255,255,0.1); border-radius: 16px; padding: 48px 56px; position: relative; z-index: 2; backdrop-filter: blur(8px); -webkit-backdrop-filter: blur(8px); } .footer-cta-label { font-size: 13px; font-weight: 600; letter-spacing: 0.1em; text-transform: uppercase; color: var(--cta-bg); margin-bottom: 14px; display: block; } .footer-cta h2 { font-family: 'Outfit', sans-serif; font-size: clamp(22px, 3vw, 34px); font-weight: 700; color: #fff; line-height: 1.25; } .footer-cta p { font-size: 15px; color: rgba(255,255,255,0.55); margin-top: 8px; } .footer-cta-btns { display: flex; gap: 12px; flex-shrink: 0; } @media (max-width: 900px) { .footer-cta-box { flex-direction: column; align-items: flex-start; padding: 36px 28px; } .footer-cta-btns { flex-direction: column; width: 100%; } }
Let's Talk Sugar Leak Detection

Ready to Catch Leaks Before They Cost You?

Our engineers are ready to evaluate your requirements and recommend the right configuration for your mill.
