Control Technologies · Pyxis Level Sensors

Level Sensors

Non-contact radar and ultrasonic level sensing for tanks, sumps and remote sites across Malaysia — from wired 4–20mA transmitters to solar-friendly IoT radar and handheld inventory scanners, all configurable through the uPyxis app.

(function () { const obs = new IntersectionObserver(entries => { entries.forEach(e => { if (e.isIntersecting) { e.target.classList.add('is-visible'); obs.unobserve(e.target); } }); }, { threshold: 0.08 }); document.querySelectorAll('.reveal, .stagger').forEach(el => obs.observe(el)); })();
Level Sensors | Autoflo Technology /* Section-specific only — shared reset, fonts, :root tokens, .btn, .container, .reveal/.stagger are loaded once via the Hero section and cascade here. */ .cat-intro { padding: 100px 0; background: var(--bg); border-bottom: 1px solid var(--border); } .cat-intro-grid { display: grid; grid-template-columns: 1fr 1fr; gap: 64px; align-items: center; } .cat-intro-image { position: relative; border-radius: 12px; overflow: hidden; aspect-ratio: 4 / 5; background: var(--bg-alt); box-shadow: 0 24px 48px rgba(0,0,0,0.08); } .cat-intro-image img { width: 100%; height: 100%; object-fit: cover; transition: transform 0.5s; } .cat-intro-image:hover img { transform: scale(1.03); } .cat-intro-badge { position: absolute; top: 16px; left: 16px; background: var(--dark-bg); color: #fff; font-size: 11px; font-weight: 600; letter-spacing: 0.08em; text-transform: uppercase; padding: 5px 12px; border-radius: 4px; border: 1px solid rgba(255,255,255,0.15); } .cat-intro-label { font-size: 14px; font-weight: 600; letter-spacing: 0.05em; color: var(--accent); text-transform: uppercase; display: inline-block; margin-bottom: 8px; } .cat-intro-title { font-family: 'Outfit', system-ui, sans-serif; font-size: clamp(32px, 4vw, 40px); font-weight: 600; color: var(--text); letter-spacing: -0.02em; line-height: 1.15; margin-top: 4px; } .cat-intro-desc { font-size: 17px; color: var(--muted); line-height: 1.7; margin-bottom: 24px; } .feature-list { display: flex; flex-direction: column; gap: 12px; margin-bottom: 32px; } .feature-item { display: flex; align-items: flex-start; gap: 12px; } .feature-check { width: 20px; height: 20px; border-radius: 50%; background: var(--accent-tint); border: 1px solid rgba(128,0,89,0.2); flex-shrink: 0; margin-top: 1px; display: flex; align-items: center; justify-content: center; } .feature-check svg { width: 11px; height: 11px; color: var(--accent); } .feature-item p { font-size: 15px; color: var(--muted); line-height: 1.6; } .feature-item strong { color: var(--text); font-weight: 600; } @media (max-width: 900px) { .cat-intro-grid { grid-template-columns: 1fr; gap: 40px; } }
Pyxis Level Sensors
Pyxis Level Sensing Range
Level Sensors

Tank, Sump & Remote-Site Level Monitoring Without Contact

Pyxis level sensors cover every deployment scenario — wired radar and ultrasonic transmitters for fixed tank installations, an IoT cloud-connected radar for unmanned or off-grid sites, and a handheld personal radar scanner for spot-checking multiple containers in the field. All models are non-contact, resist corrosive and scaling liquids, and configure wirelessly through the uPyxis mobile and desktop app.

Non-contact sensing — W-band FMCW radar and ultrasonic technologies avoid fouling from dirty, sticky or scaling liquids

Wired and wireless options — 4–20mA/RS-485 transmitters, LoRa long-range radio, and NB-IoT/Cat-M1 cloud connectivity

Range up to 15m — from compact 2.7m ultrasonic tanks to 15m radar in large storage vessels and remote reservoirs

uPyxis app configuration — Bluetooth 5.0 wireless setup, diagnostics and firmware updates across the entire range

Request Engineering Quote
(function () { const obs = new IntersectionObserver(entries => { entries.forEach(e => { if (e.isIntersecting) { e.target.classList.add('is-visible'); obs.unobserve(e.target); } }); }, { threshold: 0.08 }); document.querySelectorAll('.reveal, .stagger').forEach(el => obs.observe(el)); })();
Level Sensors | Autoflo Technology /* Section-specific only — shared reset, fonts, :root tokens, .btn, .container are loaded once via the Hero section and cascade here. */ .context-strip { background: var(--dark-bg); padding: 0; border-bottom: 1px solid rgba(255,255,255,0.06); } .context-strip-inner { display: flex; align-items: center; justify-content: space-between; gap: 24px; padding: 20px 0; flex-wrap: wrap; } .context-strip-left { display: flex; align-items: center; gap: 16px; } .context-count { font-family: 'Outfit', sans-serif; font-size: 28px; font-weight: 800; color: #fff; line-height: 1; } .context-label { font-size: 13px; color: rgba(255,255,255,0.5); font-weight: 500; } .context-divider { width: 1px; height: 32px; background: rgba(255,255,255,0.15); } .context-cats { display: flex; align-items: center; gap: 8px; flex-wrap: wrap; } .context-cat-badge { font-size: 11px; font-weight: 600; letter-spacing: 0.06em; text-transform: uppercase; color: var(--cta-bg); background: rgba(254,190,79,0.1); border: 1px solid rgba(254,190,79,0.2); padding: 4px 10px; border-radius: 3px; } @media (max-width: 900px) { .context-strip-inner { flex-direction: column; align-items: flex-start; gap: 12px; } }
5
Sensor Models
Cloud IoT Radar Wired Radar LoRa Radar Ultrasonic Handheld Radar
Request Engineering Quote
Level Sensors | Autoflo Technology /* Section-specific only — shared reset, fonts, :root tokens, .btn, .container, .reveal/.stagger are loaded once via the Hero section and cascade here. */ .product-grid-section { padding: 64px 0 100px; background: var(--bg-section); } .grid-header { display: flex; align-items: flex-end; justify-content: space-between; gap: 24px; margin-bottom: 32px; } .grid-label { font-size: 14px; font-weight: 600; letter-spacing: 0.05em; color: var(--accent); text-transform: uppercase; display: inline-block; margin-bottom: 8px; } .grid-title { font-family: 'Outfit', sans-serif; font-size: 32px; font-weight: 700; color: var(--text); letter-spacing: -0.02em; } .grid-count-badge { font-size: 13px; font-weight: 700; color: var(--accent); background: var(--accent-tint); border: 1px solid rgba(128,0,89,0.15); padding: 6px 14px; border-radius: 4px; white-space: nowrap; } .filter-bar { display: flex; gap: 8px; margin-bottom: 40px; flex-wrap: wrap; align-items: center; } .product-cards { display: grid; grid-template-columns: repeat(3, 1fr); gap: 20px; } .product-card { background: var(--bg); border: 1px solid var(--border); border-radius: 12px; overflow: hidden; display: flex; flex-direction: column; transition: border-color 0.3s, box-shadow 0.3s, transform 0.3s; position: relative; } .product-card::before { content: ''; position: absolute; top: 0; left: 0; right: 0; height: 3px; background: linear-gradient(to right, var(--accent), var(--accent-dk)); opacity: 0; transition: opacity 0.3s; z-index: 1; } .product-card:hover { border-color: rgba(128,0,89,0.25); box-shadow: 0 12px 32px rgba(0,0,0,0.08); transform: translateY(-4px); } .product-card:hover::before { opacity: 1; } .product-card-image { aspect-ratio: 4/3; overflow: hidden; background: var(--bg-alt); position: relative; } .product-card-image img { width: 100%; height: 100%; object-fit: cover; transition: transform 0.5s; } .product-card:hover .product-card-image img { transform: scale(1.06); } .product-card-body { padding: 18px 18px 0; flex: 1; display: flex; flex-direction: column; gap: 6px; } .product-card-tag { font-size: 11px; font-weight: 700; letter-spacing: 0.08em; text-transform: uppercase; color: var(--accent); } .product-card-name { font-family: 'Outfit', sans-serif; font-size: 15px; font-weight: 700; color: var(--text); line-height: 1.3; letter-spacing: -0.01em; } .product-card-models { font-size: 11.5px; color: var(--accent); font-weight: 600; margin-top: 2px; } .product-card-desc { font-size: 12px; color: var(--muted); line-height: 1.6; flex: 1; margin-top: 4px; } .product-card-footer { padding: 14px 18px 18px; border-top: 1px solid var(--border); margin-top: 14px; } .product-card-cta { display: flex; align-items: center; justify-content: space-between; } .product-card-cta span { font-size: 13px; font-weight: 600; color: var(--accent); display: inline-flex; align-items: center; gap: 5px; transition: gap 0.2s; cursor: pointer; } .product-card:hover .product-card-cta span { gap: 9px; } .product-card-cta svg { width: 13px; height: 13px; } @media (max-width: 1024px) { .product-cards { grid-template-columns: repeat(2, 1fr); } } @media (max-width: 767px) { .product-cards { grid-template-columns: 1fr; gap: 12px; } .grid-header { flex-direction: column; align-items: flex-start; } }
Browse by Technology

All Level Sensors

5 Models

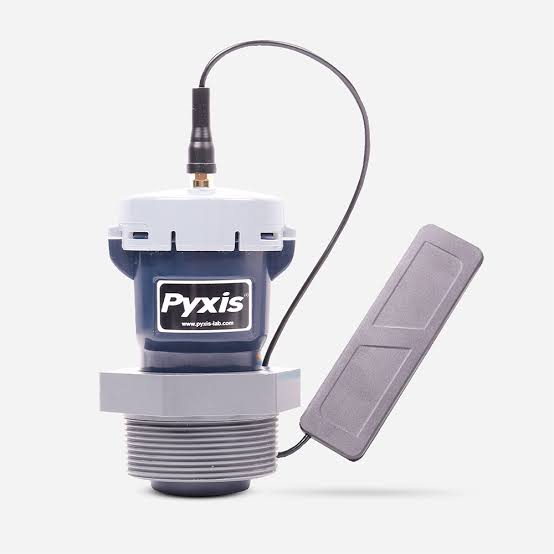

Pyxis Cloud-Based Radar Level Sensor CUT-1
Cloud IoT Radar
Pyxis Cloud Radar CUT-1
0–3m Range · NB-IoT/Cat-M1 · ATEX Zone 0

60GHz radar in an IP68 enclosure rated for submersion to 3m for 4 days. Multiband NB-IoT/Cat-M1 modem with 5-year battery life and 5-year cloud access — built for remote or unmanned sites with no power or wired comms.

Pyxis LSR-801 Radar Level Transmitter
Wired Radar
Pyxis LSR-801
Range: 0.05–15m · 4-20mA / RS-485

W-band FMCW non-contact radar with ±2mm accuracy, PVDF transducer and 24VDC power. Bluetooth 5.0 configuration via the uPyxis app. Suited to corrosive liquids in industrial, municipal and process tanks.

Pyxis LSR-801L Radar Level Transmitter with LoRa
LoRa Radar
Pyxis LSR-801L
Range: 0.05–15m · LoRa + 4-20mA/RS-485

Same 15m W-band radar platform as the LSR-801, with onboard LoRa (Long Range Radio) output for wireless transmission back to an LG-100 receiver — monitoring tanks without running signal cable.

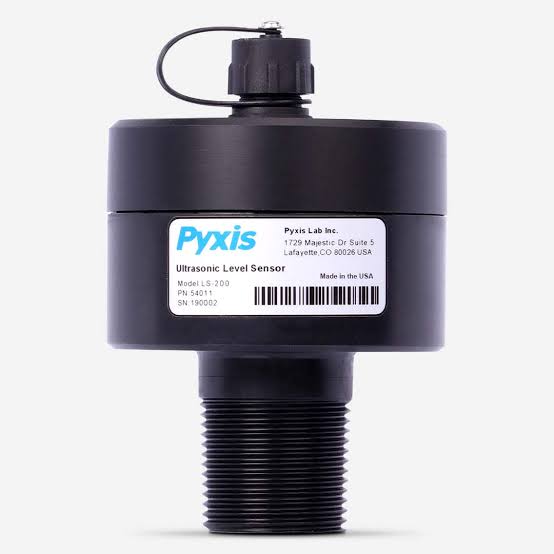

Pyxis LS-200 Ultrasonic Level Transmitter
Ultrasonic
Pyxis LS-200
Range: 0.1–2.7m · 4-20mA / RS-485

General-purpose ultrasonic level sensor that replaces float, conductance and pressure sensors that fail on dirty, sticky or scaling liquids. PVDF transducer with automatic temperature and EMI compensation.

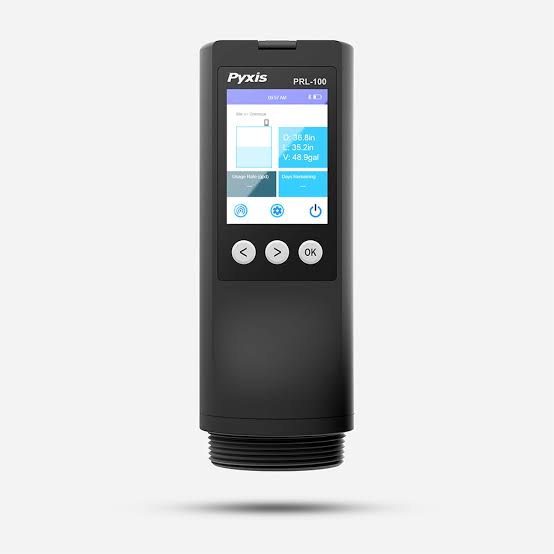

Pyxis PRL-100 Personal Radar Level Sensor
Handheld Radar
Pyxis PRL-100
Range: 0.1–15m · NFC Tag Scan + LoRa

Handheld W-band radar for field chemical inventory tracking across multiple containers — measures through plastic in under 10 seconds, with NFC tag ID scanning and usage-rate tracking via uPyxis.
