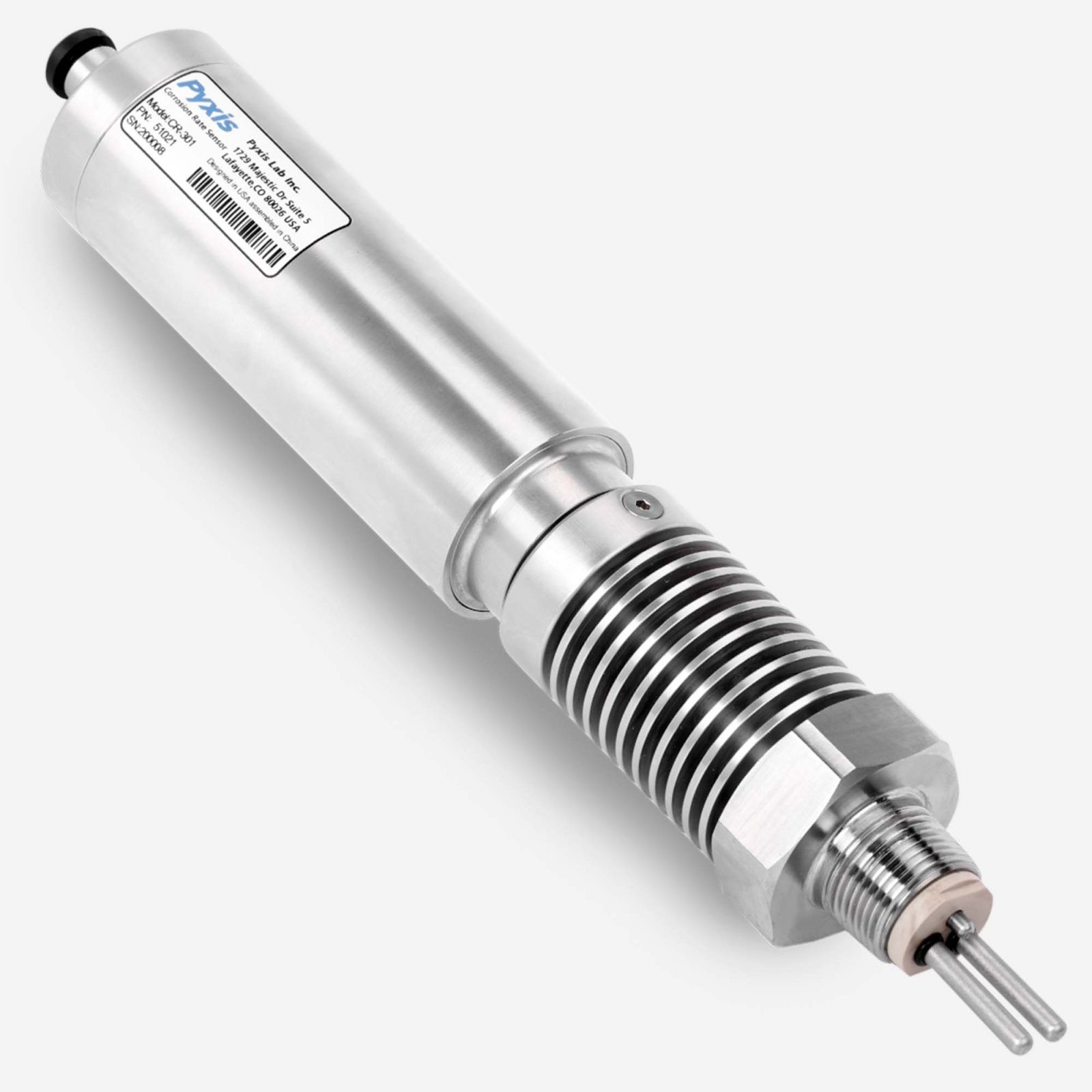

Pyxis CR-301-BSP High Temperature/Pressure Wired LPR Corrosion Sensor (3/4-inch BSPT)
High temperature/pressure (485psi/240°C) wired LPR corrosion sensor, 3/4-inch BSPT, 24V/2W powered. 4-20mA + RS-485 out, 8-pin.
Pyxis CR-301-BSP High Temperature/Pressure Wired LPR Corrosion Sensor (3/4-inch BSPT)
The Pyxis CR-301-BSP is a high temperature and pressure wired Linear Polarization Resistance (LPR) sensor for real-time corrosion rate monitoring, rated to 485psi and 240°C. It installs via a 3/4-inch BSPT thread, runs on 24V/2W power, and outputs data via 4-20mA analog and RS-485 through an 8-pin connector.
Description
The Pyxis CR-301-BSP is a high temperature and pressure wired Linear Polarization Resistance (LPR) corrosion sensor for real-time corrosion rate monitoring in cooling water and process systems. It is rated to 485psi and 240°C, making it suitable for hotter, higher-pressure process lines than standard corrosion sensors can handle.
The sensor installs via a 3/4-inch BSPT threaded connection and runs on 24V/2W power, with data output via 4-20mA analog and RS-485 through an 8-pin connector for integration with plant monitoring systems.
It is intended for facilities using BSPT threaded fittings that need corrosion monitoring on demanding process lines where elevated temperature and pressure rule out standard-rated sensors.
Why Use This
Built for Extreme Conditions
Rated to 485psi and 240°C, this sensor withstands high temperature and pressure process environments.
Real-Time Corrosion Monitoring
LPR sensing provides continuous corrosion rate data for cooling water and process systems.
Applications
- High temperature/pressure process lines — corrosion monitoring up to 485psi and 240°C
- Cooling water and process systems using BSPT fittings — real-time corrosion rate tracking in demanding conditions
FAQ
What temperature and pressure is the CR-301-BSP rated for?
It is rated to 485psi and 240°C, suiting demanding process conditions.
How does the CR-301-BSP connect to piping?
It installs via a 3/4-inch BSPT threaded connection.
What are the power requirements?
The CR-301-BSP runs on 24V/2W power.
How is corrosion data output from the sensor?
Data is output via 4-20mA analog and RS-485 through an 8-pin connector.
