Fluimac Phoenix P8 AODD Pump
Air-operated double diaphragm pump rated for 7 lt/min max flow, built for chemical transfer with dry-run and deadhead protection.
Fluimac Phoenix P8 AODD Pump

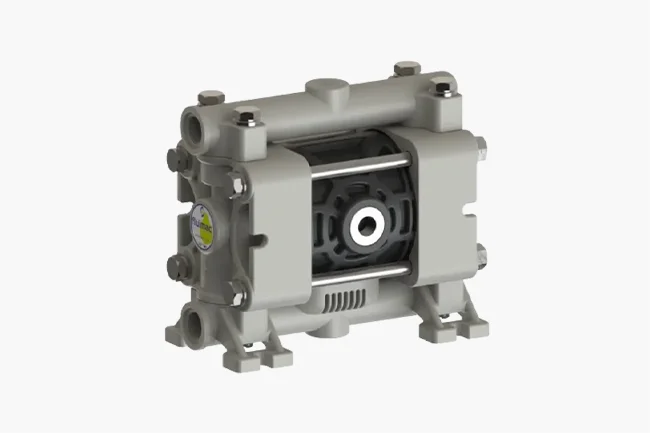

The Fluimac Phoenix P8 is an air-operated double diaphragm (AODD) pump rated for a maximum flow of 7 lt/min, designed for chemical transfer applications requiring reliable, seal-less operation. Its valve-ball design allows dry-running without damage, self-priming to 3 m of dry suction lift, and safe deadheading against a closed discharge line. Multiple casing and wetted-part material options let it be matched to specific chemical compatibility requirements.
Description
The Fluimac Phoenix P8 is an air-operated double diaphragm (AODD) pump rated for a maximum flow of 7 lt/min, designed for chemical transfer applications that require reliable, seal-less operation. It is available in multiple casing materials to suit different chemical compatibility and application requirements.
Its seal-less, valve-ball design allows the pump to dry-run without damage, self-prime to 3 m of dry suction lift, and be safely deadheaded against a closed discharge line without harm to the pump. Each material variant can be configured with a range of diaphragm, ball, seat, and gasket combinations to match specific chemical compatibility needs — Autoflo can advise on the correct composition code for a given application.
The P8 connects via 1/4″ BSPP fluid and 1/8″ BSPP air fittings, delivers up to 60 m max delivery head at up to 6 bar air pressure, passes solids up to 2 mm, and is ATEX rated (II 3/3 G Ex h IIC T4 Gc / II 3 D Ex h IIIB T135°C Dc X) for use in hazardous areas.
Why Use This
Reliable Dry-Run Protection
The seal-less, valve-ball design lets the Phoenix P8 run dry without damage, reducing maintenance and downtime risk.
Flexible Chemical Compatibility
Available diaphragm, ball, seat, and gasket material combinations let the pump be configured for specific chemical duties.
Safe, Simple Operation
Self-priming to 3 m of dry suction lift and safe deadheading against closed discharge simplify installation and operation.
Applications
- Chemical transfer — seal-less design suited to transferring process chemicals with self-priming capability
- Hazardous area dosing/transfer — ATEX certification supports use in explosive atmosphere zones
- Mid-flow industrial dosing — 7 lt/min max flow suits moderate-volume chemical transfer duties
FAQ
What is the maximum flow rate and pressure rating of the Phoenix P8?
It delivers up to 7 lt/min maximum flow at up to 6 bar max air pressure, with a max delivery head of 60 m.
Can the pump run dry or against a closed discharge line without damage?
Yes. Its seal-less, valve-ball design allows dry-running without damage and safe deadheading against a closed discharge line.
What chemical compatibility options are available?
The P8 is available in multiple casing materials, with a range of diaphragm, ball, seat, and gasket material combinations to match specific chemical compatibility needs — consult Autoflo for the correct composition code.
Is the Phoenix P8 rated for hazardous areas?
Yes, it carries ATEX certification II 3/3 G Ex h IIC T4 Gc / II 3 D Ex h IIIB T135°C Dc X.
