Fluimac Phoenix Food PF1000 AODD Pump
Fluimac Phoenix Food PF1000 is a 316 stainless steel AODD pump with Tri-Clamp fittings for hygienic food and beverage transfer.
Fluimac Phoenix Food PF1000 AODD Pump

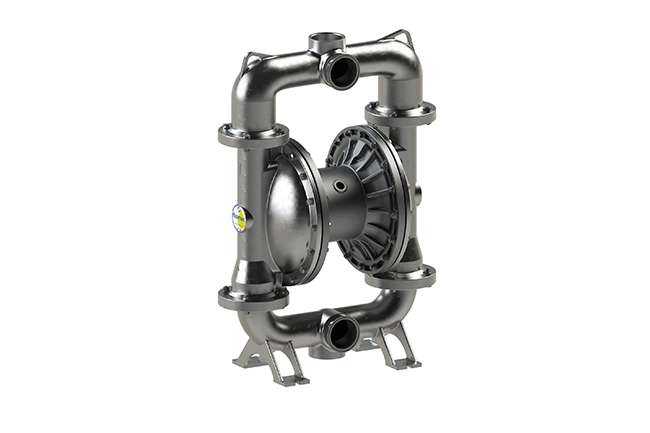

The Fluimac Phoenix Food PF1000 is an air-operated double diaphragm (AODD) pump built in electro-polished 316 stainless steel with Tri-Clamp connections, designed for food, beverage, and hygienic process transfer. It is FDA-compliant and shares the seal-less, dry-run-safe, self-priming design of the standard Phoenix range. Rated for a maximum flow of 1050 lt/min, it suits the highest-volume hygienic transfer duties in the Food range.
Description
The Fluimac Phoenix Food PF1000 is an air-operated double diaphragm (AODD) pump built in electro-polished 316 stainless steel with Tri-Clamp connections, designed for food, beverage, and hygienic process transfer applications. It is FDA-compliant and shares the seal-less, dry-run-safe, self-priming design used across the standard Phoenix range.
Fluid connections are 3″ Tri-Clamp DN 80 ISO 2852 with a 3/4″ BSP air connection, and the pump is rated for a maximum flow of 1050 lt/min at up to 8 bar of air pressure. It delivers a maximum head of 80 m, self-primes to 5 m of dry suction lift, and achieves a wet suction lift of 9.8 m. Maximum solid passing is 12 mm, noise level is 82 dB, and viscosity handling extends to 55,000 cps; displacement per stroke is approximately 9750 cc.
The PF1000 carries an ATEX rating of II 3/3 G Ex h IIB T4 Gc / II 3 D Ex h IIIB T135°C Dc X, and it is rated as the highest-volume pump in the Phoenix Food range.
Why Use This
Hygienic, FDA-compliant build
Electro-polished 316 stainless steel and Tri-Clamp fittings suit food and beverage process transfer.
Reliable dry-run protection
The seal-less design self-primes and tolerates dry running without damage, reducing downtime risk.
Applications
- Food and beverage transfer — FDA-compliant 316 stainless steel with Tri-Clamp connections
- Hygienic process transfer — electro-polished finish for sanitary installations
- Highest-volume hygienic transfer duties — max flow of 1050 lt/min
- Hazardous area installations — ATEX rated for classified zones
FAQ
What is the PF1000 designed for?
It is designed for food, beverage, and hygienic process transfer, built in electro-polished 316 stainless steel with Tri-Clamp connections and FDA-compliant.
What is the maximum flow rate?
The PF1000 is rated for a maximum flow of 1050 lt/min, the highest in the Phoenix Food range.
What solids can the PF1000 pass?
It can pass solids up to 12 mm.
Is it rated for hazardous areas?
Yes, it carries an ATEX rating of II 3/3 G Ex h IIB T4 Gc / II 3 D Ex h IIIB T135°C Dc X.
Resources
Related Products
Fluimac Lotus L15 CNC-machined air-operated double diaphragm pump for transferring highly corrosive, hazardous, or toxic chemicals.

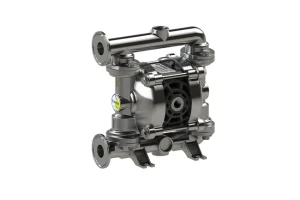

Fluimac Phoenix Food PF35 is a 316 stainless steel AODD pump with Tri-Clamp fittings for hygienic food and beverage transfer.
