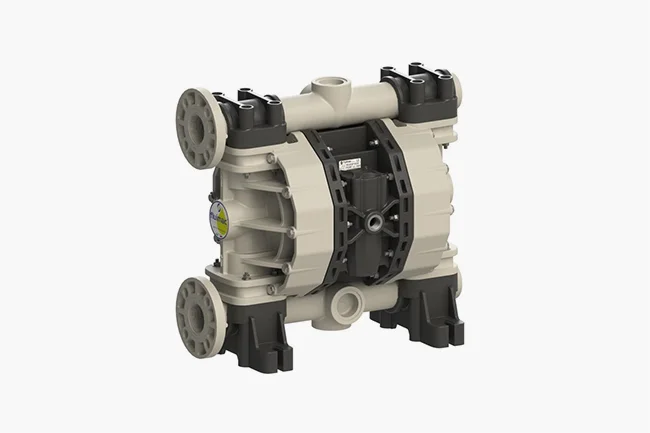

Fluimac Phoenix P700 AODD Pump
Fluimac Phoenix P700 air-operated double diaphragm pump delivering up to 700 L/min for industrial fluid transfer.
Fluimac Phoenix P700 AODD Pump
The Fluimac Phoenix P700 is an air-operated double diaphragm (AODD) pump rated for up to 700 lt/min maximum flow, available in multiple casing materials to match different chemical compatibility requirements. Its seal-less, valve-ball design allows dry-running without damage, self-priming to 5 m of dry suction lift, and safe deadheading against a closed discharge line. Diaphragm, ball, seat, and gasket materials can be configured to suit specific application needs.
Description
The Fluimac Phoenix P700 AODD Pump is an air-operated double diaphragm (AODD) pump rated for up to 700 lt/min maximum flow, the highest capacity in the Phoenix range. It is available in multiple casing materials — polypropylene, carbon-filled PVDF, aluminum, and stainless steel — allowing the base pump to be matched to specific chemical compatibility and application requirements.
The pump uses a seal-less, valve-ball design that can run dry without damage, self-prime to 5 m of dry suction lift, and safely deadhead against a closed discharge line. Fluid connections are 2″ BSPP-DN50 with a 3/4″ BSPP air connection, and the pump is rated for 8 bar max air pressure, an 80 m max delivery head, 9.8 m max wet suction lift, and solids passing up to 8.5 mm. It handles fluids up to 50,000 cps viscosity at a 78 dB noise level, with a displacement of approximately 3050 cc per stroke.
Each material variant can be configured with different diaphragm, ball, seat, and gasket material combinations for specific chemical compatibility — Autoflo can advise on the correct composition code. An ATEX-certified configuration is also available (II 3/3 G Ex h IIB T4 Gc / II 3 D Ex h IIIB T135°C Dc X) for classified hazardous areas.
Why Use This
Chemical Compatibility
Available in multiple casing and wetted-part material combinations to match specific fluid compatibility requirements.
Reliable Dry-Running
Seal-less valve-ball design tolerates dry-running and deadheading without pump damage, reducing downtime risk.
Applications
- High-flow fluid transfer — rated up to 700 lt/min, the highest-capacity option in the Phoenix range
- Chemically diverse fluid transfer — available in PP, PVDF+CF, aluminum, and SS casings to match chemical compatibility needs
- Highly viscous fluid handling — rated to handle fluids up to 50,000 cps
- Solids-bearing fluid transfer — passes solids up to 8.5 mm
- Hazardous area installations — ATEX-certified configuration available for classified zones
FAQ
What is the maximum flow rate of the Phoenix P700?
The Phoenix P700 is rated for a maximum flow rate of 700 lt/min, the highest in the Phoenix pump range covered here.
Can the pump run dry without damage?
Yes. It uses a seal-less, valve-ball design capable of dry-running without damage, and self-primes to 5 m of dry suction lift.
What happens if the discharge line is closed?
The pump can safely deadhead against a closed discharge line without pump damage.
Is the Phoenix P700 rated for hazardous areas?
Yes, it is available with ATEX certification: II 3/3 G Ex h IIB T4 Gc / II 3 D Ex h IIIB T135°C Dc X.
