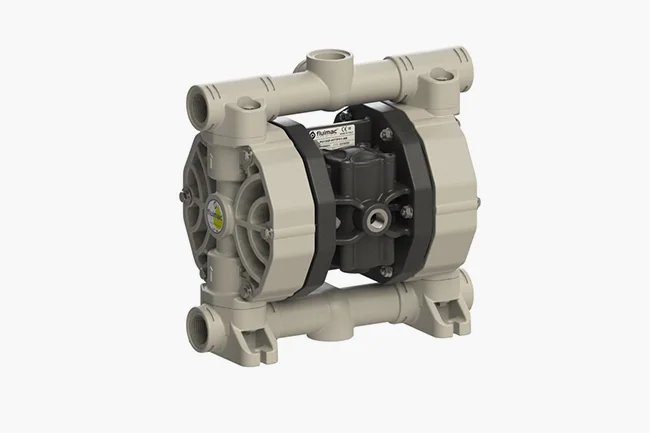

Fluimac Phoenix P120 AODD Pump
Air-operated double diaphragm pump rated for 120 lt/min flow, built for seal-less, self-priming chemical and fluid transfer.
Fluimac Phoenix P120 AODD Pump
The Fluimac Phoenix P120 is an air-operated double diaphragm (AODD) pump rated for a maximum flow of 120 lt/min, available in multiple casing materials to match different chemical compatibility needs. Its seal-less, valve-ball design allows dry-running without damage, self-priming to 5 m of dry suction lift, and safe deadheading against a closed discharge line. Diaphragm, ball, seat, and gasket materials can be configured to suit specific process fluids.
Description
The Fluimac Phoenix P120 is an air-operated double diaphragm (AODD) pump rated for a maximum flow of 120 lt/min, built for higher-volume fluid transfer than the P90 within the same Phoenix platform. Its seal-less, valve-ball design allows it to run dry without damage, self-prime to 5 m of dry suction lift, and safely deadhead against a closed discharge line.
Available in multiple casing materials, the pump can be configured with different diaphragm, ball, seat, and gasket combinations to suit specific chemical compatibility requirements — Autoflo can advise on the correct composition code for a given application. It uses 1″ BSPP fluid connections and a 3/8″ BSPP air connection, handles solids up to 4 mm, viscosities up to 25,000 cps, and a maximum delivery head of 80 m.
An ATEX rating (II 3/3 G Ex h IIC T4 Gc / II 3 D Ex h IIIB T135°C Dc X) makes it suitable for hazardous zone installations, serving process engineers needing higher throughput than the P90 while retaining the same dry-run and deadhead safety features.
Why Use This
Reliable Dry-Running
The seal-less valve-ball design lets the pump run dry or against a closed discharge without damage, reducing the risk of costly downtime.
Flexible Chemical Compatibility
Available in multiple casing materials and wetted-part combinations, the P120 can be configured to handle a wide range of process fluids.
Higher Throughput
A 120 lt/min max flow rate suits applications that need more volume than smaller AODD models can deliver.
Applications
- Higher-volume fluid transfer — 120 lt/min max flow for demanding process duties
- Hazardous area installations — ATEX rating supports classified zones
- Self-priming suction setups — primes to 5 m dry suction lift
- Fluids with fine particulates or high viscosity — handles solids to 4 mm and viscosity to 25,000 cps
FAQ
What is the maximum flow rate of the Phoenix P120?
The Phoenix P120 is rated for a maximum flow of 120 lt/min.
Can it run dry or against a closed discharge?
Yes, its seal-less valve-ball design supports dry-running without damage and safe deadheading against a closed discharge line.
Is the P120 rated for hazardous areas?
Yes, it carries an ATEX rating of II 3/3 G Ex h IIC T4 Gc / II 3 D Ex h IIIB T135°C Dc X.
What connection sizes does the P120 use?
It uses a 1″ BSPP fluid connection and a 3/8″ BSPP air connection.
