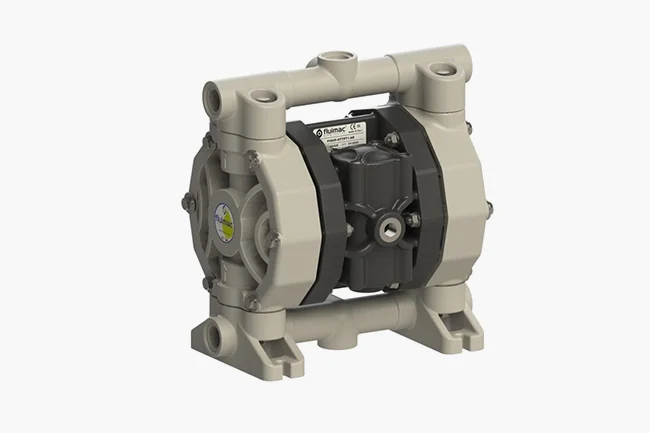

Fluimac Phoenix P60 AODD Pump
Fluimac Phoenix P60 AODD Pump is an air-operated double diaphragm pump rated for 65 lt/min max flow, built for seal-less, dry-run-safe chemical transfer.
Fluimac Phoenix P60 AODD Pump
The Fluimac Phoenix P60 AODD Pump is a seal-less, valve-ball air-operated double diaphragm (AODD) pump rated for 65 lt/min maximum flow, designed to run dry without damage and self-prime to 5 m of dry suction lift. It is available in multiple casing materials and diaphragm/seat/gasket combinations so it can be matched to specific chemical compatibility requirements, and it can safely deadhead against a closed discharge without damaging the pump.
Description
The Fluimac Phoenix P60 is an air-operated double diaphragm (AODD) pump rated for a maximum flow of 65 lt/min, built around a seal-less, valve-ball design that can run dry without damage and self-prime to 5 m of dry suction lift. It is engineered for safe deadheading, allowing it to run against a closed discharge line without sustaining damage — the highest-flow pump of the P35/P55/P60 Phoenix line.
The pump is available in multiple casing materials (PP, PVDF+CF, aluminum, and stainless steel), each of which can be paired with a range of diaphragm, ball, seat, and gasket material combinations to match specific chemical compatibility needs, allowing operators to standardize on a single pump platform across different process fluids.
With 1/2″ BSPP fluid connections, a 1/4″ BSPP air connection, a maximum air pressure of 8 bar, and a maximum delivery head of 80 m, the P60 is suited to higher-flow industrial transfer and dosing tasks. It passes solids up to 3.5 mm, handles viscosities up to 20,000 cps — the highest of the three Phoenix models — and carries an ATEX rating for use in classified hazardous areas.
Why Use This
Reliable dry running
The seal-less, valve-ball design lets the pump run dry without damage, reducing risk of failure if suction is lost.
Chemical compatibility flexibility
Multiple casing materials and diaphragm/seat/gasket combinations let you match the pump to your specific fluid.
Safe against deadheading
The pump can run against a closed discharge line without sustaining damage, adding a margin of operational safety.
Applications
- Chemical transfer — casing and elastomer combinations can be matched to the process fluid for chemical compatibility
- High-flow dosing duties requiring safe deadheading — pump can sit against a closed discharge line without damage
- Fluid handling with entrained solids — passes solids up to 3.5 mm
- Hazardous area installations — ATEX-rated for use in classified zones
- High-viscosity fluid transfer — handles fluids up to 20,000 cps
FAQ
What is the maximum flow rate of the Phoenix P60?
The Phoenix P60 is rated for a maximum flow of 65 lt/min.
Can the P60 run dry without damage?
Yes. Its seal-less, valve-ball design allows it to run dry without damage and self-prime to 5 m of dry suction lift.
What happens if the discharge line is closed?
The P60 is designed for safe deadheading — it can run against a closed discharge without being damaged.
How viscous a fluid can the P60 handle?
The P60 is rated to handle viscosities up to 20,000 cps.
Resources
Related Products

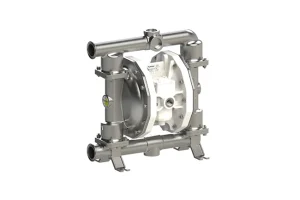

Fluimac Phoenix Food PF170 is a 316 stainless steel AODD pump with Tri-Clamp fittings for hygienic food and beverage transfer.

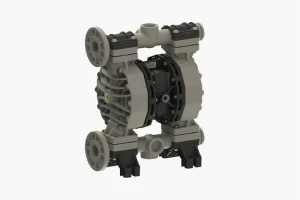

Fluimac Phoenix P400 air-operated double diaphragm pump delivering up to 380 L/min for industrial fluid transfer.
