Fluimac Lotus L10 AODD Pump
Fluimac Lotus L10 is a CNC-machined AODD pump built for highly corrosive, hazardous, and toxic chemical transfer.
Fluimac Lotus L10 AODD Pump
The Fluimac Lotus L10 is an air-operated double diaphragm (AODD) pump built from a CNC-machined solid plastic block rather than injection-moulded parts, giving tighter tolerances, reduced vibration, and greater durability. It is designed for highly corrosive, hazardous, or toxic chemicals, including concentrated acids, bases, etching agents, and solvents. Available in PTFE, conductive PTFE, PE, conductive PE, and pure polypropylene, it suits applications from abrasive slurry and sludge transfer to semiconductor wafer chemical treatment.
Description
The Fluimac Lotus L10 is an air-operated double diaphragm (AODD) pump built from a CNC-machined solid plastic block rather than injection-moulded parts, giving tighter tolerances, reduced vibration, and greater durability than standard moulded AODD pumps. It is designed for highly corrosive, hazardous, or toxic chemicals, including concentrated acids and bases, etching agents, and solvents.
It is available in PTFE, conductive PTFE, PE, conductive PE, and pure polypropylene, suiting applications from abrasive slurry and sludge transfer to semiconductor wafer chemical treatment. Fluid connections are 3/8″ BSP with a 1/4″ BSP air connection, and the pump is rated for a maximum flow of 24 lt/min at up to 7 bar of air pressure. It delivers a maximum head of 70 m, self-primes to 4 m of dry suction lift, and achieves a wet suction lift of 9.8 m, with maximum solid passing of 3 mm and viscosity handling to 15,000 cps.
Displacement per stroke is approximately 65 cc, and the L10 carries an ATEX rating of II 3/3 G Ex h IIB T4 Gb / II 3 D Ex h IIIB T135°C Db X, supporting its use in classified hazardous areas alongside its chemical-handling capabilities.
Why Use This
Built for aggressive chemicals
Designed to handle highly corrosive, hazardous, or toxic fluids such as concentrated acids, bases, etching agents, and solvents.
Precision CNC construction
The solid plastic block design offers tighter tolerances, reduced vibration, and greater durability than standard moulded AODD pumps.
Applications
- Concentrated acid and base transfer — CNC-machined construction suited to aggressive chemicals
- Etching agent and solvent handling — chemical-resistant material options
- Abrasive slurry and sludge transfer — durable solid-block construction
- Semiconductor wafer chemical treatment — precision tolerances for sensitive processes
FAQ
What makes the Lotus L10 different from standard moulded AODD pumps?
It is built from a CNC-machined solid plastic block rather than injection-moulded parts, giving tighter tolerances, reduced vibration, and greater durability.
What chemicals is the L10 designed to handle?
It is designed for highly corrosive, hazardous, or toxic chemicals, including concentrated acids, bases, etching agents, and solvents.
What materials is the L10 available in?
It is available in PTFE, conductive PTFE, PE, conductive PE, and pure polypropylene.
What is the maximum flow rate?
The Lotus L10 is rated for a maximum flow of 24 lt/min.
Resources
Related Products

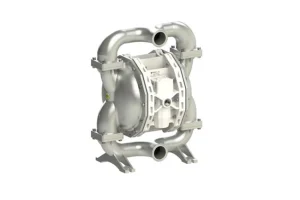

Fluimac Phoenix Food PF700 is a 316 stainless steel AODD pump with Tri-Clamp fittings for hygienic food and beverage transfer.

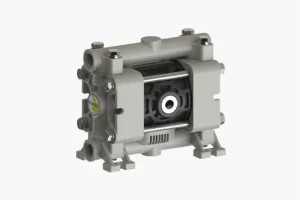

Air-operated double diaphragm pump rated for 7 lt/min max flow, built for chemical transfer with dry-run and deadhead protection.
