Fluimac Phoenix P170 AODD Pump
Air-operated double diaphragm pump rated for 170 lt/min flow, built for seal-less, self-priming chemical and fluid transfer.
Fluimac Phoenix P170 AODD Pump
The Fluimac Phoenix P170 is an air-operated double diaphragm (AODD) pump rated for a maximum flow of 170 lt/min, available in multiple casing materials to match different chemical compatibility needs. Its seal-less, valve-ball design allows dry-running without damage, self-priming to 5 m of dry suction lift, and safe deadheading against a closed discharge line. Diaphragm, ball, seat, and gasket materials can be configured to suit specific process fluids.
Description
The Fluimac Phoenix P170 is an air-operated double diaphragm (AODD) pump rated for a maximum flow of 170 lt/min, positioned as the higher-throughput option in the Phoenix pump platform. Its seal-less, valve-ball design allows it to run dry without damage, self-prime to 5 m of dry suction lift, and safely deadhead against a closed discharge line.
The pump is available in multiple casing materials, with diaphragm, ball, seat, and gasket combinations configurable to match specific chemical compatibility needs — Autoflo can advise on the correct composition code for a given application. It uses 1″ BSPP-DN25 fluid connections and a 1/2″ BSPP air connection, and passes solids up to 7.5 mm and viscosities up to 35,000 cps, larger than the P90 and P120 models in the same range.
An ATEX rating (II 3/3 G Ex h IIB T4 Gc / II 3 D Ex h IIIB T135°C Dc X) suits it for hazardous zone installations, serving process engineers who need higher volumes and solids-handling capability than the smaller Phoenix models.
Why Use This
Reliable Dry-Running
The seal-less valve-ball design lets the pump run dry or against a closed discharge without damage, reducing the risk of costly downtime.
Higher Throughput and Solids Handling
A 170 lt/min max flow rate and 7.5 mm solid passing suit applications with larger volumes or particulate-laden fluids.
Flexible Chemical Compatibility
Available in multiple casing materials and wetted-part combinations, the P170 can be configured to handle a wide range of process fluids.
Applications
- High-throughput fluid transfer — 170 lt/min max flow for demanding process duties
- Fluids with larger particulates — passes solids up to 7.5 mm
- Hazardous area installations — ATEX rating supports classified zones
- Viscous fluid handling — rated up to 35,000 cps
FAQ
What is the maximum flow rate of the Phoenix P170?
The Phoenix P170 is rated for a maximum flow of 170 lt/min.
How large a solid can it pass?
It can pass solids up to 7.5 mm, larger than the smaller Phoenix P90 and P120 models.
Is the P170 suitable for hazardous zones?
Yes, it carries an ATEX rating of II 3/3 G Ex h IIB T4 Gc / II 3 D Ex h IIIB T135°C Dc X.
What connection sizes does it use?
It uses a 1″ BSPP-DN25 fluid connection and a 1/2″ BSPP air connection.
Resources
Related Products

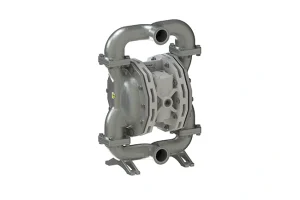

Fluimac Phoenix Food PF700 is a 316 stainless steel AODD pump with Tri-Clamp fittings for hygienic food and beverage transfer.
