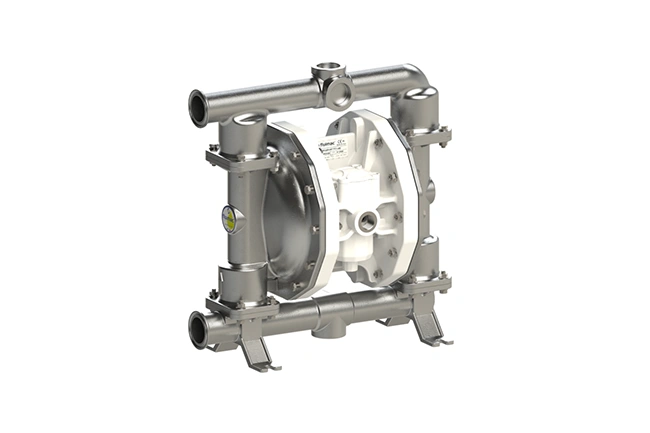

Fluimac Phoenix Food PF170 AODD Pump
Fluimac Phoenix Food PF170 is a 316 stainless steel AODD pump with Tri-Clamp fittings for hygienic food and beverage transfer.
Fluimac Phoenix Food PF170 AODD Pump
The Fluimac Phoenix Food PF170 is an air-operated double diaphragm (AODD) pump built in electro-polished 316 stainless steel with Tri-Clamp connections, designed for food, beverage, and hygienic process transfer. It is FDA-compliant and shares the seal-less, dry-run-safe, self-priming design of the standard Phoenix range. Rated for a maximum flow of 170 lt/min, it suits larger-volume hygienic transfer duties.
Description
The Fluimac Phoenix Food PF170 is an air-operated double diaphragm (AODD) pump built in electro-polished 316 stainless steel with Tri-Clamp connections, designed for food, beverage, and hygienic process transfer applications. It is FDA-compliant and shares the seal-less, dry-run-safe, self-priming design used across the standard Phoenix range.
Fluid connections are 1-1/2″ Tri-Clamp DN 1-1/2″ BS 4825 with a 1/2″ BSP air connection, and the pump is rated for a maximum flow of 170 lt/min at up to 8 bar of air pressure. It delivers a maximum head of 80 m, self-primes to 5 m of dry suction lift, and achieves a wet suction lift of 9.8 m. Maximum solid passing is 7.5 mm, noise level is 75 dB, and viscosity handling extends to 35,000 cps; displacement per stroke is approximately 700 cc.
The PF170 carries an ATEX rating of II 3/3 G Ex h IIB T4 Gc / II 3 D Ex h IIIB T135°C Dc X, suiting larger-volume hygienic transfer duties within the Phoenix Food range.
Why Use This
Hygienic, FDA-compliant build
Electro-polished 316 stainless steel and Tri-Clamp fittings suit food and beverage process transfer.
Reliable dry-run protection
The seal-less design self-primes and tolerates dry running without damage, reducing downtime risk.
Applications
- Food and beverage transfer — FDA-compliant 316 stainless steel with Tri-Clamp connections
- Hygienic process transfer — electro-polished finish for sanitary installations
- Larger-volume transfer duties — max flow of 170 lt/min
- Hazardous area installations — ATEX rated for classified zones
FAQ
What is the PF170 built from?
It is built in electro-polished 316 stainless steel with Tri-Clamp connections and is FDA-compliant.
What is the maximum flow rate?
The PF170 is rated for a maximum flow of 170 lt/min, suiting larger-volume hygienic transfer duties.
What size solids can it pass?
It can pass solids up to 7.5 mm.
Is it ATEX rated?
Yes, it carries an ATEX rating of II 3/3 G Ex h IIB T4 Gc / II 3 D Ex h IIIB T135°C Dc X.
Resources
Related Products
Fluimac Phoenix Food PF700 is a 316 stainless steel AODD pump with Tri-Clamp fittings for hygienic food and beverage transfer.

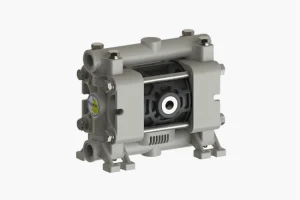

Fluimac Phoenix P400 air-operated double diaphragm pump delivering up to 380 L/min for industrial fluid transfer.
