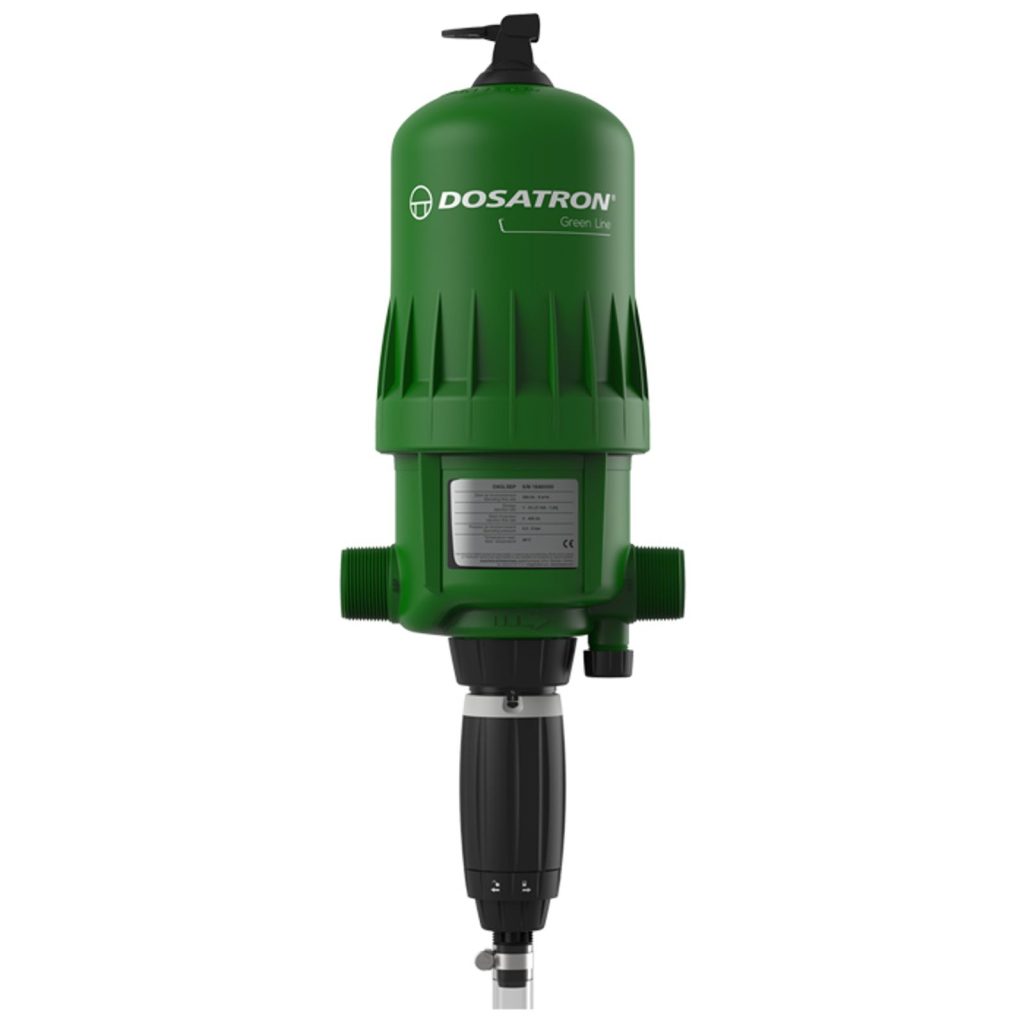

Dosatron D9GL5 Fertilizer Injector
Water-powered fertigation dosing pump for medium-sized fruit, vegetable, berry and ornamental production. 1-5% dosing.
Dosatron D9GL5 Fertilizer Injector
The D9GL5 fertilizer injector offers a higher dosage range within the D9GL family, suited to medium-sized fruit, vegetable, berry, ornamental and cut flower production. It shares the same metal-free hydraulic motor and tool-free maintenance design as the rest of the D9GL range.
Description
The Dosatron D9GL5 fertilizer injector offers a higher dosage range within the D9GL family, suited to medium-sized fruit, vegetable, berry, ornamental and cut flower production. It shares the same metal-free hydraulic motor and tool-free maintenance design as the rest of the D9GL range.
It provides an injection range of 1-5% (1:100 to 1:20) across a water flow range of 500 l/h to 9 m3/h and operating pressure of 0.3-8 bar, with concentrated additive injection of 5-450 l/h and NPT-BSP 1″1/2 M connections.
Why Use This
Higher dosing concentration
The 1-5% injection range suits fertigation programmes needing a stronger concentration than the D9GL2.
Improved chemical resistance
The metal-free hydraulic motor is made entirely of high-grade plastics, improving resistance to fertigation chemicals and extending service life.
Faster maintenance
Simplified from 96 to 35 parts, letting growers service the pump without special tools.
Applications
- Medium-sized fruit, vegetable, berry, ornamental and cut flower production requiring higher concentration dosing
- Fertigation programmes needing 1-5% injection rates
FAQ
How does the D9GL5 differ from the D9GL2?
The D9GL5 offers a higher dosage range of 1-5% (1:100 to 1:20), compared to the D9GL2’s 0.2-2% range, while sharing the same water flow range, pressure range and connections.
Does the D9GL5 use the same maintenance-friendly motor as the D9GL2?
Yes. It shares the same metal-free hydraulic motor and tool-free maintenance design as the rest of the D9GL range.
What is the additive injection rate for the D9GL5?
Concentrated additive injection is 5-450 l/h.
