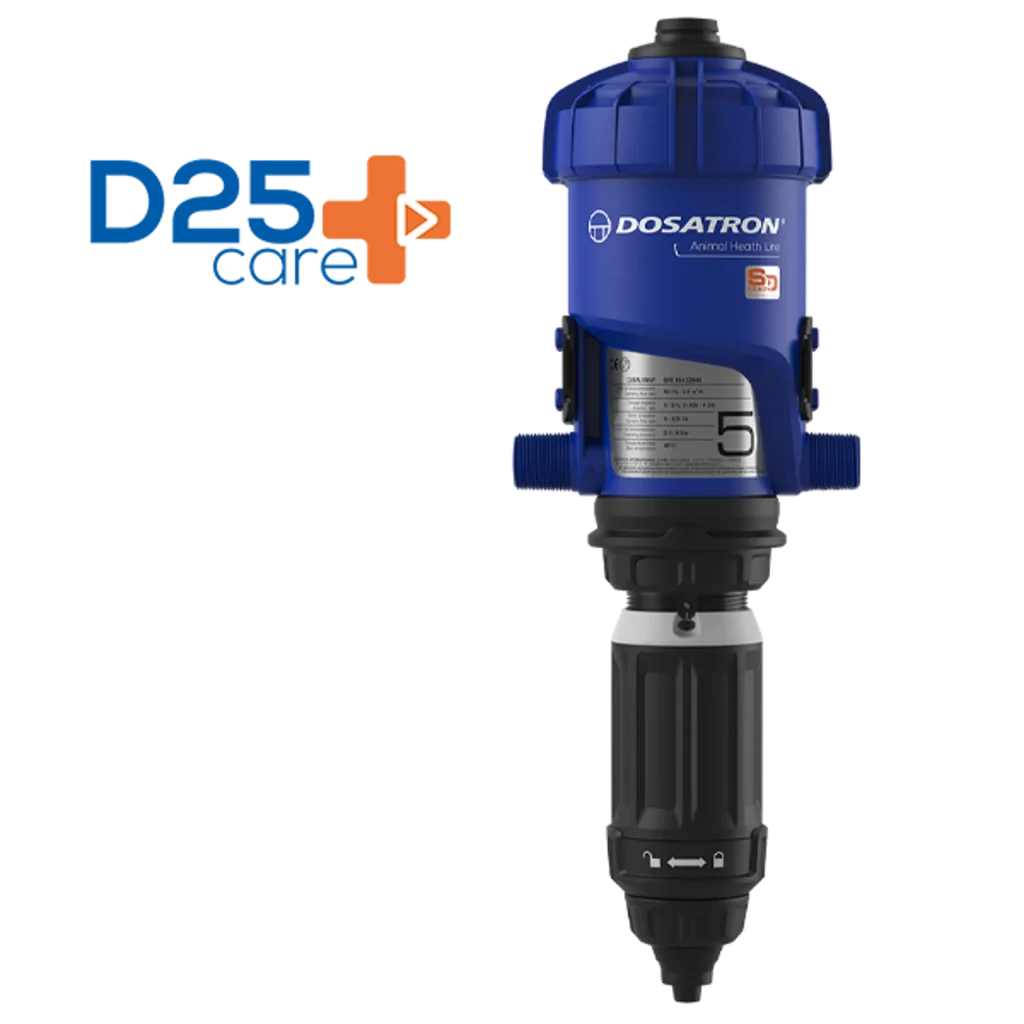

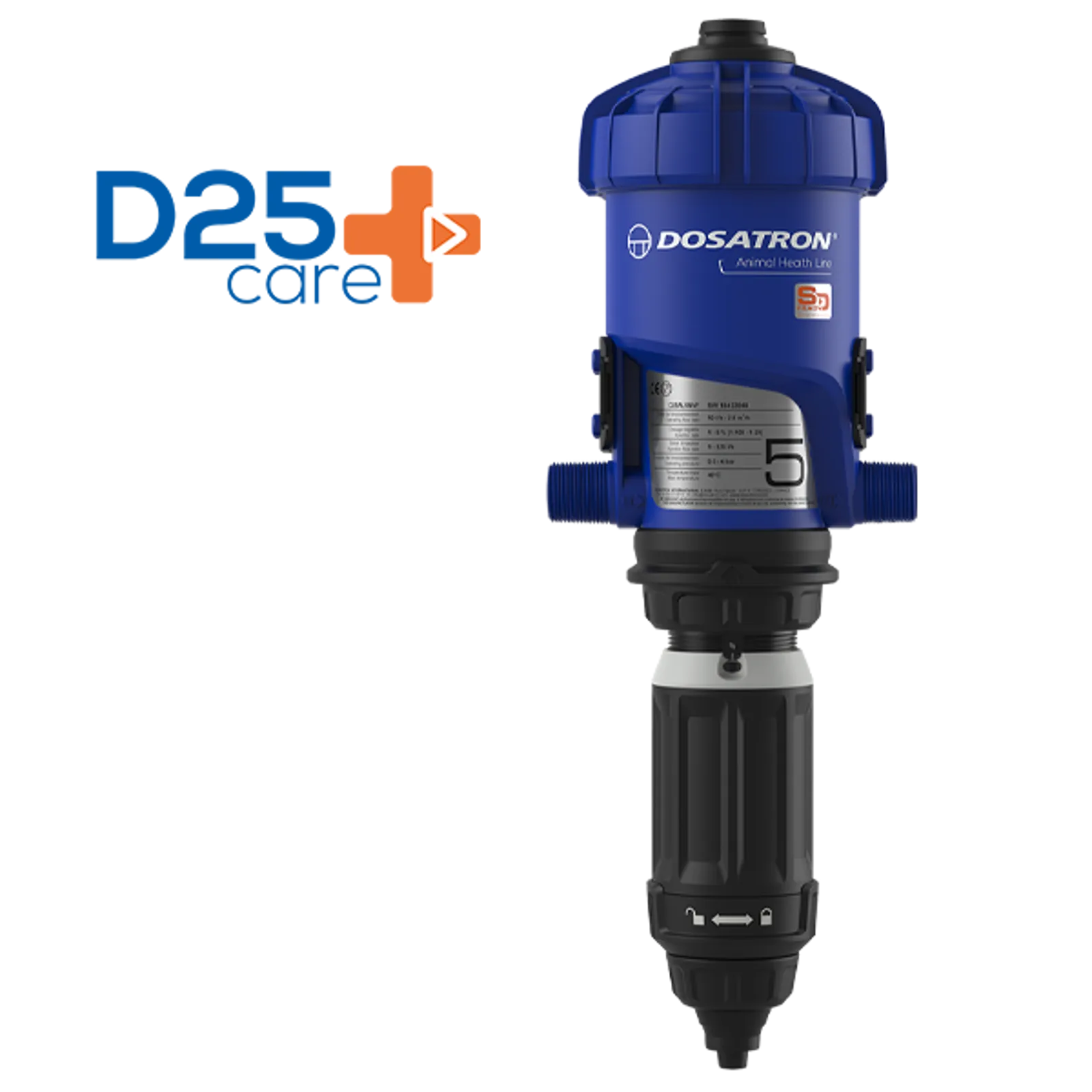

Dosatron D25AL5-N Medicator
The New Standard water-powered medicator for livestock, dosing 1-5% through drinking water without electricity.
Dosatron D25AL5-N Medicator
The D25AL5-N is part of Dosatron's D25+ care range, offering a higher dosage option within the New Standard medicator family. It injects concentrated additive into drinking water in direct proportion to water flow, with no electrical supply needed.
Description
The Dosatron D25AL5-N is part of Dosatron’s “D25+ care” range, giving farms a higher dosage range option within the New Standard medicator family. It injects concentrated additive into drinking water in direct proportion to water flow, with no electrical supply needed.
It offers an injection range of 1-5% (1:100 to 1:20) across a water flow range of 10-2,500 l/h and operating pressure of 0.30-6 bar, with a 0.45 litre stroke volume and NPT-BSP 3/4″ M connections.
It is used for vaccination, medication, acidification and supplementation through drinking water on livestock farms where a higher concentration range than the standard D25AL2-N is required.
Why Use This
No electricity required
Uses only water pressure to draw and inject additive, simplifying installation in barns and drinking water lines.
Higher dosing concentration
The 1-5% injection range suits treatment programmes that need a stronger additive concentration than the standard D25AL2-N.
Applications
- Livestock farms needing stronger dosing concentrations — 1-5% injection range
- Vaccination, medication, acidification and supplementation through drinking water
- Farms without electrical supply at the dosing point — proportional dosing powered by water flow
FAQ
How does the D25AL5-N differ from the D25AL2-N?
The D25AL5-N offers a higher dosage option, with an injection range of 1-5% (1:100 to 1:20), compared to the D25AL2-N’s 1-2% range, within the same D25+ care medicator family.
Does the D25AL5-N require electricity?
No. It injects additive into drinking water in direct proportion to water flow, with no electrical supply needed.
What flow and pressure range does the D25AL5-N support?
It operates across a water flow range of 10-2,500 l/h and an operating pressure of 0.30-6 bar.
