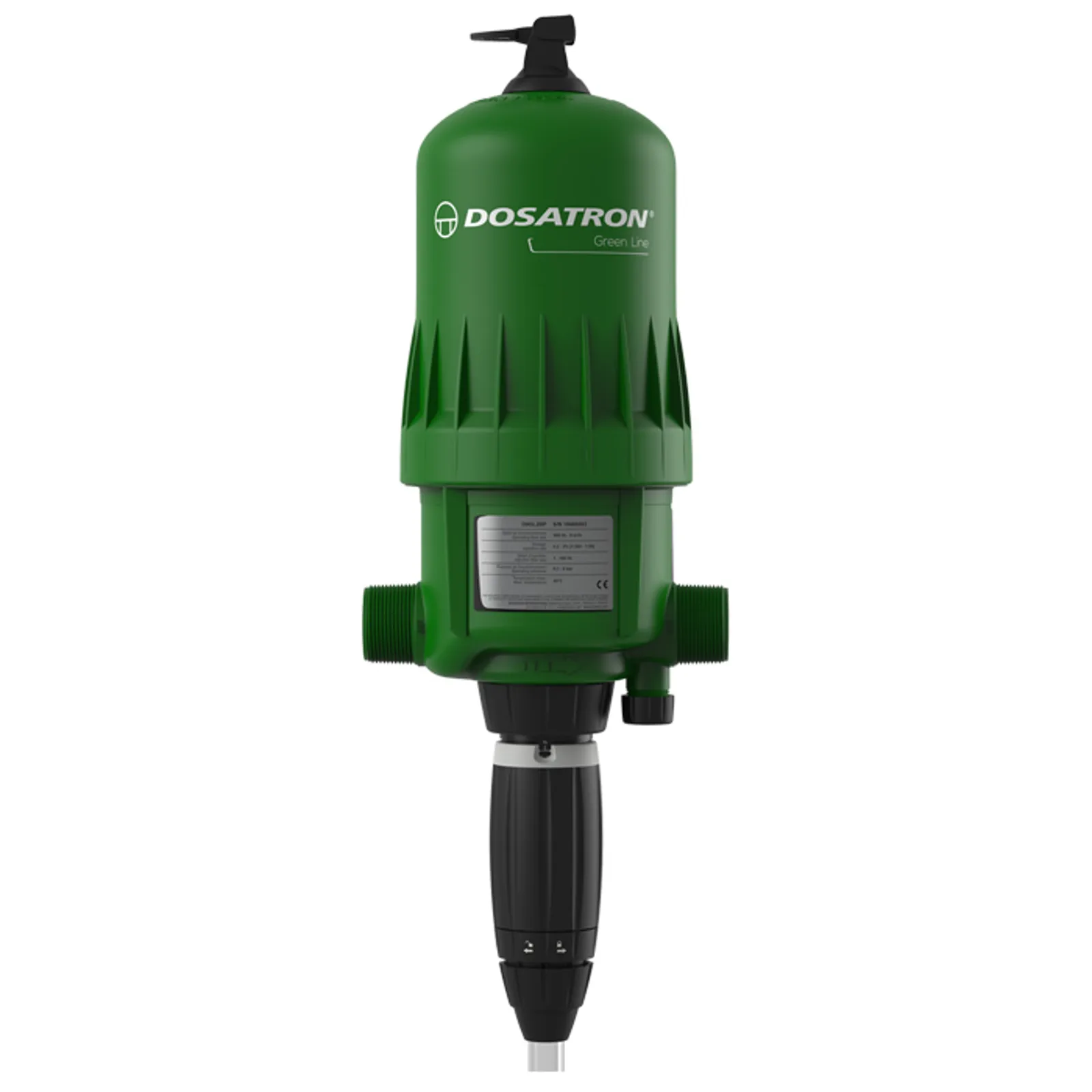

Dosatron D9GL2 Fertilizer Injector
Water-powered fertigation dosing pump for medium-sized fruit, vegetable, berry and ornamental production. 0.2-2% dosing.
Dosatron D9GL2 Fertilizer Injector
The D9GL2 fertilizer injector is designed for medium-sized production of fruit, vegetables, berries, ornamentals and cut flowers. It uses a newly designed metal-free hydraulic motor made entirely of high-grade plastics for improved chemical resistance and service life, simplified from 96 to 35 parts for faster, tool-free maintenance.
Description
The Dosatron D9GL2 fertilizer injector is designed for medium-sized production of fruit, vegetables, berries, ornamentals and cut flowers. It can be installed singly or in series for multi-stock solution management, or in parallel to boost flow rates.
The D9GL range uses a newly designed metal-free hydraulic motor, made entirely of high-grade plastics for improved chemical resistance and service life, and simplified from 96 to 35 parts for faster, tool-free maintenance.
It offers an injection range of 0.2-2% (1:500 to 1:50) across a water flow range of 500 l/h to 9 m3/h and operating pressure of 0.3-8 bar, with concentrated additive injection of 1-180 l/h and NPT-BSP 1″1/2 M connections.
Why Use This
Improved chemical resistance
The metal-free hydraulic motor is made entirely of high-grade plastics, improving resistance to fertigation chemicals and extending service life.
Faster maintenance
Simplified from 96 to 35 parts, letting growers service the pump without special tools.
Flexible installation
Can be installed singly, in series for multi-stock solution management, or in parallel to boost flow rates.
Applications
- Medium-sized fruit, vegetable, berry, ornamental and cut flower production — fertigation dosing
- Multi-stock solution management — units installed in series
- Higher-flow installations — units installed in parallel to boost flow rates
FAQ
What crops is the D9GL2 designed for?
It is designed for medium-sized production of fruit, vegetables, berries, ornamentals and cut flowers.
Can multiple D9GL2 units be installed together?
Yes. It can be installed singly or in series for multi-stock solution management, or in parallel to boost flow rates.
What is the metal-free hydraulic motor and why does it matter?
It is a newly designed motor made entirely of high-grade plastics for improved chemical resistance and service life, simplified from 96 to 35 parts for faster, tool-free maintenance.
What is the additive injection rate of the D9GL2?
Concentrated additive injection is 1-180 l/h, within an injection range of 0.2-2%.
