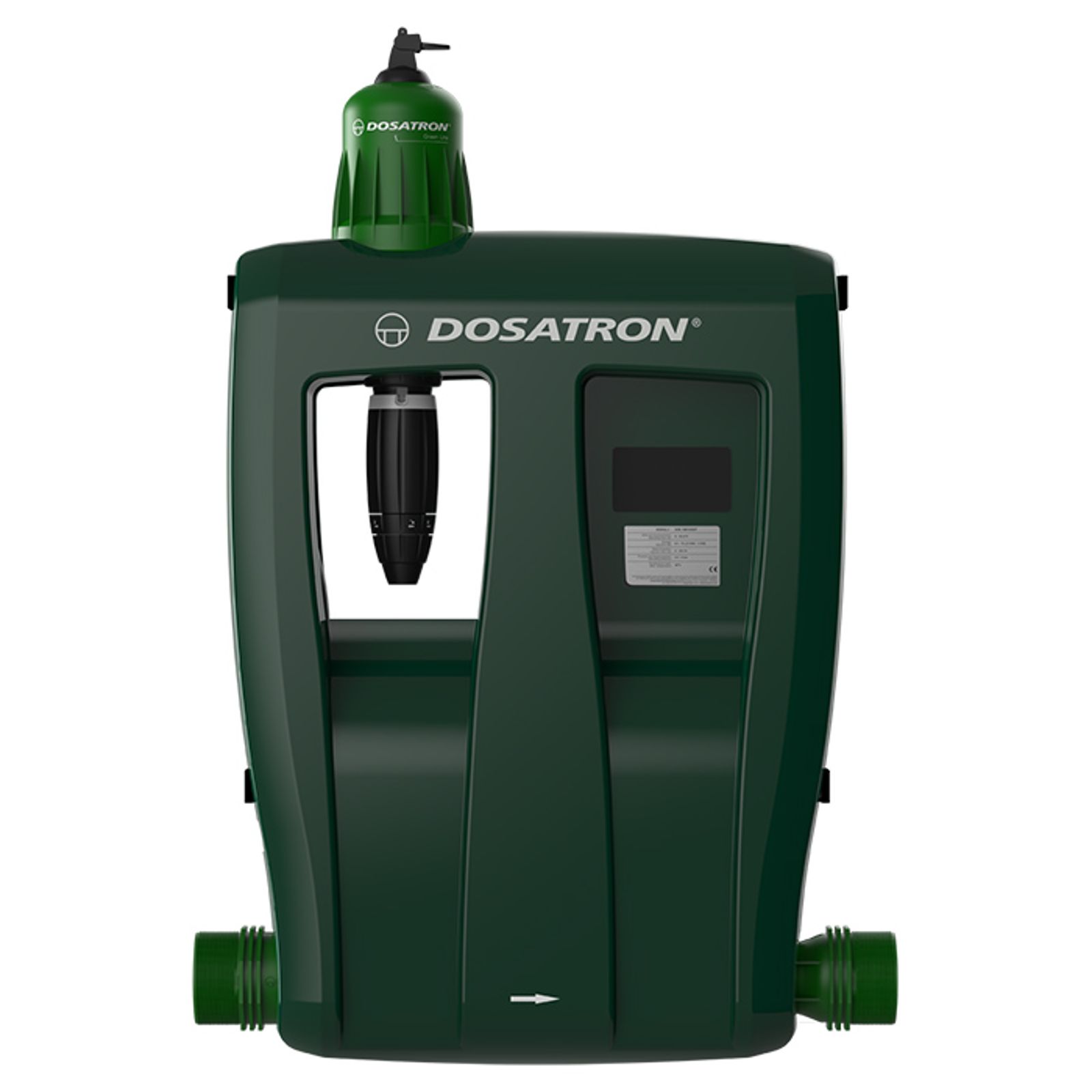

Dosatron D30GL Fertilizer Dosing Pump
High-flow water-powered fertigation dosing pump for irrigation networks up to 30 m3/h, available in two dosage ranges.
Dosatron D30GL Fertilizer Dosing Pump
The Dosatron D25 is a water-powered dosing pump designed for reliable, proportional dosing of medications, vitamins, and disinfectants in livestock and poultry operations. No electricity required — operates entirely on water pressure.
Description
The Dosatron D30GL is a water-powered fertilizer dosing pump built for high-flow irrigation, covering water flows from 8 to 30 m3/h. It uses Dosatron’s patented intelligent flow division technology and requires no electricity, making it suitable for large-scale fertigation lines without an electrical connection point.
The pump is chemical resistant and includes integrated homogenisation, which keeps dosing consistent across its full flow range. Two dosing variants are available: the D30GL02 for 0.02-0.2% dosing and the D30GL1 for 0.1-1% dosing. Connection to the process is via BSP 80 x 90mm (3″ M) with 2 flanges DN80 ISO.
It is suited to fertigation, plant protection treatments, network maintenance, acidification, direct injection and use with seed drills.
Why Use This
No Power Required
The D25 operates entirely on water pressure — making it ideal for remote farms, poultry houses, and any location without reliable electricity access.
Proportional Dosing
Unlike fixed-rate pumps, the D25 doses proportionally to water flow. As water flow increases or decreases, the dose rate adjusts automatically — ensuring consistent concentration at all times.
Simple Installation
Inline installation with standard BSP fittings. No wiring, no programming, no complex setup. Most installations can be completed in under 30 minutes.
Chemical Resistant
PVDF and EPDM wetted parts handle a wide range of agricultural chemicals including disinfectants, acidifiers, vitamins, and mineral supplements reliably over long service periods.
Applications
- Fertigation — high-flow proportional fertilizer injection for large irrigation systems
- Plant protection treatments — injection of crop protection products into irrigation lines
- Network maintenance — dosing for irrigation network upkeep
- Acidification — proportional acid injection into water lines
- Direct injection and seed drills — dosing applications requiring high-flow, electricity-free injection
FAQ
What water flow range does the D30GL cover?
It meets high-flow irrigation needs from 8 to 30 m3/h.
Does the D30GL need an electrical supply?
No, it requires no electricity to operate.
What dosing variants are available?
The D30GL02 doses at 0.02-0.2% and the D30GL1 doses at 0.1-1%.
What connection does the D30GL use?
It connects via BSP 80 x 90mm (3″ M) with 2 flanges DN80 ISO.
