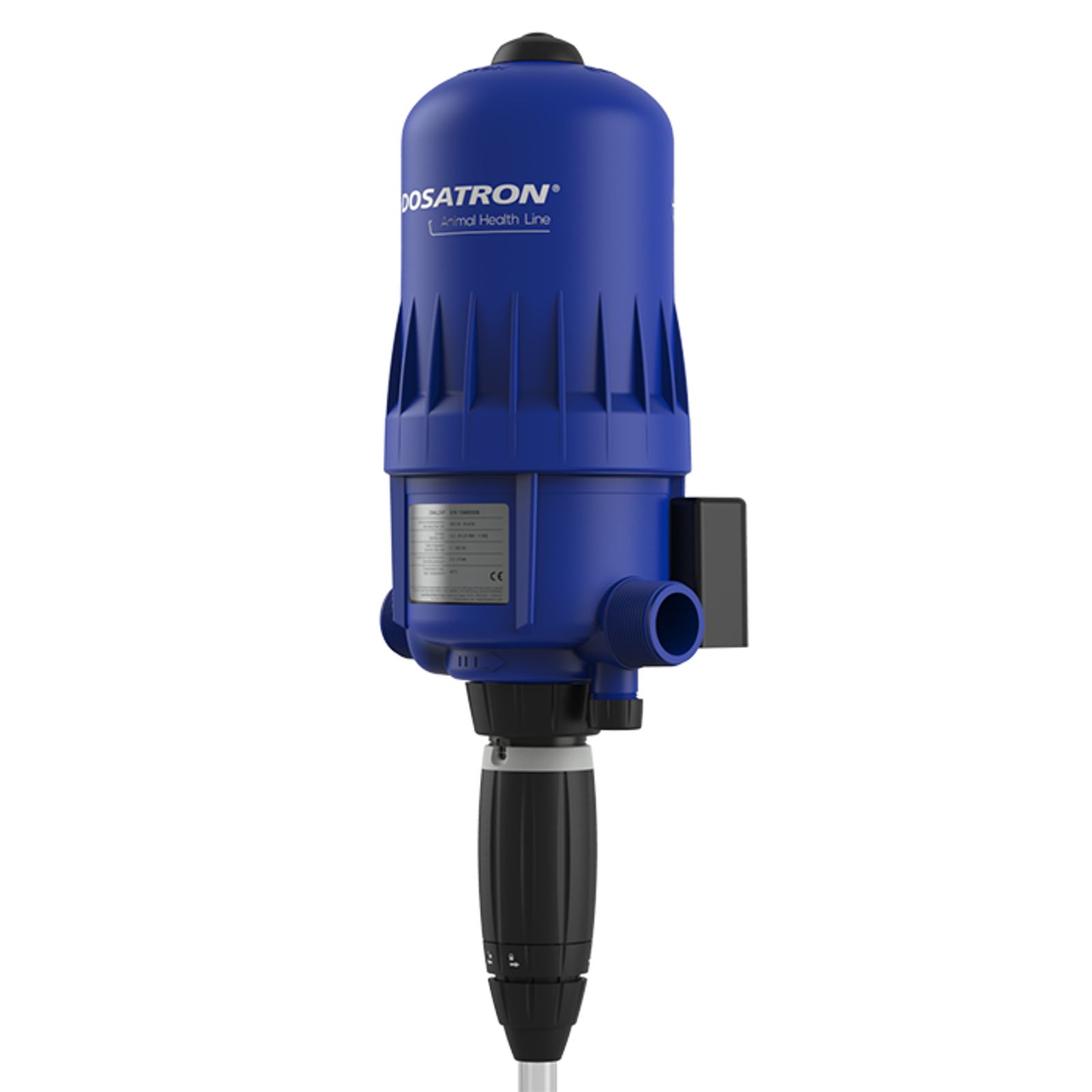

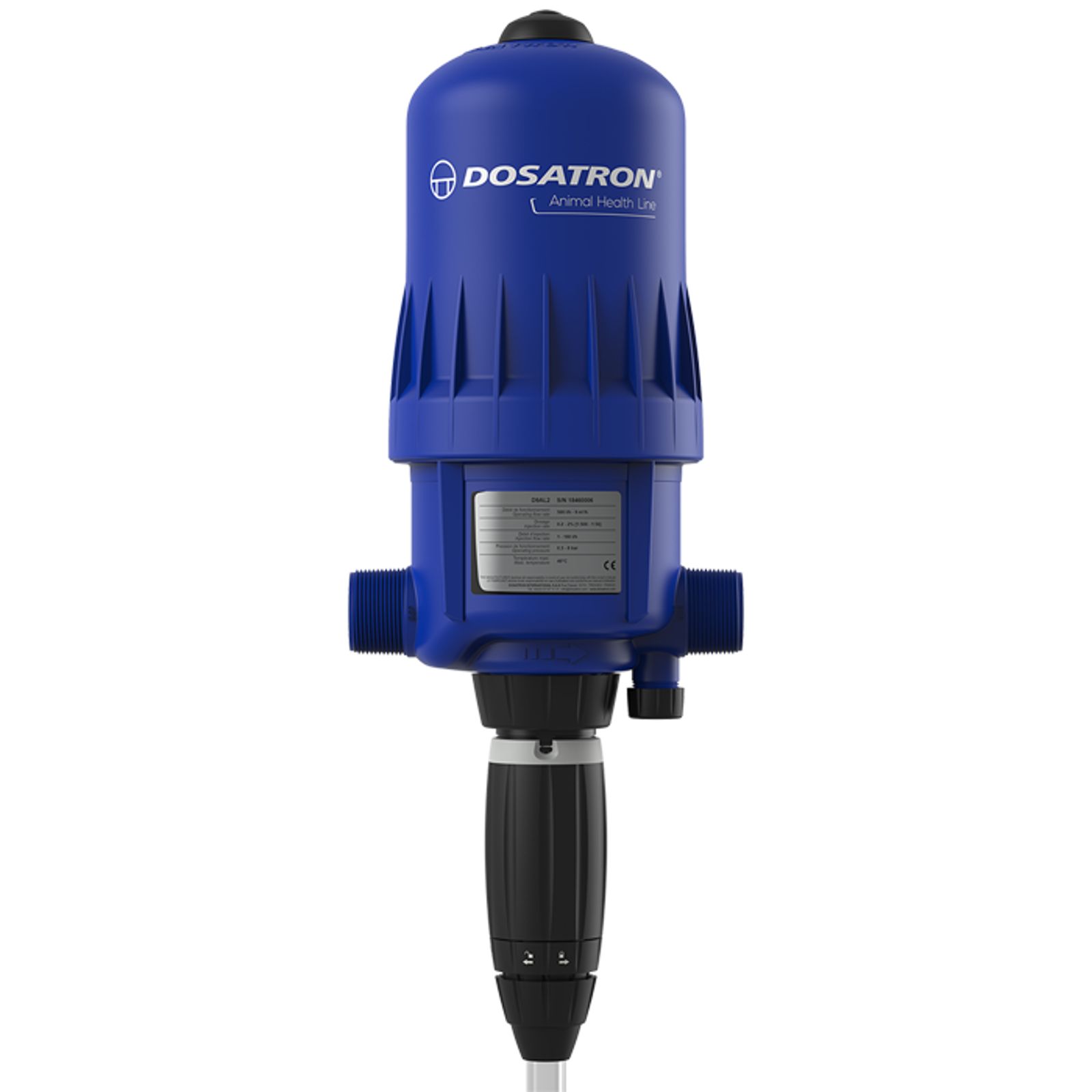

Dosatron D9AL2 Large Farm Dosing Pump
Water-powered dosing pump for large livestock farms, handling flows from 500 l/h up to 9 m3/h.
Dosatron D9AL2 Large Farm Dosing Pump
The D9AL2 is built for large farm operations needing higher water flow capacity than the standard D25 range. It uses the same proportional, water-powered dosing principle, injecting additive directly in line with water passing through the pump, independent of pressure or flow variation.
Description
The Dosatron D9AL2 is built for large farm operations needing higher water flow capacity than the standard D25 range. It uses the same proportional, water-powered dosing principle as the rest of the Animal Health Line, injecting additive directly in line with the water passing through the pump, independent of pressure or flow variation.
It provides an injection range of 0.2-2% (1:500 to 1:50) across a water flow range of 500-9,000 l/h and operating pressure of 0.30-8 bar, with a 1.7 litre stroke volume and NPT-BSP 1″1/2 M connections sized for larger water lines.
It suits vaccination, medication, acidification and supplementation on large pig, poultry and cattle operations.
Why Use This
Built for large farm water demand
Handles up to 9,000 l/h, well above the standard D25 range, for large pig, poultry and cattle operations.
Dosing accuracy holds at scale
Injects additive proportionally to water flow regardless of pressure or flow variation, keeping treatment programmes consistent.
Applications
- Large pig, poultry and cattle operations — vaccination, medication, acidification and supplementation
- Farms with higher water flow demand than the standard D25 range can handle — up to 9,000 l/h
- Installations needing dosing accuracy independent of flow or pressure fluctuation
FAQ
Why choose the D9AL2 over the standard D25 range?
The D9AL2 is built for large farm operations needing higher water flow capacity than the standard D25 range, handling up to 9,000 l/h.
Does dosing accuracy change with variations in water pressure or flow?
No. The D9AL2 injects additive directly in line with water passing through the pump, independent of pressure or flow variation.
What connection size does the D9AL2 use?
It uses NPT-BSP 1″1/2 M connections, sized for larger water lines.
