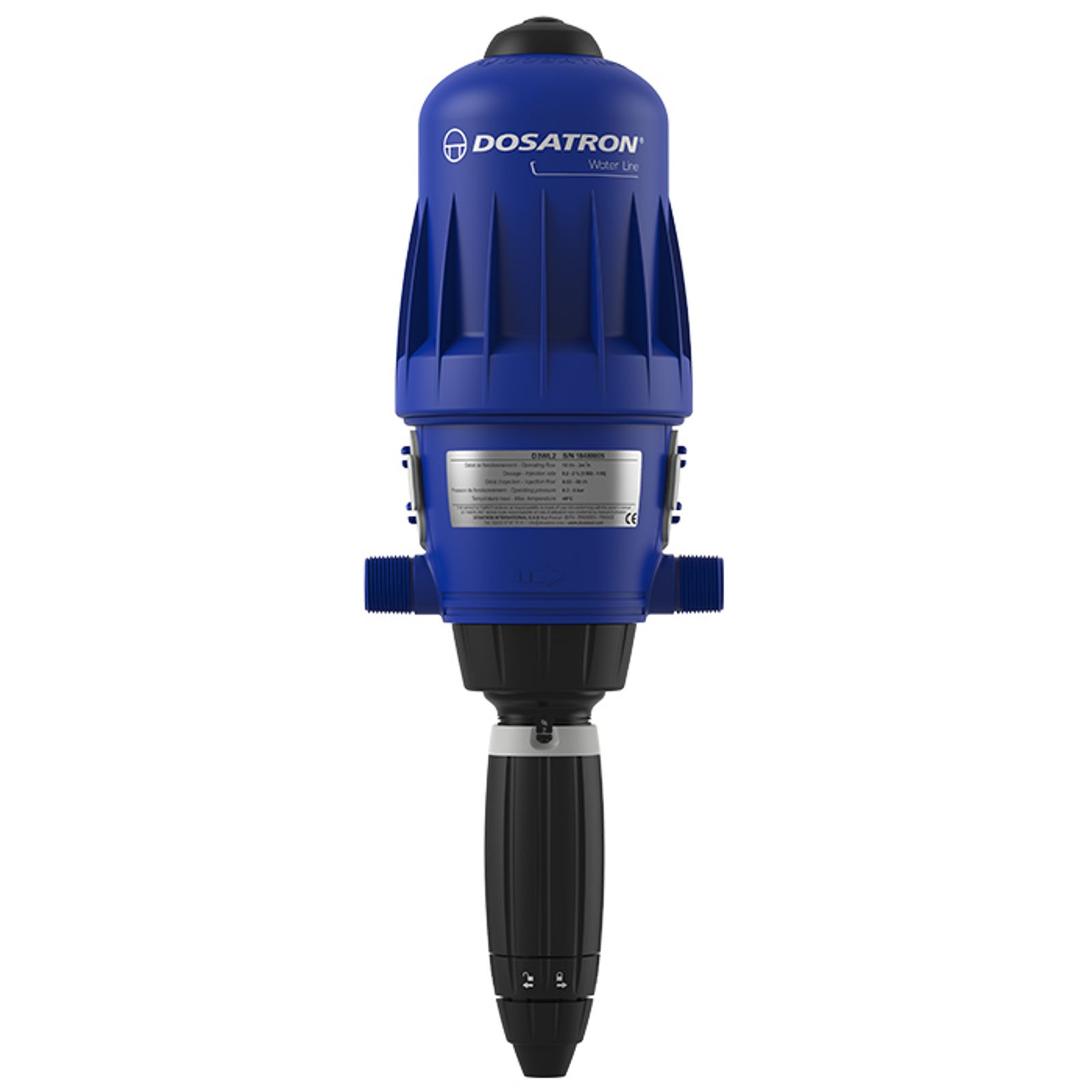

Dosatron D3WL2 Chlorine Dosing Pump
Water-powered chlorine and water treatment dosing pump, 0.2-2% dosing range, flow up to 3 m3/h.
Dosatron D3WL2 Chlorine Dosing Pump
The D3WL2 covers the standard dosing range within Dosatron's D3WL Water Line family, for flow rates from 10 to 3,000 l/h. As with the rest of the range, it features an optimised polypropylene casing and a choice of alkaline or acidic seals, suited to potabilisation, mineralisation, Legionella treatment and general disinfection.
Description
The Dosatron D3WL2 covers the standard dosing range within Dosatron’s D3WL Water Line family, for flow rates from 10 to 3,000 l/h. As with the rest of the range, it features an optimised polypropylene casing and a choice of alkaline or acidic seals.
It offers an injection range of 0.2-2% (1:500 to 1:50) across a water flow range of 10 l/h to 3 m3/h and operating pressure of 0.3-6 bar, with concentrated additive injection of 0.02-60 l/h and NPT-BSP 20×27 – 3/4″ M connections.
It suits potabilisation, water mineralisation, Legionella treatment and water system maintenance and disinfection.
Why Use This
Suited to routine water treatment
The 0.2-2% dosing range covers potabilisation, mineralisation, Legionella treatment and general system disinfection needs.
Matched to the product being dosed
A choice of alkaline or acidic seals lets the pump handle different water treatment chemicals reliably.
Applications
- Potabilisation and water mineralisation programmes
- Legionella treatment in water systems
- General water system maintenance and disinfection
FAQ
How does the D3WL2 compare to the D3WL3000 within the Water Line?
The D3WL2 covers the standard dosing range at 0.2-2%, compared to the D3WL3000’s finer 0.03-0.3% micro-dosing range, while sharing the same water flow range and connections.
Does the D3WL2 support both alkaline and acidic dosing products?
Yes. It features a choice of alkaline or acidic seals.
What is the D3WL2 used for?
It suits potabilisation, water mineralisation, Legionella treatment and water system maintenance and disinfection.
