Dosatron D25AL2-N Medicator
The New Standard water-powered medicator for livestock, dosing 1-2% through drinking water without electricity.

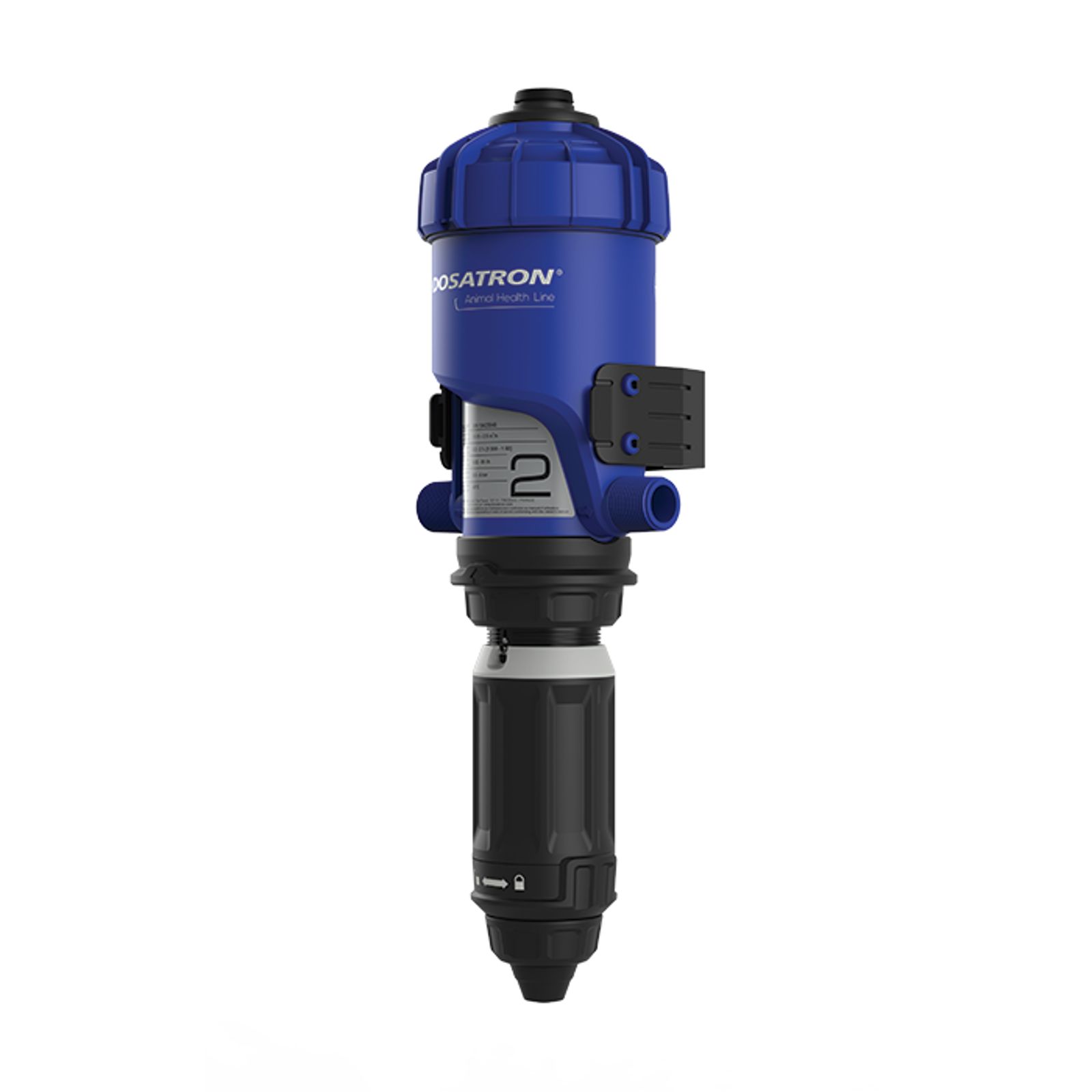

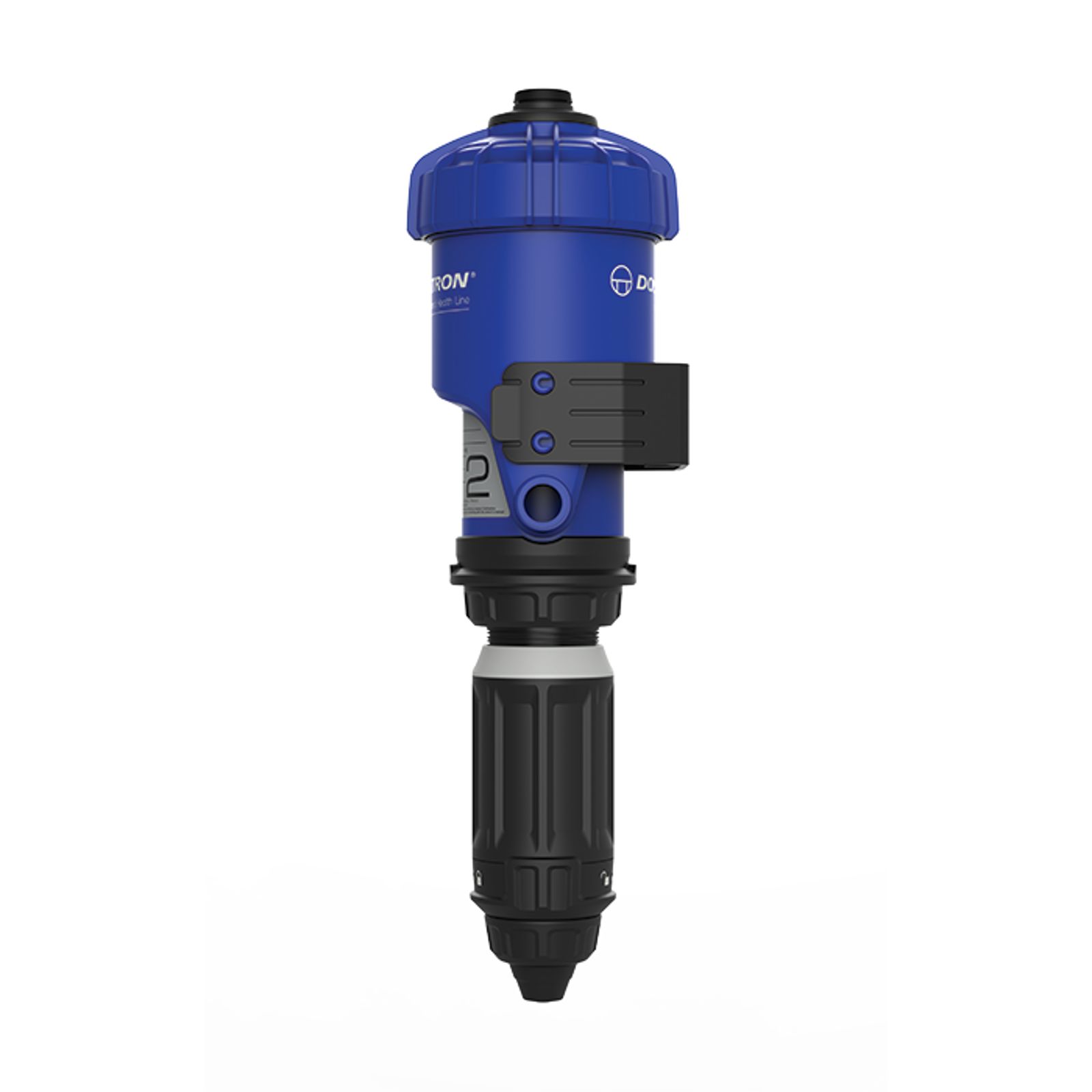

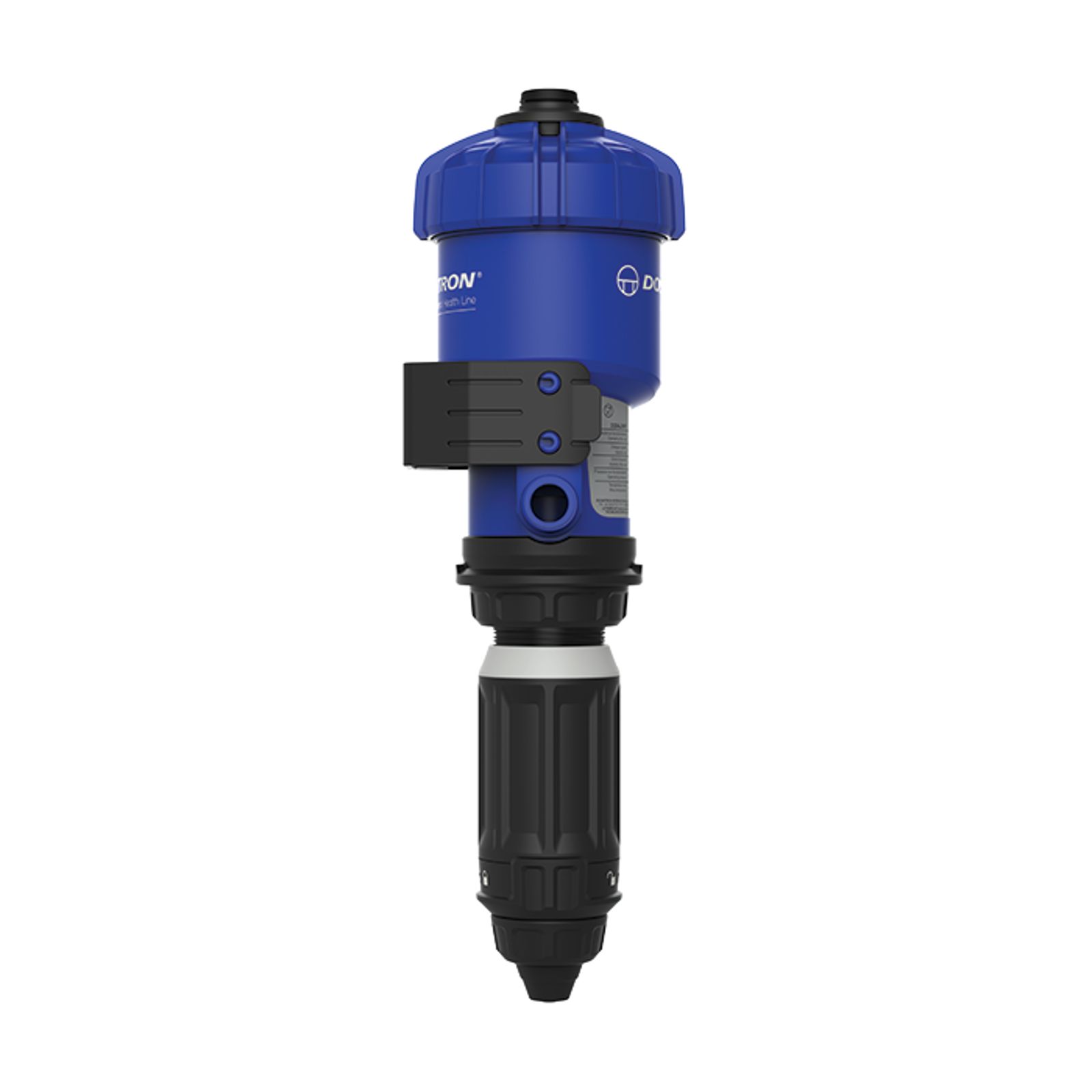

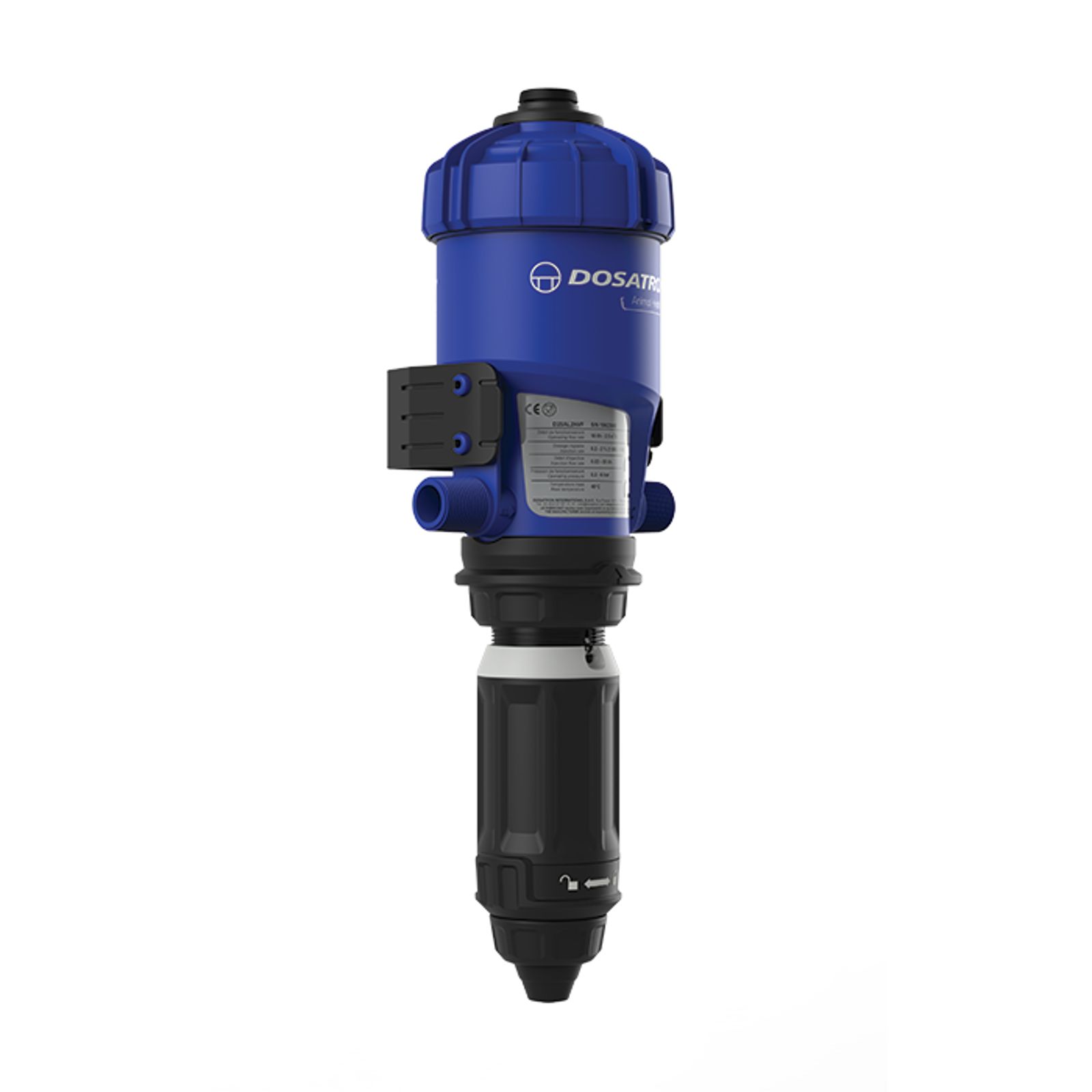

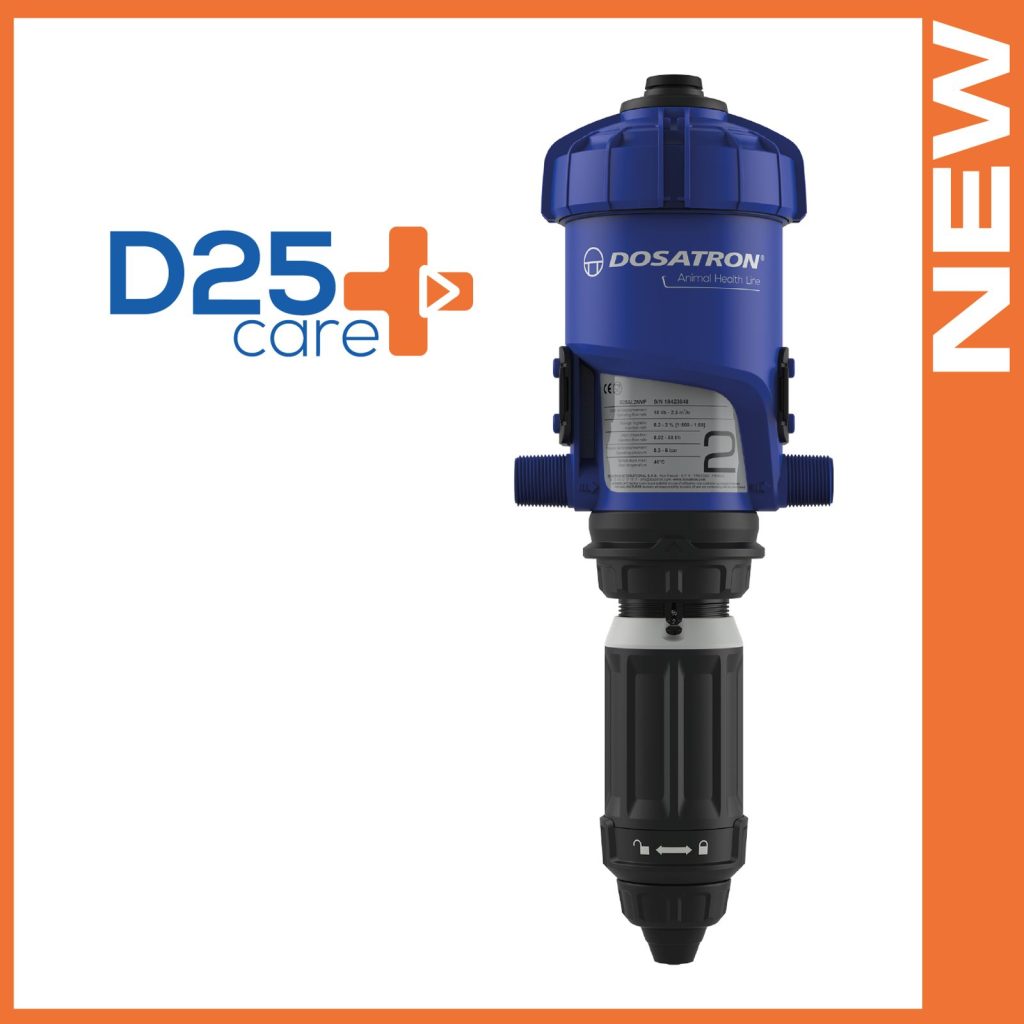

Dosatron D25AL2-N Medicator
The D25AL2-N is part of Dosatron's D25+ care range, positioned as the new standard medicator for the Animal Health Line. It draws in a concentrated additive and injects it proportionally into the drinking water supply, using only water pressure as its power source, with no electricity needed.
Description
The Dosatron D25AL2-N is part of Dosatron’s “D25+ care” range, positioned as the new standard medicator for the Animal Health Line. It draws in a concentrated additive and injects it proportionally into the drinking water supply, using only water pressure as its power source and requiring no electricity.
It offers an injection range of 1-2% (1:100 to 1:50) across a water flow range of 10-2,500 l/h and operating pressure of 0.30-6 bar, with a 0.45 litre stroke volume and NPT-BSP 3/4″ M connections for straightforward inline installation.
It is used for vaccination, medication, acidification and supplementation through drinking water on pig, poultry and cattle farms.
Why Use This
No electricity required
Uses only water pressure to draw and inject additive, simplifying installation in barns and drinking water lines.
Proportional accuracy
Injects additive in direct proportion to water flow, keeping dosing consistent for vaccination, medication, acidification and supplementation programmes.
Applications
- Pig, poultry and cattle farms — vaccination, medication, acidification and supplementation via drinking water
- Farms without electrical supply at the dosing point — powered entirely by water pressure
- Standard medicator applications within the D25+ care range
FAQ
What power source does the D25AL2-N use?
It uses only water pressure as its power source, requiring no electricity.
What is the dosing accuracy of the D25AL2-N?
It offers an injection range of 1-2%, equivalent to 1:100 to 1:50.
What water conditions does the D25AL2-N need to operate?
It operates across a water flow range of 10-2,500 l/h and an operating pressure of 0.30-6 bar.
What livestock is the D25AL2-N suited to?
It is used for vaccination, medication, acidification and supplementation through drinking water on pig, poultry and cattle farms.
