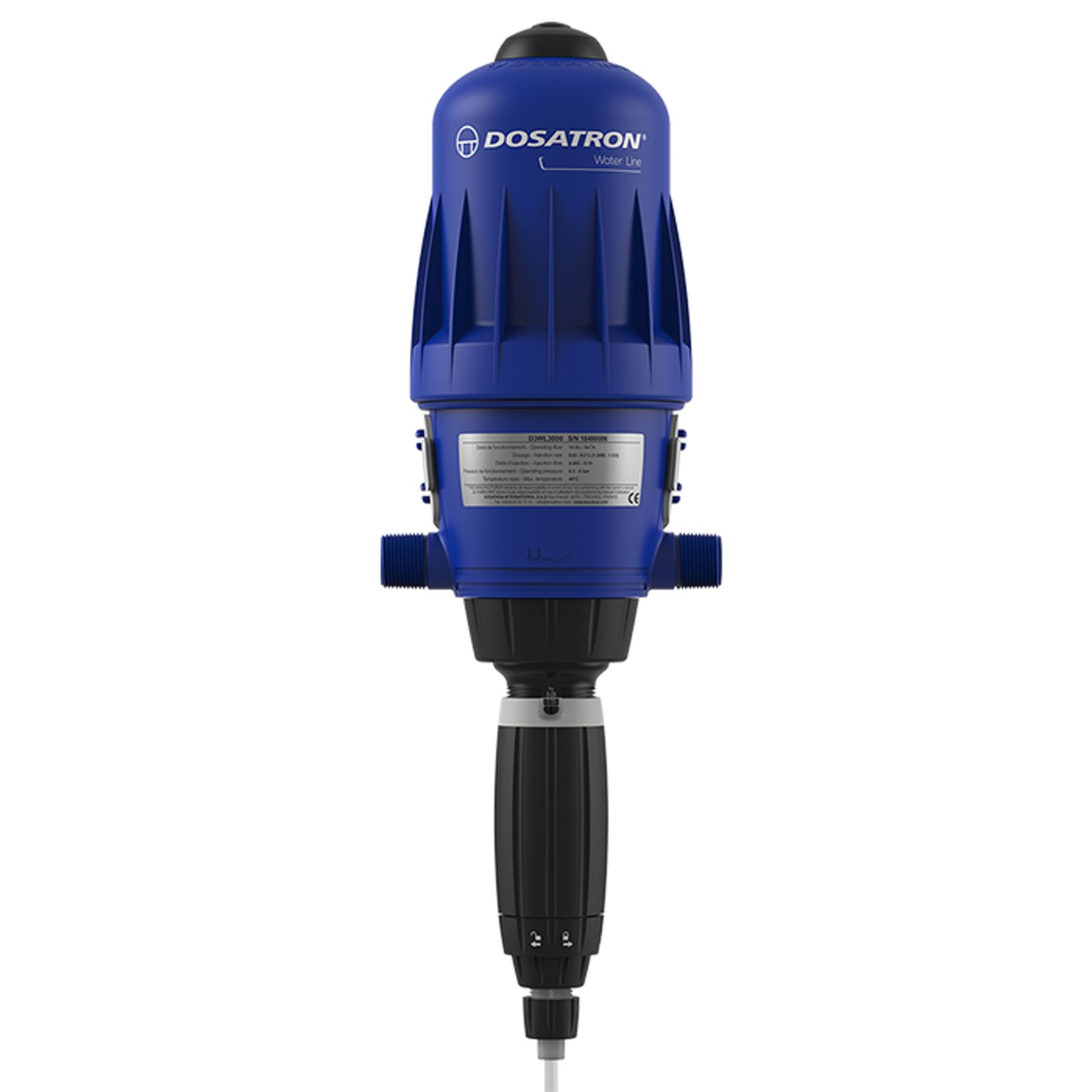

Dosatron D3WL3000 Chlorine Dosing Pump
Water-powered chlorine and water treatment dosing pump for micro-dosing applications, 0.03-0.3% range.
Dosatron D3WL3000 Chlorine Dosing Pump
The D3WL3000 is part of Dosatron's Water Line, meeting dosing needs for flow rates from 10 to 3,000 l/h. It features an optimised polypropylene pump casing, highly ergonomic dosage adjustment and a choice of seals for alkaline or acidic products, suited to potabilisation, mineralisation, Legionella treatment and disinfection.
Description
The Dosatron D3WL3000 is part of Dosatron’s Water Line, meeting dosing needs for flow rates from 10 to 3,000 l/h. It features an optimised polypropylene pump casing, highly ergonomic dosage adjustment and a choice of seals for alkaline or acidic products.
It provides a micro-dosing injection range of 0.03-0.3% (1:3000 to 1:333) across a water flow range of 10 l/h to 3 m3/h and operating pressure of 0.3-6 bar, with concentrated additive injection of 0.003-9 l/h and NPT-BSP 20×27 – 3/4″ M connections.
It suits potabilisation, water mineralisation, Legionella treatment and general water system disinfection.
Why Use This
Precise micro-dosing
The 0.03-0.3% injection range is suited to potabilisation, Legionella treatment and other applications needing very fine chlorine dosing.
Matched to the product being dosed
A choice of alkaline or acidic seals lets the pump handle different water treatment chemicals reliably.
Applications
- Potabilisation — treatment of water for drinking supply
- Water mineralisation programmes
- Legionella treatment and general water system disinfection
FAQ
What dosing precision does the D3WL3000 offer?
It offers a fine, micro-dosing injection range of 0.03-0.3% (1:3000 to 1:333), with concentrated additive injection as low as 0.003 l/h.
Does the D3WL3000 work with both alkaline and acidic products?
Yes. It offers a choice of seals for alkaline or acidic products.
What applications is the D3WL3000 used for?
It suits potabilisation, water mineralisation, Legionella treatment and general water system disinfection.
