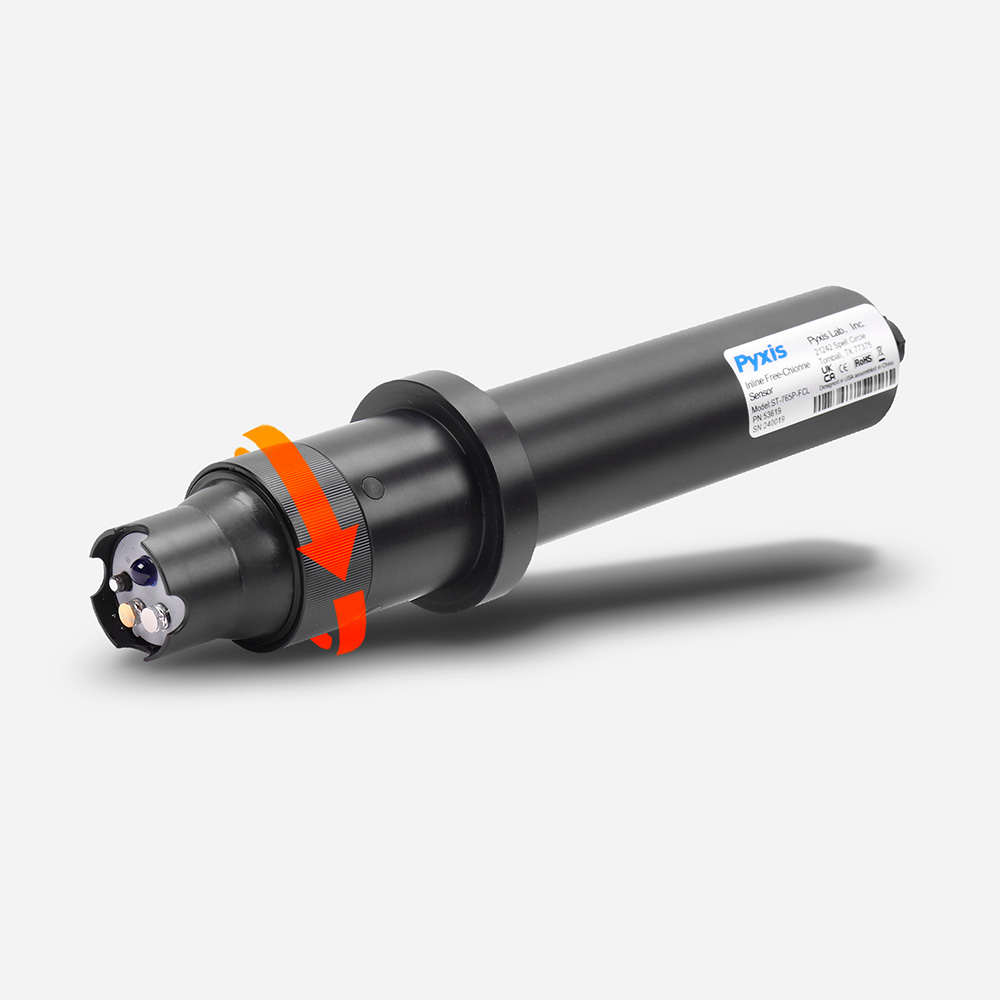

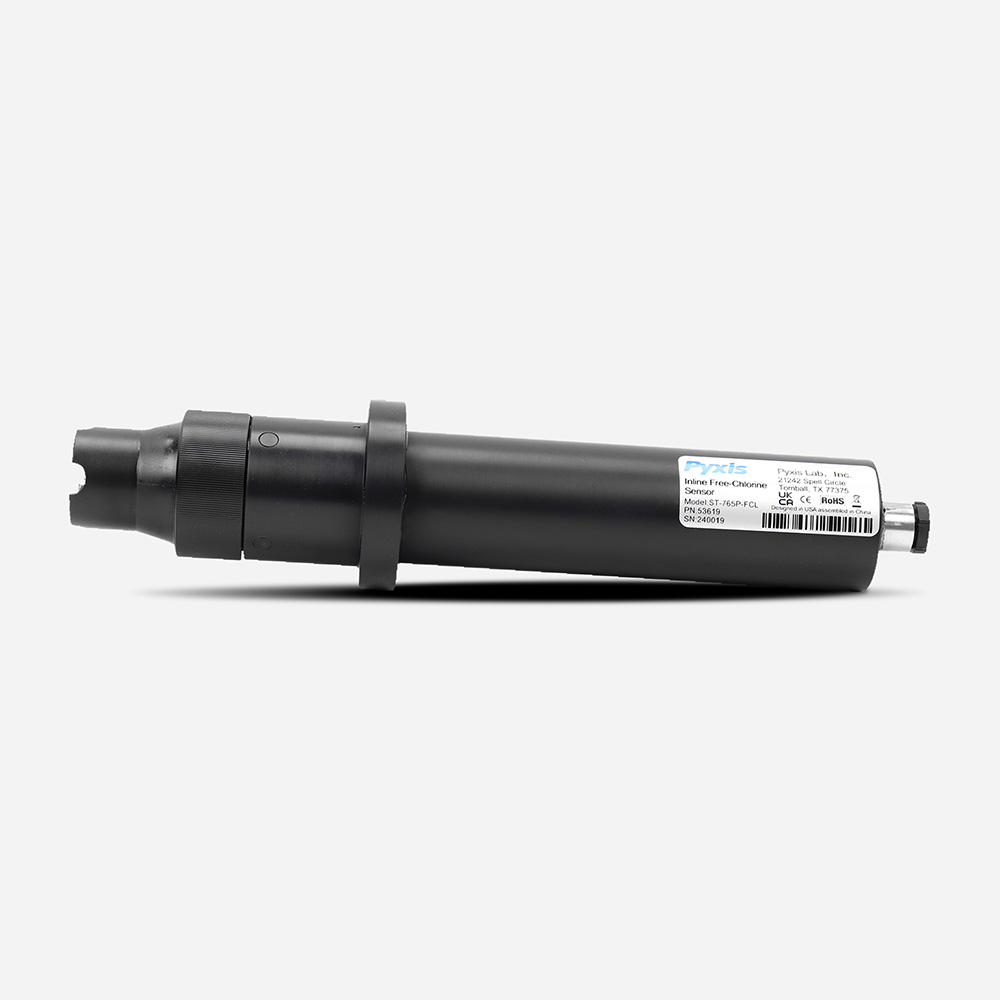

Pyxis ST-765P-FCL Free Chlorine + pH Sensor (CPVC)

CPVC oxidizer + pH + temperature sensor measuring Free Chlorine 0.00-5.00ppm (auto-range) with pH compensation to pH 9.0. Replaceable front-loading reference electrode, Bluetooth-ready with MA-CR adapter.

Pyxis Lab
Electrochemical Sensor
Water Treatment Line

Pyxis ST-765P-FCL Free Chlorine + pH Sensor (CPVC)

Model:
ST-765P-FCL
Brand:
Pyxis Lab

The ST-765P-FCL is a CPVC-bodied, membrane-less sensor that measures Free Chlorine alongside pH and temperature in a single probe, using Pyxis Lab's bare-gold electrochemical detection technology. Internal pH compensation up to pH 9.0 keeps oxidizer readings consistent with DPD wet chemistry and compliant with USEPA-334.0 and ISO-7393 methodology. The replaceable, front-loading reference electrode avoids the membrane and gel replacement of older amperometric designs, giving a typical service life of up to 2 years.

Front-loading replaceable electrode — avoids membrane and gel replacement, with reduced polarization time on startup
DPD-consistent accuracy — pH compensation up to pH 9.0 keeps readings aligned with USEPA-334.0 / ISO-7393 methodology
Front-loading replaceable electrode — avoids membrane and gel replacement, with reduced polarization time on startup

Description

The ST-765P-FCL is a CPVC-bodied, membrane-less sensor that measures Free Chlorine alongside pH and temperature in a single probe, using Pyxis Lab’s bare-gold electrochemical detection technology. Internal pH compensation up to pH 9.0 keeps oxidizer readings consistent with DPD wet chemistry and compliant with USEPA-334.0 and ISO-7393 methodology, so readings track what a manual test kit would show.

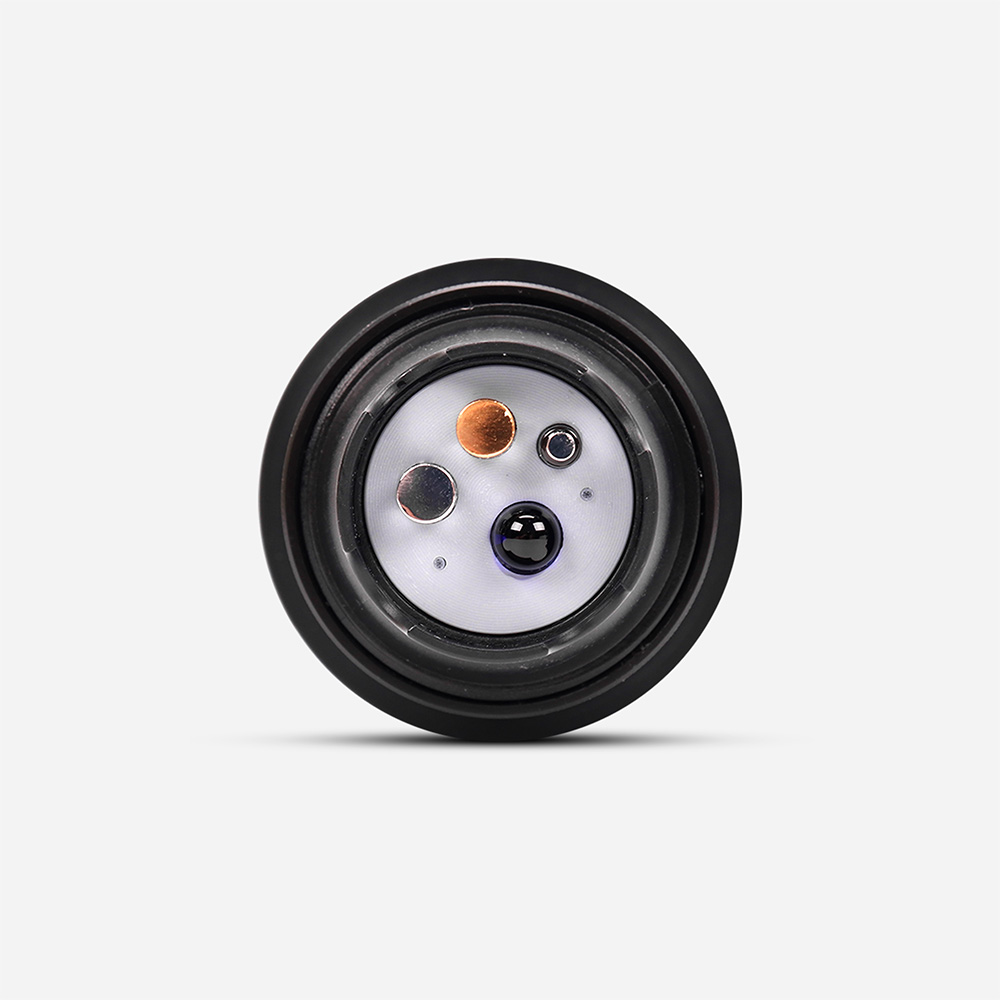

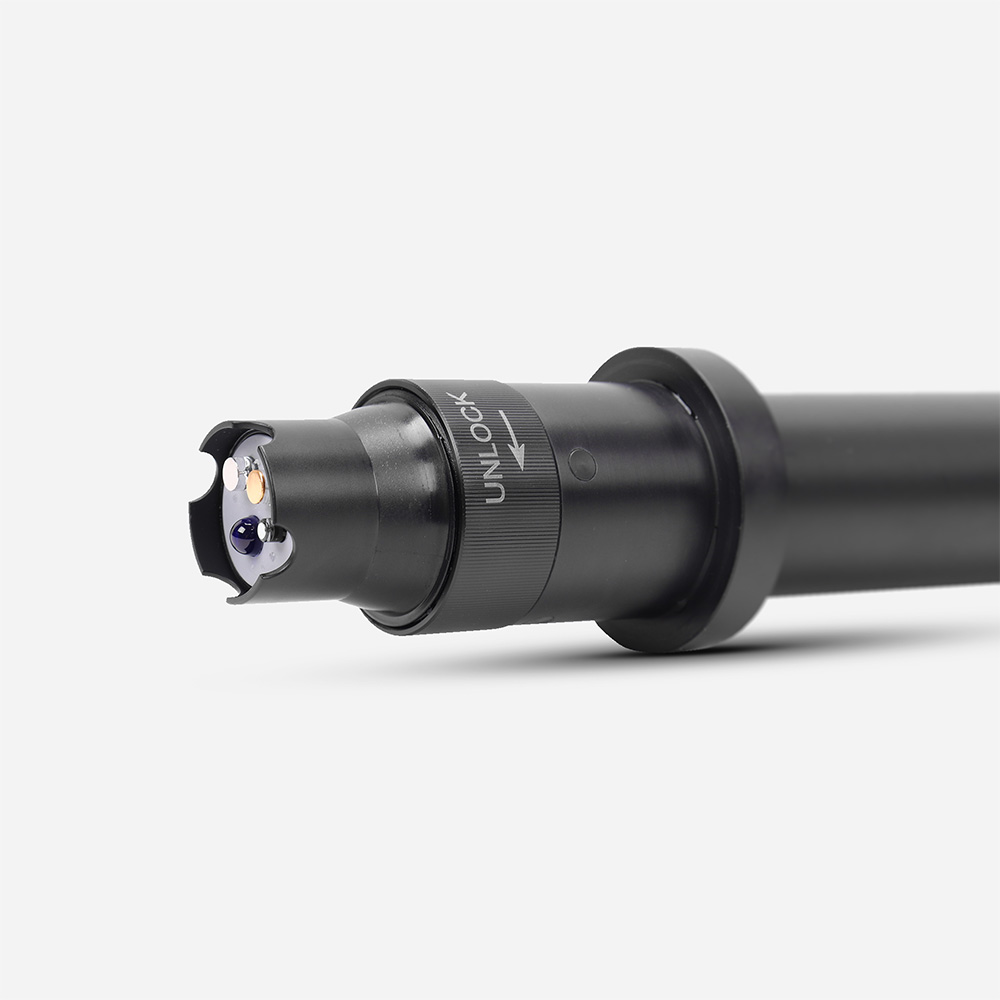

The reference electrode assembly is replaceable and front-loading, developed independently by Pyxis Lab to avoid the membrane and gel replacement associated with older amperometric designs. This gives reduced polarization time on startup and a typical electrode service life of up to 2 years, with a flat front-end that resists fouling and is straightforward to clean in place.

Dual isolated 4-20mA outputs plus RS-485 Modbus support integration with a PLC, SCADA, or third-party controller, and the optional MA-CR Bluetooth Adapter adds wireless calibration and diagnostics via the uPyxis mobile app. The CPVC body is suited to clean water applications: potable water, secondary water supply, domestic water, and decorative water features.

Why Use This

DPD-Consistent Accuracy

Internal pH and temperature compensation up to pH 9.0 keeps Free Chlorine readings aligned with DPD wet chemistry and USEPA-334.0 / ISO-7393 methodology.

Lower Maintenance

The replaceable, front-loading reference electrode avoids membrane and gel replacement, with a typical service life of up to 2 years and reduced startup polarization time.

Flexible Integration

Dual isolated 4-20mA outputs and RS-485 Modbus connect to a PLC, SCADA, or third-party controller, with optional Bluetooth calibration via the MA-CR adapter.

Applications

  • Potable water treatment — continuous free chlorine and pH monitoring in clean water systems
  • Secondary and domestic water supply monitoring — CPVC body suited to non-industrial clean water applications
  • Decorative water features — free chlorine control for fountains and similar installations
  • PLC/SCADA-integrated dosing control — dual 4-20mA and RS-485 outputs support automated chlorine dosing

FAQ

What does the ST-765P-FCL measure?

It measures Free Chlorine alongside pH and temperature in a single probe, with an oxidizer precision of ±0.01mg/L or 1% of value.

How does the electrode compare to older chlorine sensors?

Its bare-gold electrochemical technology uses a replaceable, front-loading reference electrode that avoids the membrane and gel replacement of older amperometric designs, giving reduced polarization time and a typical service life of up to 2 years.

Is it certified or compliant with any standards?

Yes. It’s compliant with USEPA-334.0 and ISO-7393 methodology, and carries CE / RoHS regulation.

What water types is this sensor suited for?

The CPVC body suits clean water applications: potable water, secondary water supply, domestic water, and decorative water features.

Download

D25 Product Datasheet
PDF · 1.2 MB
Installation Manual
PDF · 0.8 MB
