Pyxis ST-728 Inline Stainless Steel Ultra-Low Conductivity + Temperature Analyser (Lowest Range)
Stainless steel inline ultra-low conductivity + temperature analyser (0.02-10uS/cm). Dual 4-20mA + RS-485, 8-pin.
Pyxis ST-728 Inline Stainless Steel Ultra-Low Conductivity + Temperature Analyser (Lowest Range)
The Pyxis ST-728 is a stainless steel inline conductivity and temperature analyser offering the lowest range in the ultra-low series, at 0.02-10uS/cm. It reports conductivity and temperature from a single sensor, with dual 4-20mA analog outputs plus RS-485 Modbus via an 8-pin connector for integration into process control systems.
Description
The Pyxis ST-728 is a stainless steel inline conductivity and temperature analyser offering the lowest range in the ultra-low series, at 0.02-10uS/cm. It’s built for the purest process water streams, where even the finer 0.02-200uS/cm range of other ultra-low models would not provide adequate resolution.

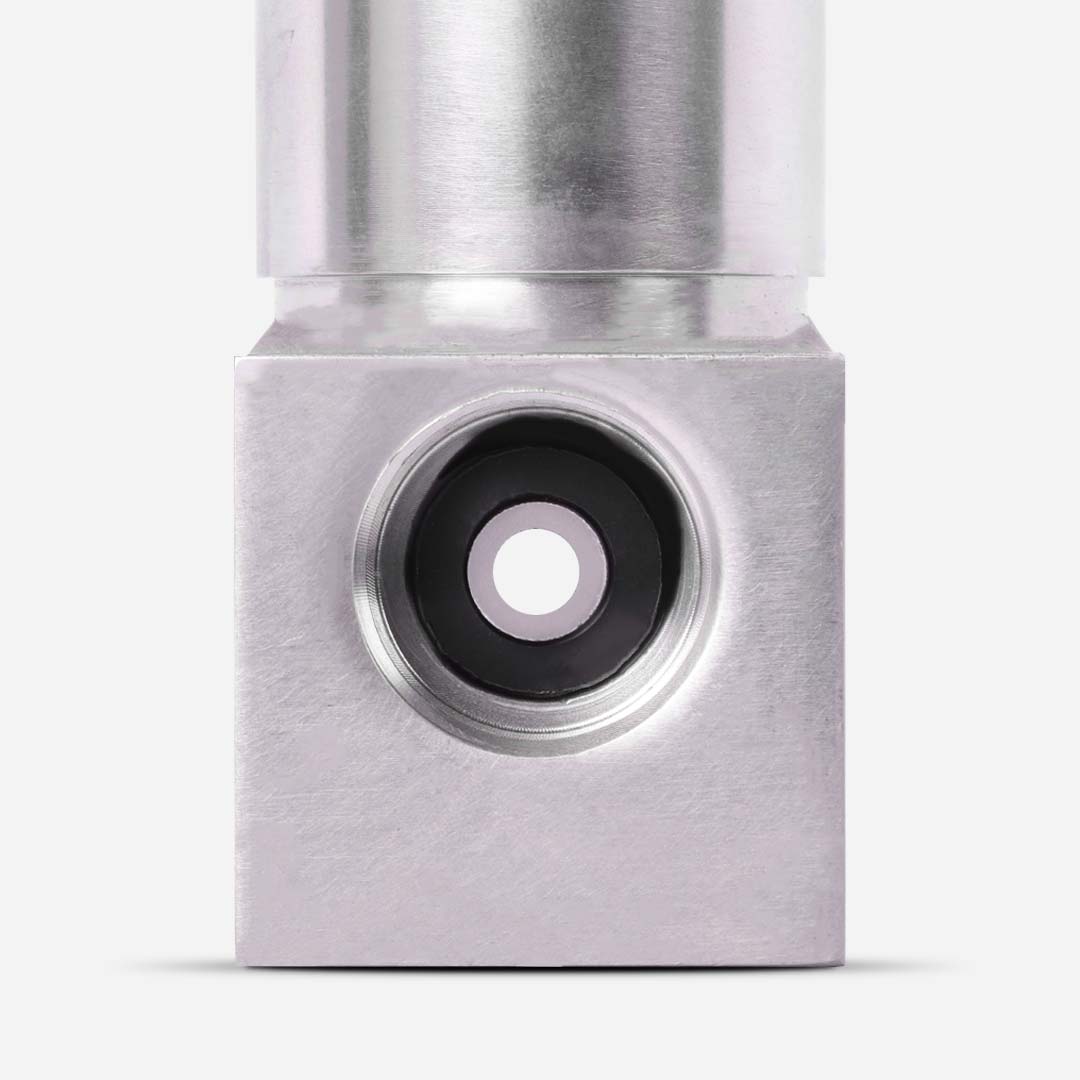

It reports conductivity and temperature from a single sensor, housed in a stainless steel body for durability in industrial settings.
Dual 4-20mA analog outputs plus RS-485 Modbus via an 8-pin connector support integration into process control systems.
Why Use This
Ultra-High-Purity Monitoring
The lowest range in the ultra-low series (0.02-10uS/cm) is built for monitoring the purest process water streams.
Durable Construction
Stainless steel body suits demanding industrial installations.
Flexible System Integration
Dual 4-20mA outputs and RS-485 Modbus support integration with control systems.
Applications
- Ultrapure water monitoring — for the purest process streams requiring maximum resolution
- Semiconductor and pharmaceutical water systems — tracking trace conductivity levels
- Final-stage RO/deionization monitoring — verifying purity at the lowest conductivity levels
FAQ
What is the measurement range of the ST-728?
It measures 0.02-10uS/cm, the lowest range in the ultra-low conductivity series, built for the purest process water streams.
How does it compare to the ST-724 and ST-725?
It has a tighter top end than both — 10uS/cm compared to 1,000uS/cm for the ST-724 and 200uS/cm for the ST-725 — giving finer resolution for the purest streams.
Does it measure temperature too?
Yes, from the same inline sensor as conductivity.
What outputs are available?
Dual 4-20mA analog outputs plus RS-485 Modbus, via an 8-pin connector.
