Pyxis ST-587SS-T Inline Drop-In Stainless Steel PTSA + Turbidity Sensor (requires ST-009 Tee)
Drop-in design stainless steel high-pressure PTSA + turbidity sensor (0-200ppb / 0-200NTU). Requires ST-009 stainless tee (sold separately). Dual 4-20mA + RS-485, 8-pin.
Pyxis ST-587SS-T Inline Drop-In Stainless Steel PTSA + Turbidity Sensor (requires ST-009 Tee)

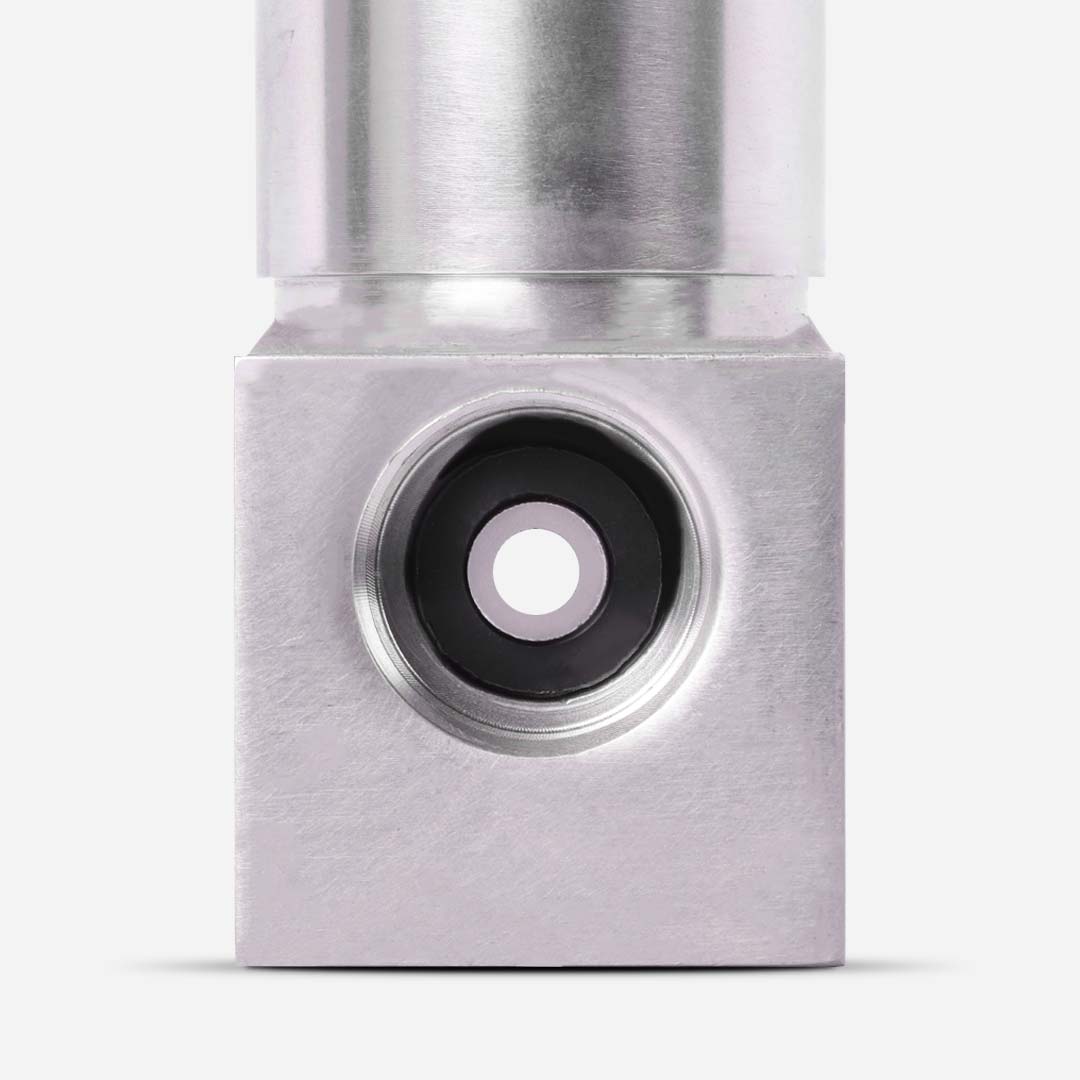

The Pyxis ST-587SS-T is a drop-in inline dual-parameter sensor with a stainless steel body for high-pressure service, measuring PTSA and turbidity together with automatic colour/turbidity compensation across a 0-200ppb / 0-200NTU range. It must be installed with the ST-009 stainless tee, sold separately, and outputs dual 4-20mA analog and RS-485 Modbus signals through an 8-pin connector.
Description
The Pyxis ST-587SS-T is a drop-in inline dual-parameter sensor with a stainless steel body for high-pressure service, measuring PTSA and turbidity together with automatic colour/turbidity compensation across a 0-200ppb / 0-200NTU range.
It combines inhibitor dose tracking and turbidity measurement in one high-pressure-rated probe, reducing the number of separate instruments needed on a demanding inline installation.
It must be installed with the ST-009 stainless tee, sold separately, and outputs dual 4-20mA analog and RS-485 Modbus signals through an 8-pin connector.
Why Use This
Built for High-Pressure Service
A stainless steel drop-in body is rated for high-pressure inline installations when paired with the ST-009 stainless tee.
Two Parameters, One Probe
Measuring PTSA and turbidity together with automatic compensation reduces the number of insertion points needed on the process line.
Standard Control Integration
Dual 4-20mA analog and RS-485 Modbus outputs through an 8-pin connector allow straightforward wiring into plant control systems.
Applications
- High-pressure inline installations requiring combined PTSA and turbidity monitoring
- Inhibitor dose verification where turbidity compensation is needed for accuracy
- Installations paired with the ST-009 stainless tee
FAQ
Does this sensor come with the tee needed for installation?
No, it is a drop-in sensor design that must be installed with the ST-009 stainless tee, which is sold separately.
What does it measure?
It measures PTSA and turbidity together, with automatic colour/turbidity compensation, across a 0-200ppb / 0-200NTU range.
Is it rated for high-pressure service?
Yes, it has a stainless steel body built for high-pressure service.
How does it output to plant controls?
Output is dual 4-20mA analog and RS-485 Modbus through an 8-pin connector.
