Pyxis ST-565 Inline HST/HRA Sensor
Inline HST/HRA corrosion inhibitor tracer sensor (0-7.5ppm). 4-20mA + RS-485, 7-pin.
Pyxis ST-565 Inline HST/HRA Sensor

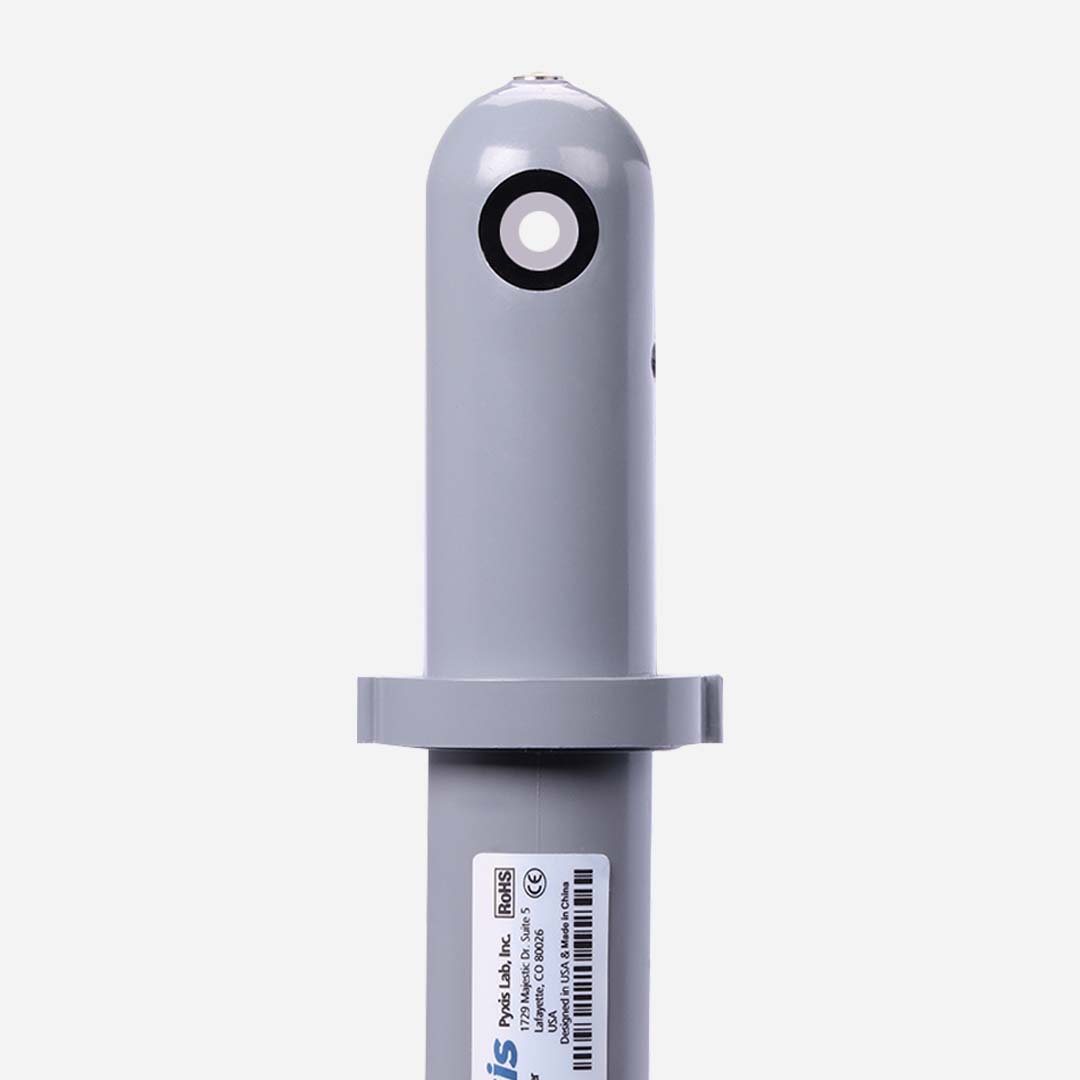

The Pyxis ST-565 is an inline sensor that measures tolyltriazole (TTA) / HST-HRA corrosion inhibitor levels, supporting closed-loop and cooling water treatment programmes. It reports concentration across a 0-7.5ppm range and communicates via 4-20mA analog output and RS-485 Modbus through a 7-pin connector.
Description
The Pyxis ST-565 is an inline tracer sensor that measures tolyltriazole (TTA) / HST-HRA corrosion inhibitor levels, supporting closed-loop and cooling water treatment programmes. Continuous inline measurement gives operators real-time visibility into corrosion inhibitor dosing, helping confirm that protective chemistries are being maintained at the intended concentration.
It reports concentration across a 0-7.5ppm range and communicates via a 4-20mA analog output and RS-485 Modbus digital signal, both wired through a 7-pin connector for integration with plant control and monitoring equipment.
This sensor is designed for treatment providers and facility operators managing closed-loop or cooling water systems that rely on TTA/HST-HRA corrosion inhibitor chemistries.
Why Use This
Continuous tracer monitoring
Measures tolyltriazole (TTA) / HST-HRA corrosion inhibitor levels in real time across a 0-7.5ppm range, giving operators direct visibility into treatment chemical performance.
Easy control system integration
Dual 4-20mA analog and RS-485 Modbus outputs through a 7-pin connector let the sensor feed data straight into existing SCADA or controller setups.
Applications
- Closed-loop water treatment systems — corrosion inhibitor monitoring for protective chemistries
- Cooling water treatment programmes — continuous TTA/HST-HRA tracer monitoring
- Corrosion inhibitor feed verification — confirms dosing at intended levels
- Control system integration — 4-20mA and RS-485 Modbus outputs for automated monitoring
FAQ
What does the ST-565 measure?
It measures tolyltriazole (TTA) / HST-HRA corrosion inhibitor concentration, used in closed-loop and cooling water treatment programmes.
What is its measurement range?
It covers a 0-7.5ppm range.
How is it installed?

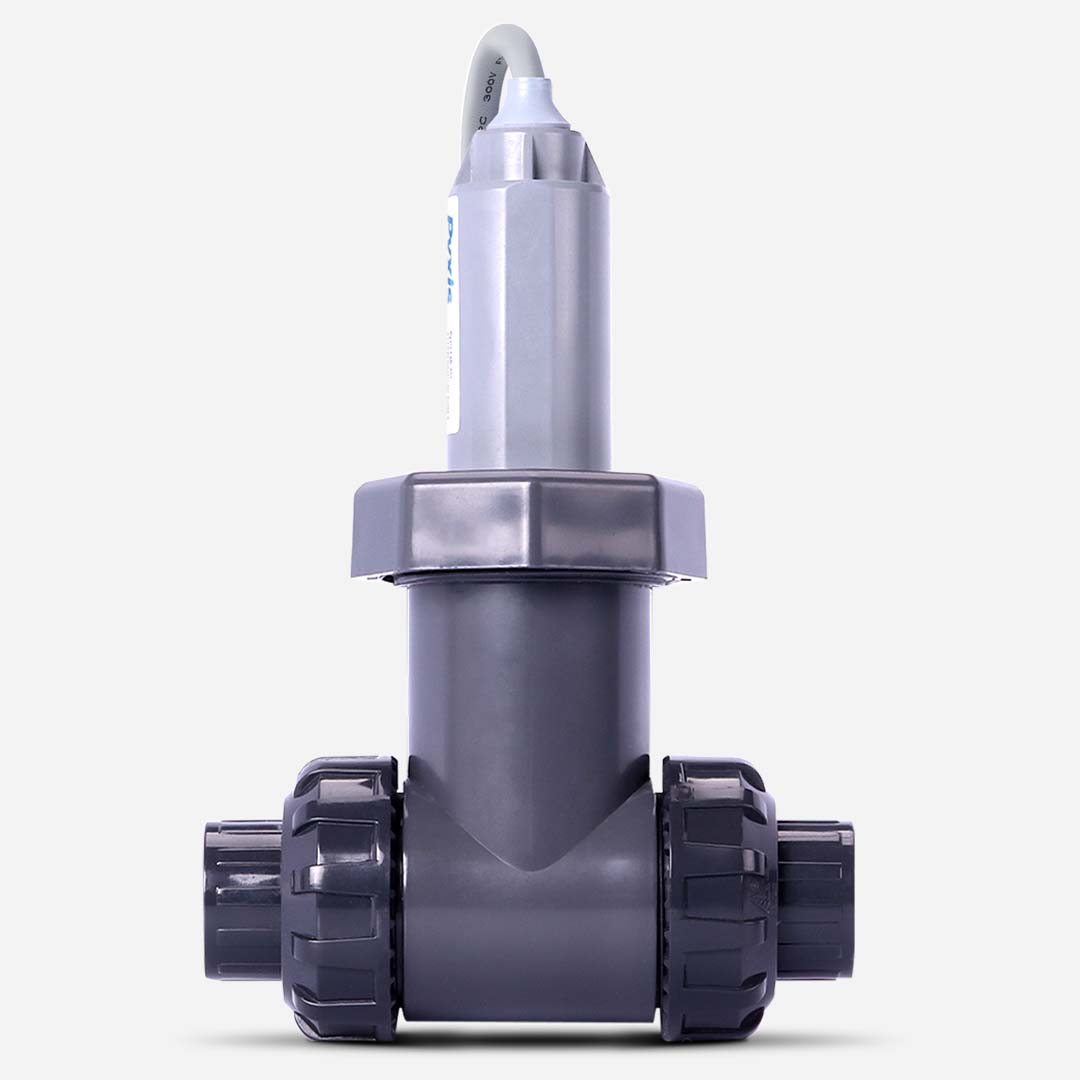

It is an inline sensor that mounts directly into the process water line for continuous monitoring.
How does it integrate with control systems?
It provides 4-20mA analog output and RS-485 Modbus communication through a 7-pin connector.
