Pyxis SP-710B Handheld Water Multimeter
Handheld multimeter measuring pH (0-14), ORP (±1,500mV), Conductivity (0-15,000uS/cm), PTSA (0-300ppb), and Fluorescein (0-600ppb), built for boiler and cooling tower use.
Pyxis SP-710B Handheld Water Multimeter

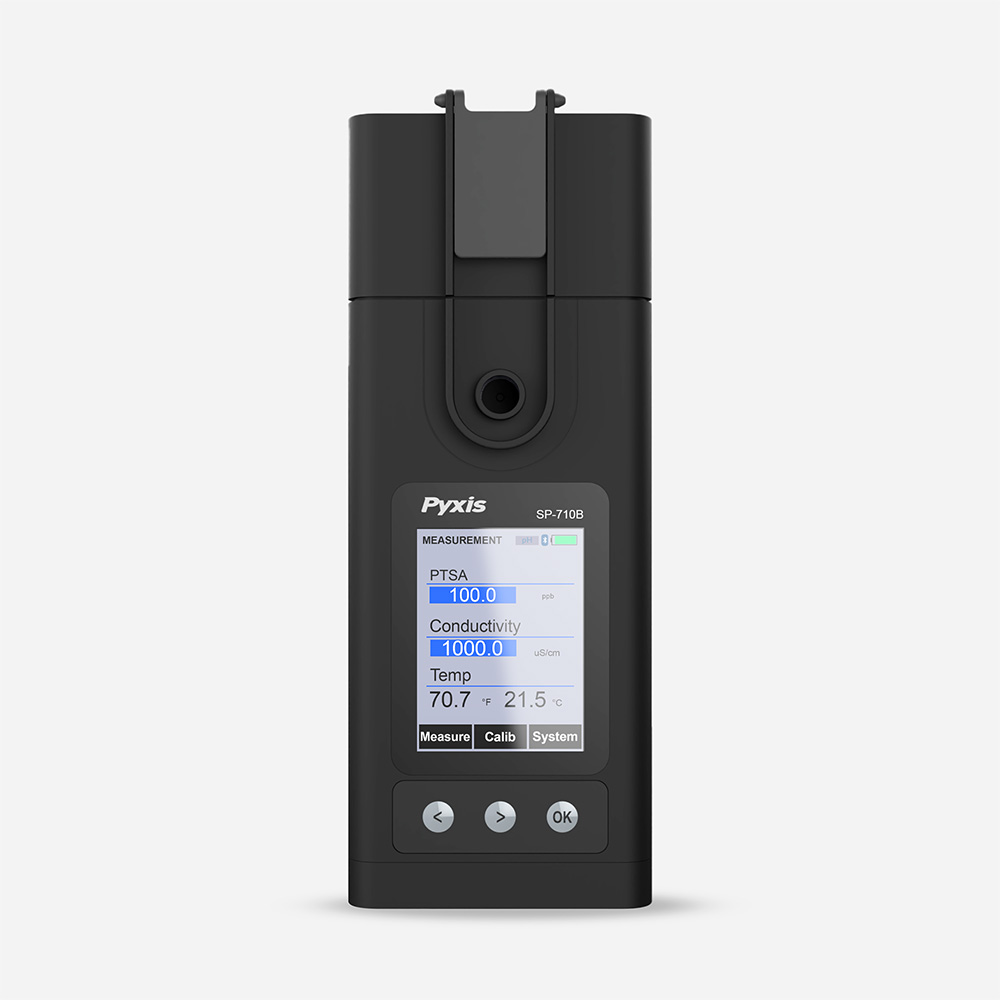

The Pyxis SP-710B is a handheld multimeter that measures up to six key water treatment parameters — pH, conductivity, PTSA, temperature, ORP, and fluorescein — in a single rugged, one-handed device. Built for boiler and cooling tower applications, it combines a waterproof, Bluetooth-enabled pH/ORP module with a cuvette-less optical platform that compensates for colour and turbidity interference. Wireless communication with the uPyxis app and long battery life make it well suited to demanding plant environments.
Description
The Pyxis SP-710B is a handheld multimeter that simultaneously measures up to six key water treatment parameters — pH, conductivity, PTSA, temperature, ORP, and fluorescein — in a single rugged, one-handed device. It was designed mainly for cooling tower and boiler tank applications and is built to be heat and melt resistant accordingly.

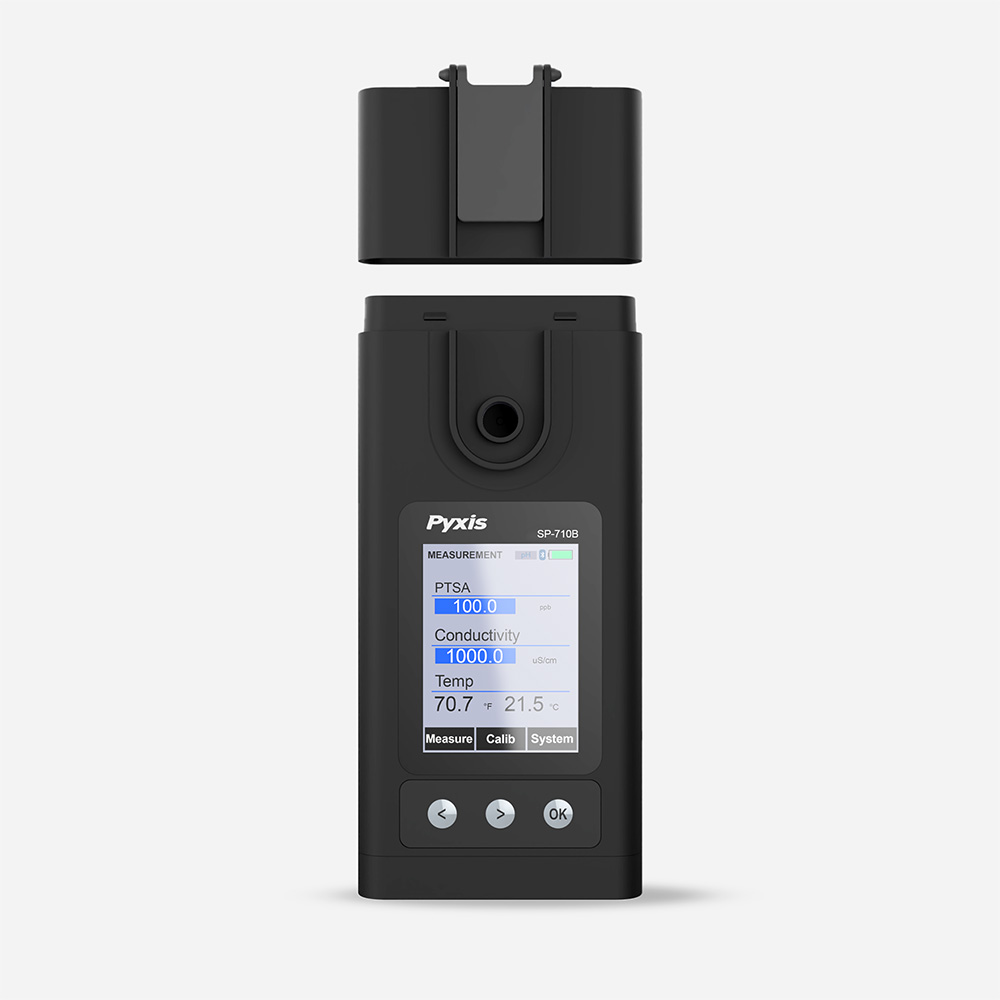

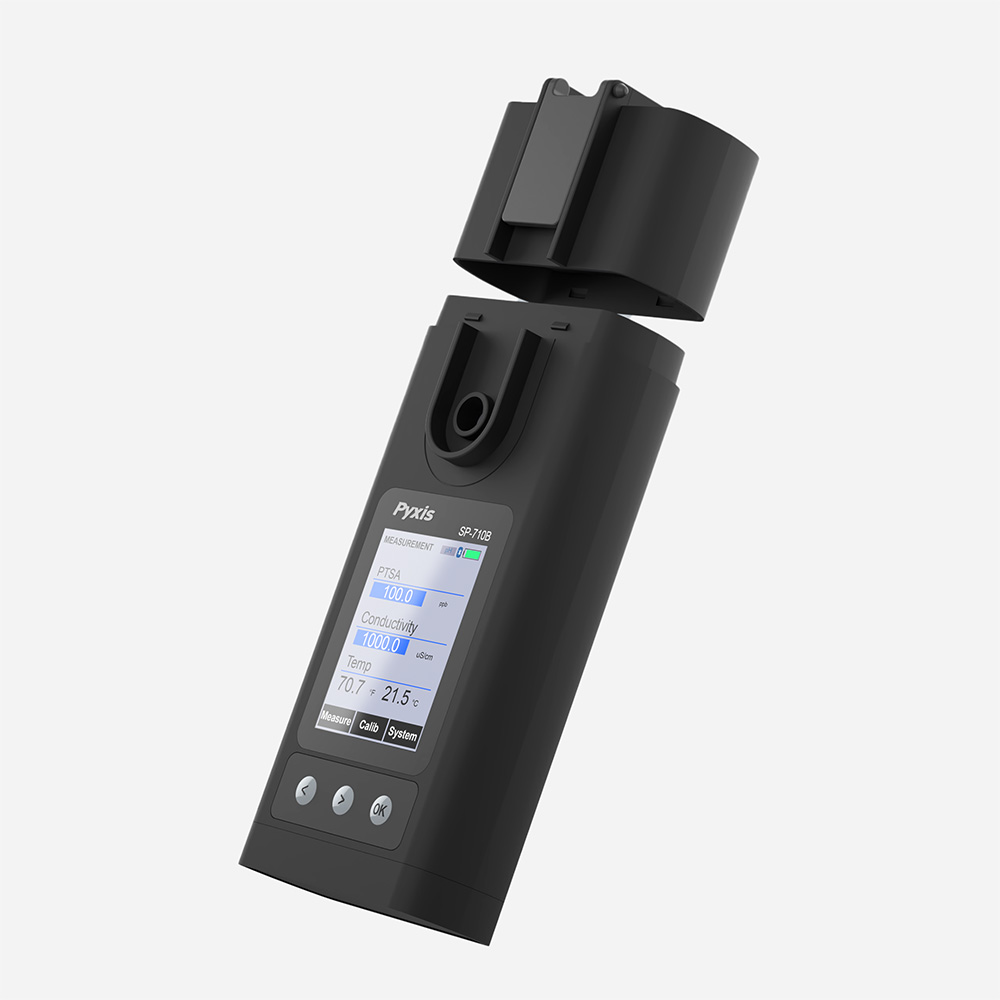

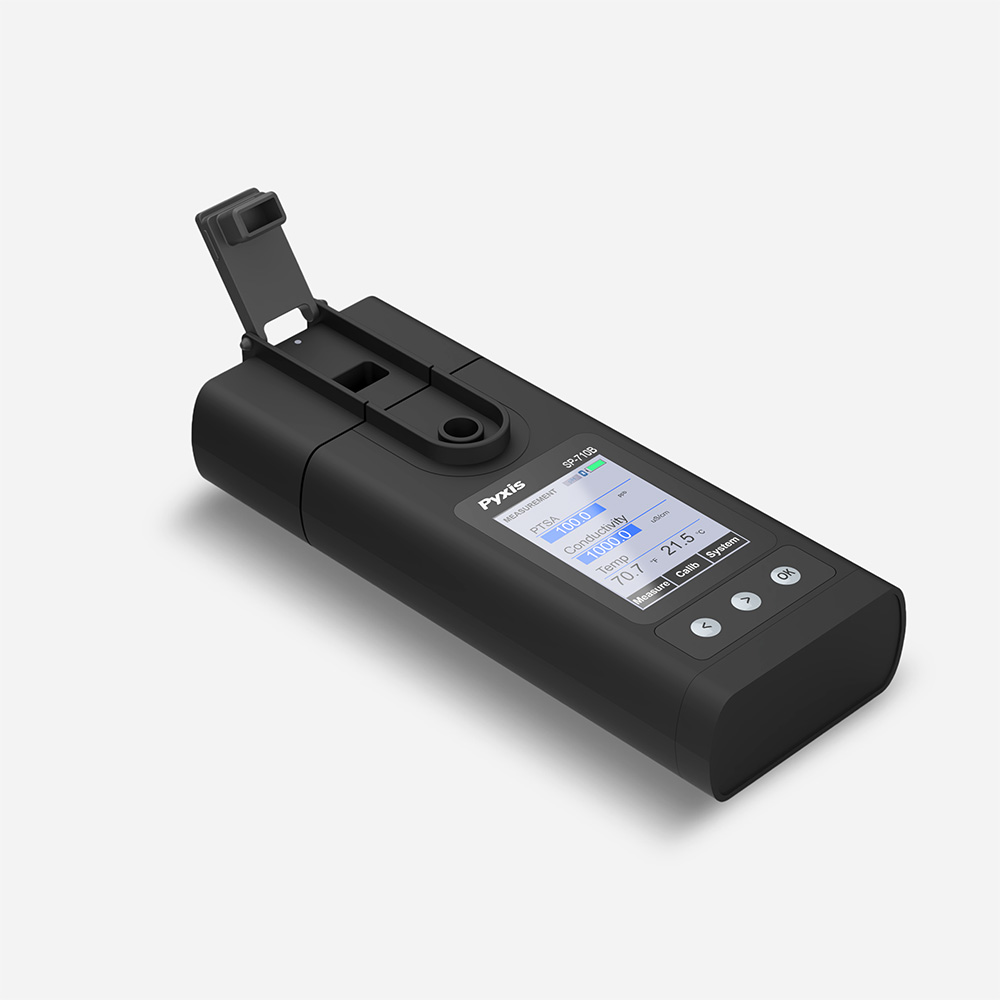

A fully potted, battery-powered pH/ORP module is Bluetooth-enabled and communicates wirelessly with the base unit, eliminating water and KCl contamination to the meter. The cuvette-less platform combines electrochemical and optical measurement, simultaneously compensating for colour and turbidity contamination during fluorescence testing for ±1ppb resolution.
Additional features include a fully moulded, waterproof screen, an integrated humidity sensor, intelligent sensor ageing detection, and storage for up to 8G of historical measurement data with time and location stamps, transferable via Bluetooth. It is rated IP67 and supports 10,000+ readings on a single charge.
Why Use This
Simplified Boiler & Cooling Tower Testing
Measures six critical parameters in one rugged, one-handed meter, reducing the number of instruments needed on site.
Reliable pH/ORP Readings
The fully potted, waterproof pH/ORP module eliminates water and KCl contamination that can skew results in traditional probes.
Field-Ready Data Management
Bluetooth connectivity and onboard data logging make it easy to track and transfer measurement history via the uPyxis app.
Applications
- Boiler tank monitoring — heat and melt resistant design suited to boiler water testing
- Cooling tower water management — simultaneous pH, conductivity, PTSA, ORP, and fluorescein measurement for cooling systems
- Plant water treatment diagnostics — wireless calibration and diagnosis of the Pyxis Lab ST-525 sensor
FAQ
Which water treatment parameters does the SP-710B measure?
It measures up to six parameters simultaneously: pH, conductivity, PTSA, temperature, ORP, and fluorescein.
Is the SP-710B suitable for boiler and cooling tower systems?
Yes. It was mainly designed for cooling tower and boiler tank applications and is heat and melt resistant accordingly.
How does the meter avoid contamination during pH/ORP measurement?
The pH/ORP module is fully potted, battery-powered, and Bluetooth-enabled, communicating wirelessly with the base unit to eliminate water and KCl contamination to the meter.
How much measurement data can the SP-710B store, and how do I retrieve it?
It stores up to 8G of historical data with calendar time marks and sample location information, which can be transferred via Bluetooth to the uPyxis app.
