Pyxis SP-210 Pocket Bleach Concentration Meter (0-16% mass/mass)

Pocket meter measuring bleach concentration as mass/mass (0-16%) with simultaneous temperature compensation.

Pyxis Lab
LED-Based Optical Sensor
Bleach Concentration Monitoring

Pyxis SP-210 Pocket Bleach Concentration Meter (0-16% mass/mass)

Model:
SP-210
Brand:
Pyxis Lab

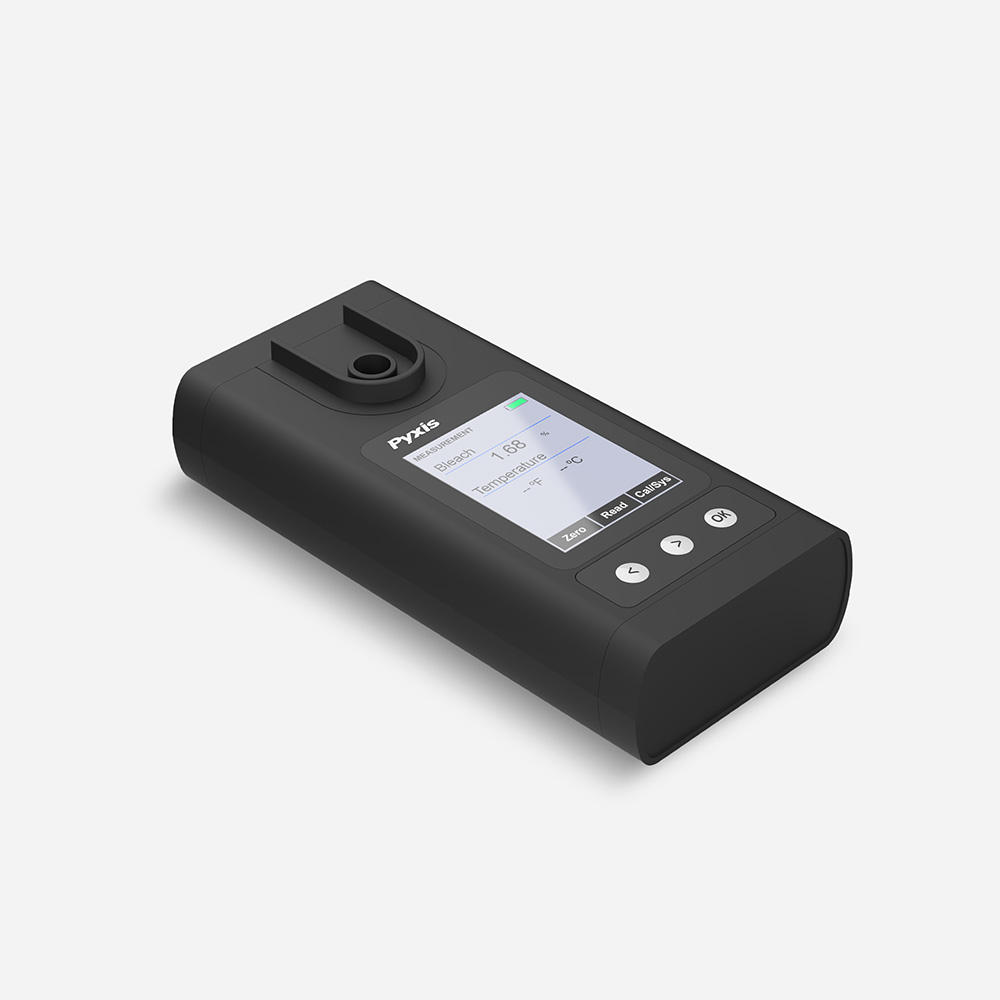

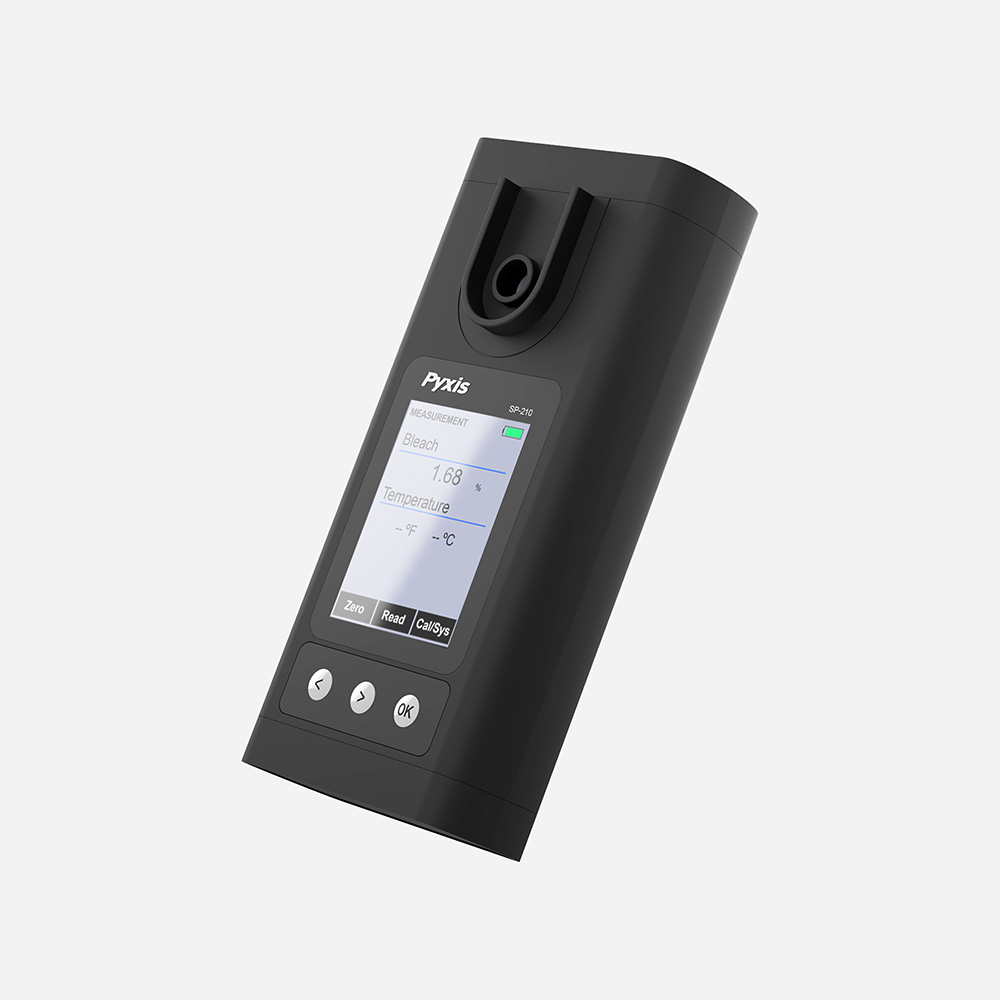

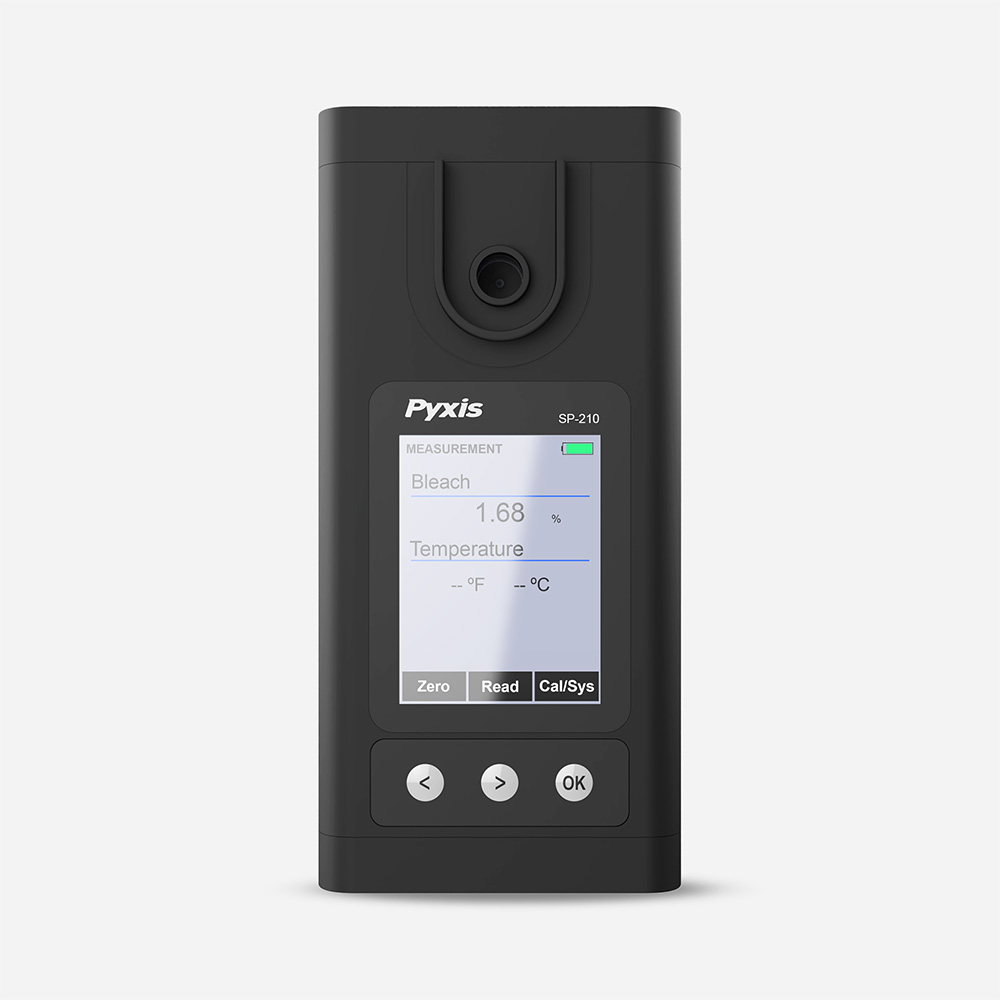

The Pyxis SP-210 is a handheld pocket analyzer that measures bleach concentration as mass/mass, expressed as chlorine (Cl2), for both manufactured concentrate and diluted electrolysis-produced sodium hypochlorite. Its direct-pour sample method and ambient-light compensation algorithm eliminate the need for sample vials or shielding. Automatic RTD temperature compensation delivers accurate readings across a wide range of sample temperatures and bleach forms.

No sample vials needed — direct-pour sample method applies bleach straight to the measurement cell
Accurate in any light — algorithm compensation for ambient light removes the need to shield samples
No sample vials needed — direct-pour sample method applies bleach straight to the measurement cell

Description

The Pyxis SP-210 is a pocket-sized bleach analyzer that measures mass/mass concentration of sodium hypochlorite, expressed as chlorine (Cl2), covering both manufactured concentrate and diluted electrolysis-produced bleach. Its direct-pour sample method applies the bleach sample straight into the measurement cell, and built-in algorithm compensation for ambient light means samples never need to be shielded from light.

Using an LED-based UV light source to measure optical density, the SP-210 offers an expanded auto-resolution measurement range along with RTD temperature output and automatic temperature compensation, so readings stay accurate across a wide range of sample temperatures and bleach strengths.

Built for plant operators and water treatment personnel who need fast, reliable bleach strength checks in the field or on the production line, the SP-210 eliminates sample vials entirely and includes integrated cleanliness diagnostics to flag a dirty measurement cell before it affects results.

Why Use This

Accurate Across Bleach Forms

Automatic RTD temperature compensation and auto-resolution measurement let the SP-210 deliver reliable %Cl2 readings on both concentrated and diluted hypochlorite samples.

Faster, Simpler Testing

The direct-pour sample method and ambient-light compensation remove the need for sample vials or shielding, speeding up routine bleach concentration checks.

Applications

  • Municipal and industrial water treatment — verifying bleach (sodium hypochlorite) strength before dosing
  • On-site electrolysis/electrochlorination systems — checking diluted, electrolysis-produced hypochlorite concentration
  • Chemical receiving and QA checks — confirming manufactured bleach concentrate strength on delivery

FAQ

What concentration range can the SP-210 measure?

The SP-210 measures bleach concentration from 0.01-16% mass/mass, expressed as chlorine (Cl2), with accuracy of ±2% of the reading value or ±0.1% of the unit range.

Do I need sample vials or cuvettes?

No. The SP-210 uses a direct-pour sample method — bleach is applied directly to the measurement cell, so no separate sample vials are needed.

Does ambient light affect the reading?

No. The SP-210 includes algorithm compensation for ambient light, so samples do not need to be shielded during measurement.

Can it measure both concentrated and diluted bleach?

Yes. The sample cell is compatible with concentrated liquid bleach solutions as well as diluted electrolysis-produced sodium hypochlorite, and RTD temperature compensation keeps readings accurate across sample temperatures and forms.
