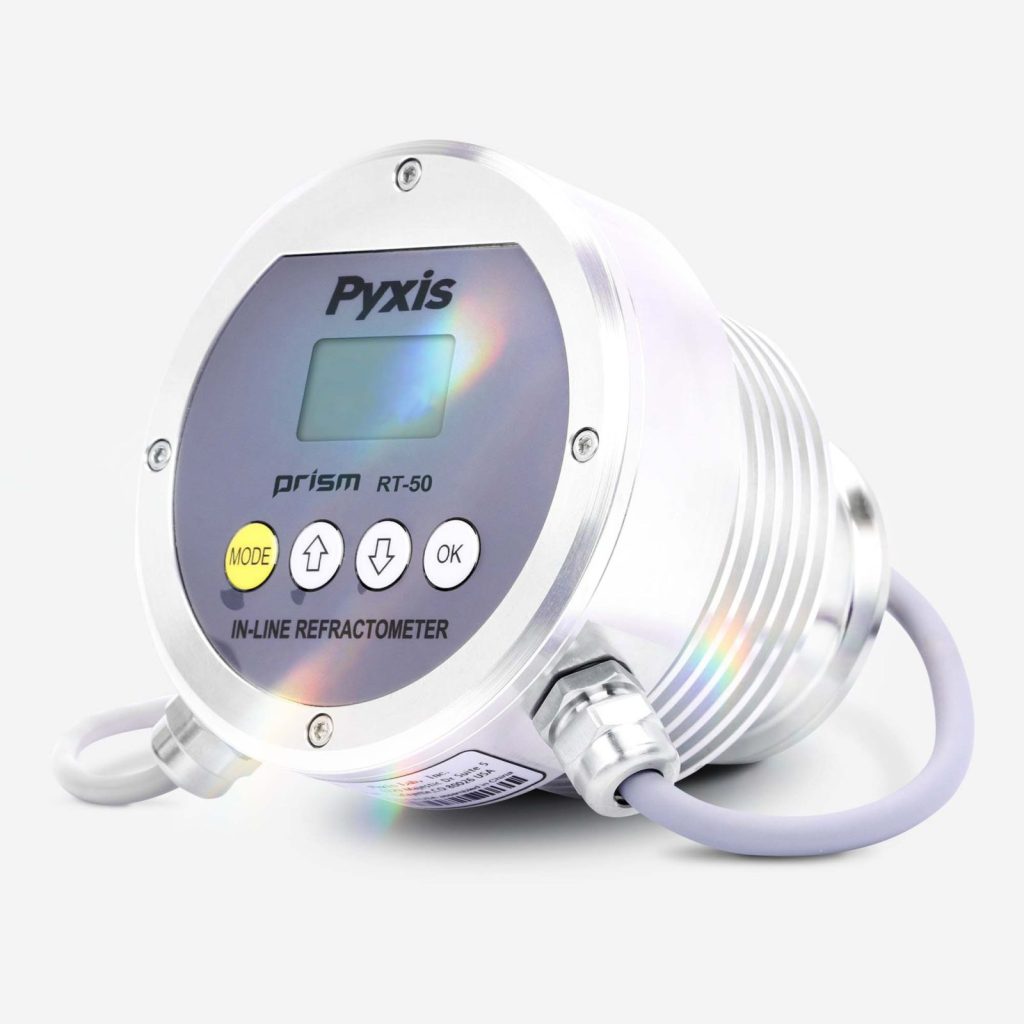

Pyxis PRISM RT-50 Inline Refractometer
Inline refractive index / BRIX / user-defined refractometer, 316L stainless steel, local display. 4-20mA + RS-485, 8-pin.
Pyxis PRISM RT-50 Inline Refractometer
The Pyxis PRISM RT-50 is an inline digital refractometer that measures refractive index, BRIX, and user-defined concentration curves for continuous process monitoring. Built with a 316L stainless steel body and a local display for on-site readings, it outputs data via 4-20mA analog and RS-485 through an 8-pin connector.
Description
The Pyxis PRISM RT-50 is an inline digital refractometer built for continuous process monitoring of refractive index and derived concentration values. Housed in a 316L stainless steel body, it is constructed to withstand demanding process environments while providing a local display for on-site readings.
The RT-50 measures refractive index and BRIX directly, and also supports user-defined calibration curves, allowing it to be configured for concentration measurements specific to a given process fluid. Data is available via 4-20mA analog and RS-485 outputs through an 8-pin connector, enabling integration with plant control and monitoring systems.
It is suited to operators who need continuous, on-site visibility into process concentration alongside remote data logging or control system integration.
Why Use This
Versatile Concentration Monitoring
Measures refractive index and BRIX, and supports user-defined calibration curves for custom process fluids.
Built for Industrial Environments
316L stainless steel construction resists corrosion in demanding process conditions.
On-Site Readability
A local display lets operators check readings directly at the installation point.
Applications
- Process concentration monitoring — continuous inline tracking of refractive index and BRIX
- Custom concentration measurement — user-defined calibration curves for process-specific fluids
- Demanding process environments — 316L stainless steel construction suited to harsh conditions
FAQ
What parameters does the RT-50 measure?
It measures refractive index and BRIX, and supports user-defined calibration curves for other concentration values.
What is the sensor body made of?
The RT-50 has a 316L stainless steel body, suited to demanding process environments.
Can readings be checked on-site without a separate display?
Yes, the RT-50 includes a local display for on-site readings.
How does the RT-50 output data to a control system?
It outputs via 4-20mA analog and RS-485 through an 8-pin connector.
