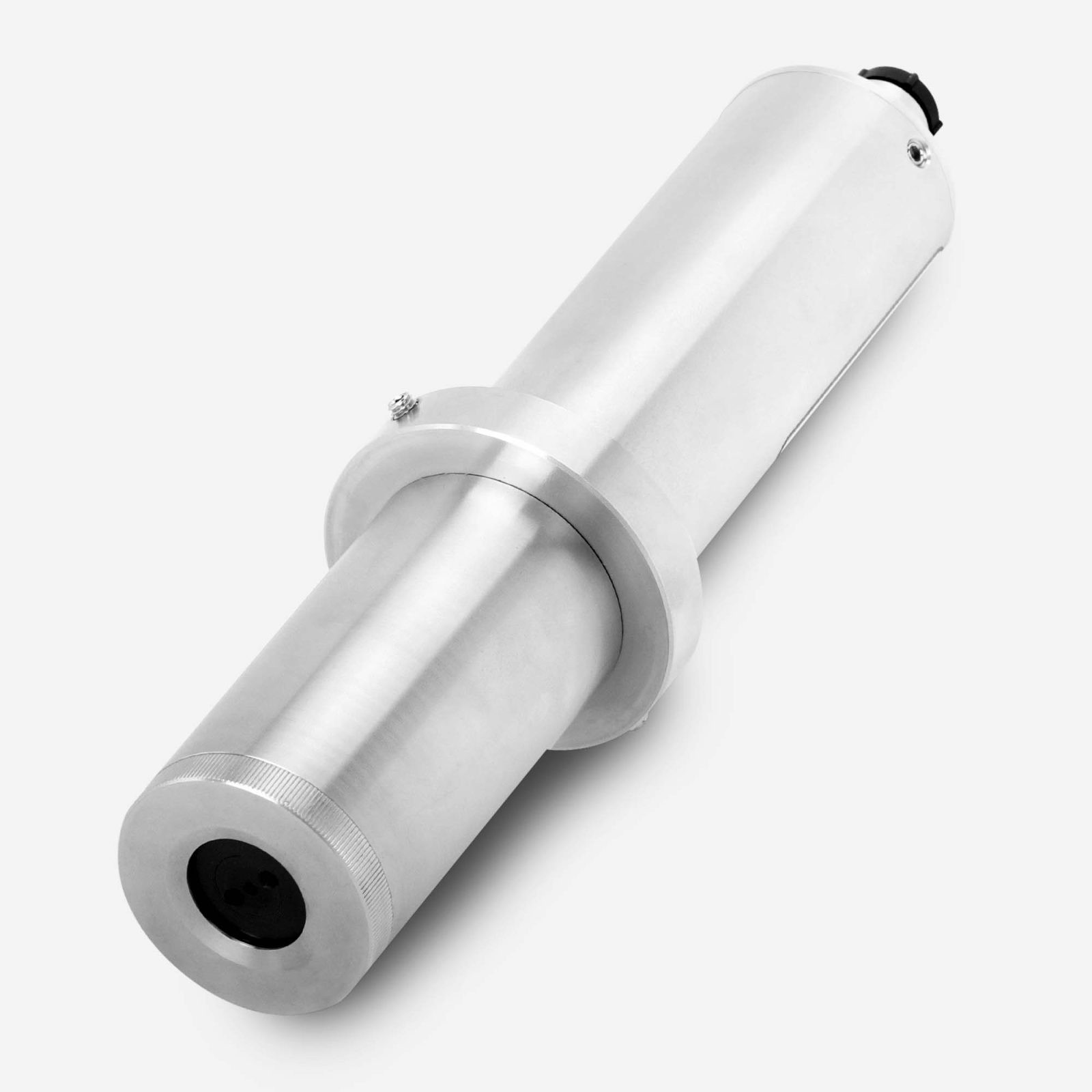

Pyxis LT-736B Ultralow Turbidity Sensor (Infrared Light)
Ultra-low turbidity sensor, infrared light 860nm, 0.000-1000.00NTU, 0.002NTU resolution, 2% accuracy, ISO 7027. Dual 4-20mA + RS-485, 8-pin.
Pyxis LT-736B Ultralow Turbidity Sensor (Infrared Light)
The Pyxis LT-736B is an ultralow-range turbidity sensor that uses infrared light (860nm) illumination to deliver resolution and accuracy beyond a standard process turbidimeter. It measures 0.000-1000.00NTU with 0.002NTU resolution and 2% accuracy to ISO 7027, with dual 4-20mA analog outputs plus RS-485 through an 8-pin connector.
Description
The Pyxis LT-736B is an ultralow-range turbidity sensor that uses infrared light (860nm) illumination to deliver resolution and accuracy beyond a standard process turbidimeter. It measures across a 0.000-1000.00NTU range with 0.002NTU resolution and 2% accuracy, tested to the ISO 7027 method — the infrared-light counterpart to the warm-white-light LT-736.
It provides dual 4-20mA analog outputs plus RS-485 via an 8-pin connector, supporting integration with existing control and monitoring systems.
The infrared light source suits applications and regions where ISO 7027-referenced turbidity measurement is preferred over the EPA 180.1 method used by the warm-white-light variants.
Why Use This
Beyond-Standard Resolution
Delivers 0.002NTU resolution and 2% accuracy to ISO 7027, exceeding standard process turbidimeter capability.
Flexible Signal Output
Dual 4-20mA analog outputs plus RS-485 via an 8-pin connector support integration into existing systems.
Applications
- ISO 7027-referenced turbidity monitoring — for regions or standards preferring infrared measurement
- Precision process control — high-resolution readings beyond standard process turbidimeters
- Treated water clarity monitoring — broad 0-1000NTU range for varying process conditions
FAQ
How does the LT-736B differ from the LT-736?
The LT-736B uses infrared light (860nm) illumination and is measured to ISO 7027, while the LT-736 uses warm white light (3200K) and is measured to EPA 180.1. Range, resolution, and accuracy are otherwise the same.
What is the measurement range and accuracy?
0.000-1000.00NTU with 0.002NTU resolution and 2% accuracy.
What outputs does it provide?
Dual 4-20mA analog outputs plus RS-485, via an 8-pin connector.
Which standard is this sensor measured to?
ISO 7027.
