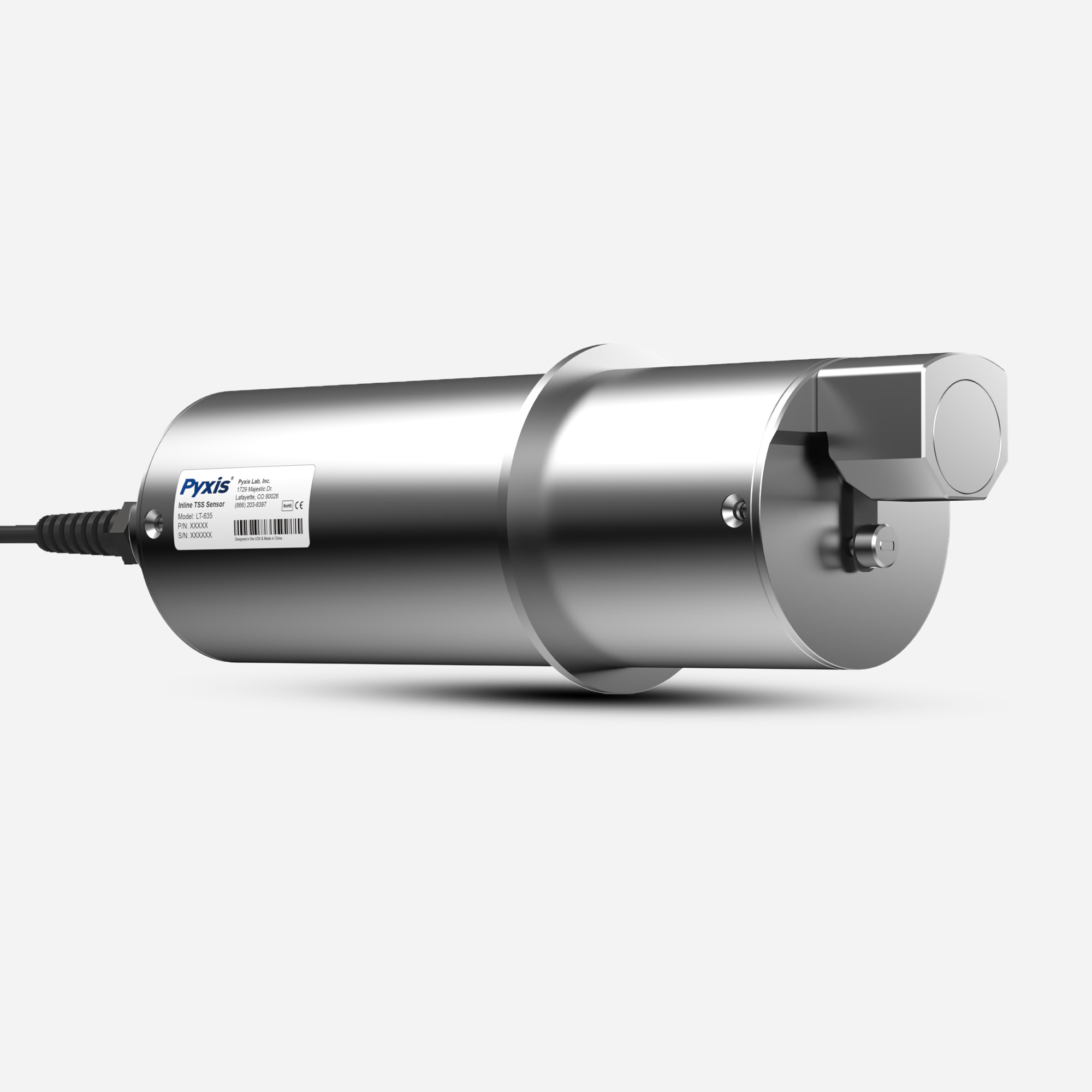

Pyxis LT-635 Submersible Self-Cleaning Suspended Solids Sensor
Submersible self-cleaning suspended solids sensor with wiper arm, 10m cable (0-30,000mg/L). 4-20mA + RS-485, 8-pin.
Pyxis LT-635 Submersible Self-Cleaning Suspended Solids Sensor
The Pyxis LT-635 is a submersible, self-cleaning suspended solids sensor designed for continuous unattended deployment. It uses a replaceable wiper arm and a 10-metre waterproof cable, measuring suspended solids across a 0-30,000mg/L range with 4-20mA analog and RS-485 outputs through an 8-pin connector.
Description
The Pyxis LT-635 is a submersible, self-cleaning suspended solids sensor designed for continuous, unattended deployment. It uses a replaceable wiper arm to keep the optical surface clear over long installations and a 10-metre waterproof cable to support submerged mounting away from the readout point.
The sensor measures suspended solids across a wide 0-30,000mg/L range and reports through 4-20mA analog and RS-485 outputs via an 8-pin connector, integrating directly into existing monitoring and control systems.
Its wide measurement range and self-cleaning design make it suited to applications where suspended solids concentrations vary substantially and manual sensor maintenance needs to be minimized.
Why Use This
Wide Measurement Range
Covers suspended solids readings up to 30,000mg/L, suited to heavily loaded process and wastewater streams.
Unattended Long-Term Deployment
The self-cleaning wiper arm and 10-metre waterproof cable reduce maintenance visits during continuous monitoring.
Applications
- Suspended solids monitoring — tracks concentrations across a wide 0-30,000mg/L range
- Wastewater treatment — continuous unattended solids tracking in process streams
- Process tank monitoring — long-term deployment with minimal manual maintenance
FAQ
What does the LT-635 measure?
Suspended solids concentration, across a 0-30,000mg/L range.
How does it handle fouling during long deployments?
A replaceable wiper arm automatically cleans the sensor for continuous unattended operation.
How is it installed?
As a submersible sensor with a 10-metre waterproof cable, allowing deployment away from the readout location.
What are the output options?
4-20mA analog and RS-485 via an 8-pin connector.
