Fluimac Phoenix Food PF120 AODD Pump
Fluimac Phoenix Food PF120 is a 316 stainless steel AODD pump with Tri-Clamp fittings for hygienic food and beverage transfer.
Fluimac Phoenix Food PF120 AODD Pump
The Fluimac Phoenix Food PF120 is an air-operated double diaphragm (AODD) pump built in electro-polished 316 stainless steel with Tri-Clamp connections, designed for food, beverage, and hygienic process transfer. It is FDA-compliant and shares the seal-less, dry-run-safe, self-priming design of the standard Phoenix range. Rated for a maximum flow of 120 lt/min, it suits higher-throughput hygienic transfer duties.
Description
The Fluimac Phoenix Food PF120 is an air-operated double diaphragm (AODD) pump built in electro-polished 316 stainless steel with Tri-Clamp connections, designed for food, beverage, and hygienic process transfer applications. It is FDA-compliant and shares the seal-less, dry-run-safe, self-priming design used across the standard Phoenix range.
Fluid connections are 1″ Tri-Clamp DN 25 ISO 2852 with a 3/8″ BSP air connection, and the pump is rated for a maximum flow of 120 lt/min at up to 8 bar of air pressure. It delivers a maximum head of 80 m, self-primes to 5 m of dry suction lift, and achieves a wet suction lift of 9.8 m. Maximum solid passing is 4 mm, noise level is 72 dB, and viscosity handling extends to 25,000 cps; displacement per stroke is approximately 200 cc.
The PF120 carries an ATEX rating of II 3/3 G Ex h IIC T4 Gc / II 3 D Ex h IIIB T135°C Dc X, suiting higher-throughput hygienic transfer duties within the Phoenix Food range.
Why Use This
Hygienic, FDA-compliant build
Electro-polished 316 stainless steel and Tri-Clamp fittings suit food and beverage process transfer.
Reliable dry-run protection
The seal-less design self-primes and tolerates dry running without damage, reducing downtime risk.
Applications
- Food and beverage transfer — FDA-compliant 316 stainless steel with Tri-Clamp connections
- Hygienic process transfer — electro-polished finish for sanitary installations
- Higher-throughput transfer duties — max flow of 120 lt/min
- Hazardous area installations — ATEX rated for classified zones
FAQ
What is the PF120 designed for?
It is designed for food, beverage, and hygienic process transfer, built in electro-polished 316 stainless steel with Tri-Clamp connections and FDA-compliant.
What is the maximum flow rate?
The PF120 is rated for a maximum flow of 120 lt/min, suiting higher-throughput duties than the PF60 and PF35.
What viscosity can the PF120 handle?
It can handle fluids up to 25,000 cps.
Is it rated for hazardous areas?
Yes, it carries an ATEX rating of II 3/3 G Ex h IIC T4 Gc / II 3 D Ex h IIIB T135°C Dc X.
Resources
Related Products

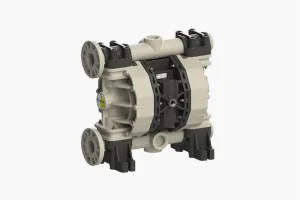

Fluimac Phoenix P700 air-operated double diaphragm pump delivering up to 700 L/min for industrial fluid transfer.

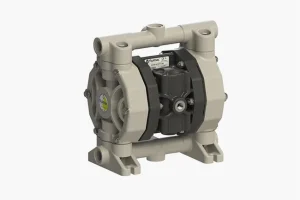

Air-operated double diaphragm pump rated for 20 lt/min max flow, built for chemical transfer with dry-run and deadhead protection.
