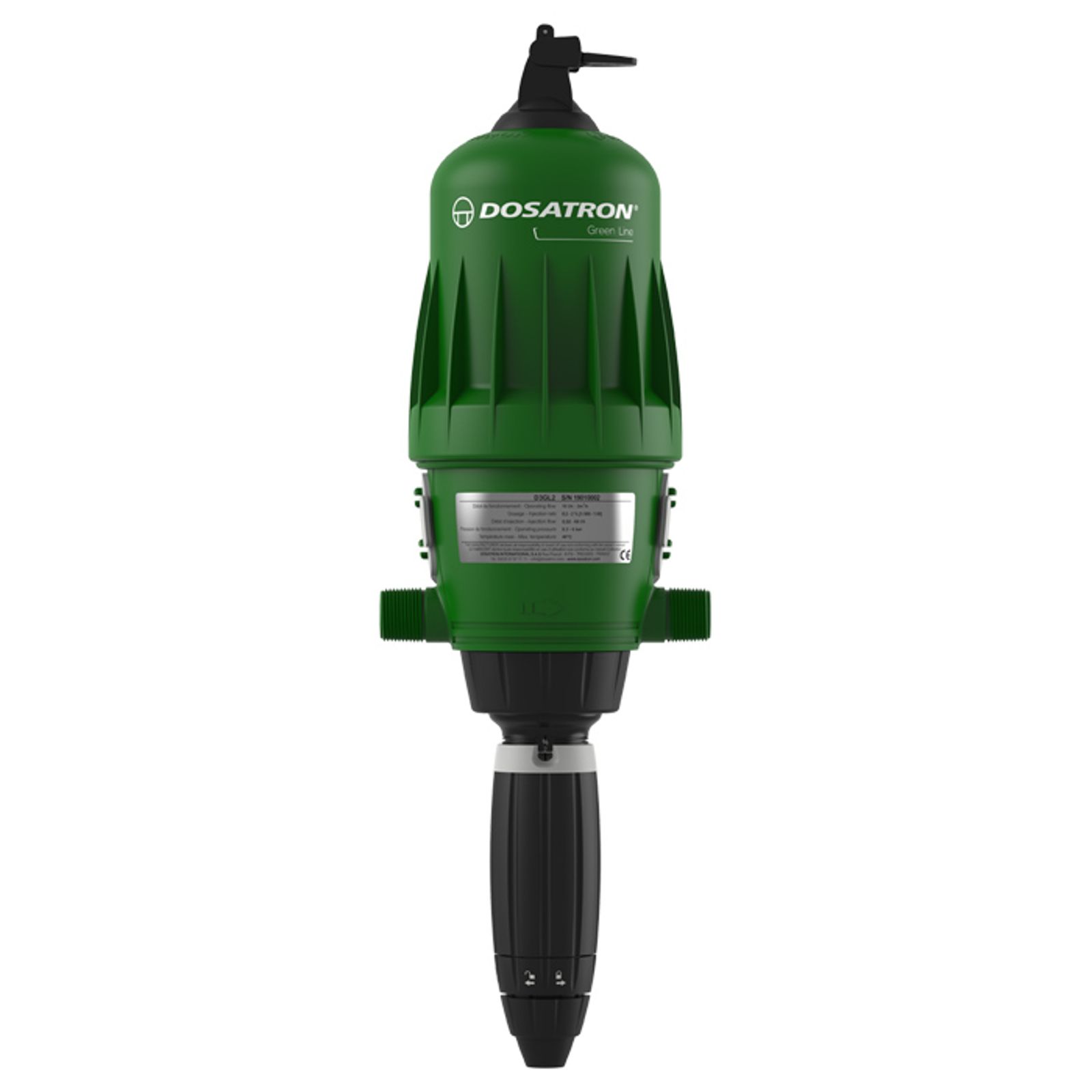

Dosatron D3GL Fertilizer Injector
Water-powered fertigation dosing pump for small-flow irrigation, available in four dosage ranges from 0.03% to 10%.
Dosatron D3GL Fertilizer Injector
The D3GL is Dosatron's entry point fertigation dosing pump for irrigation networks from 10 l/h to 3 m3/h. It is available across four dosage ranges to match different fertigation, crop protection, pH adjustment and disinfection needs. Non-electric and self-priming, it saves water, product and labour with accurate, continuous dosing independent of variations in flow rate or pressure.
Description
The Dosatron D3GL is Dosatron’s entry point fertigation dosing pump for irrigation networks from 10 l/h to 3 m3/h. Non-electric and self-priming, it saves water, product and labour with accurate, continuous dosing independent of variations in flow rate or pressure.
It is available across four dosage variants to match different treatment needs: D3GL3000 (0.03-0.3% dosing), D3GL2 (0.2-2% dosing), D3GL5 (0.5-5% dosing) and D3GL10 (1-10% dosing). All variants share the same water flow range (10 l/h to 3 m3/h) and NPT-BSP 20×27 – 3/4″ connection size.
It suits fertigation, crop protection treatments, pH adjustment, fumigation, disinfection and post-harvest treatments.
Why Use This
Choice of dosage range
Four variants (D3GL3000, D3GL2, D3GL5, D3GL10) let growers match the pump to fertigation, crop protection, pH adjustment or disinfection needs.
Consistent dosing regardless of conditions
Non-electric and self-priming, it doses accurately and continuously independent of variations in flow rate or pressure, saving water, product and labour.
Applications
- Fertigation on small to medium irrigation networks (10 l/h to 3 m3/h)
- Crop protection treatments and pH adjustment
- Fumigation and disinfection programmes
- Post-harvest treatments
FAQ
What dosage variants are available for the D3GL?
Four variants are available: D3GL3000 (0.03-0.3% dosing), D3GL2 (0.2-2% dosing), D3GL5 (0.5-5% dosing) and D3GL10 (1-10% dosing).
Does the D3GL need electricity to run?
No. It is non-electric and self-priming, saving water, product and labour with continuous accurate dosing.
Does dosing accuracy change if flow rate or pressure varies?
No. Dosing remains accurate and continuous independent of variations in flow rate or pressure.
What treatments is the D3GL used for?
It suits fertigation, crop protection treatments, pH adjustment, fumigation, disinfection and post-harvest treatments.
