Pyxis ST-750 Inline Hazen Color Sensor

Inline Hazen colour sensor, 0.1-30 degrees platinum-cobalt in water. 4-20mA + RS-485, 7-pin.

Pyxis Lab
Hazen Color Sensor
Water Quality Monitoring

Pyxis ST-750 Inline Hazen Color Sensor

Model:
ST-750
Brand:
Pyxis Lab

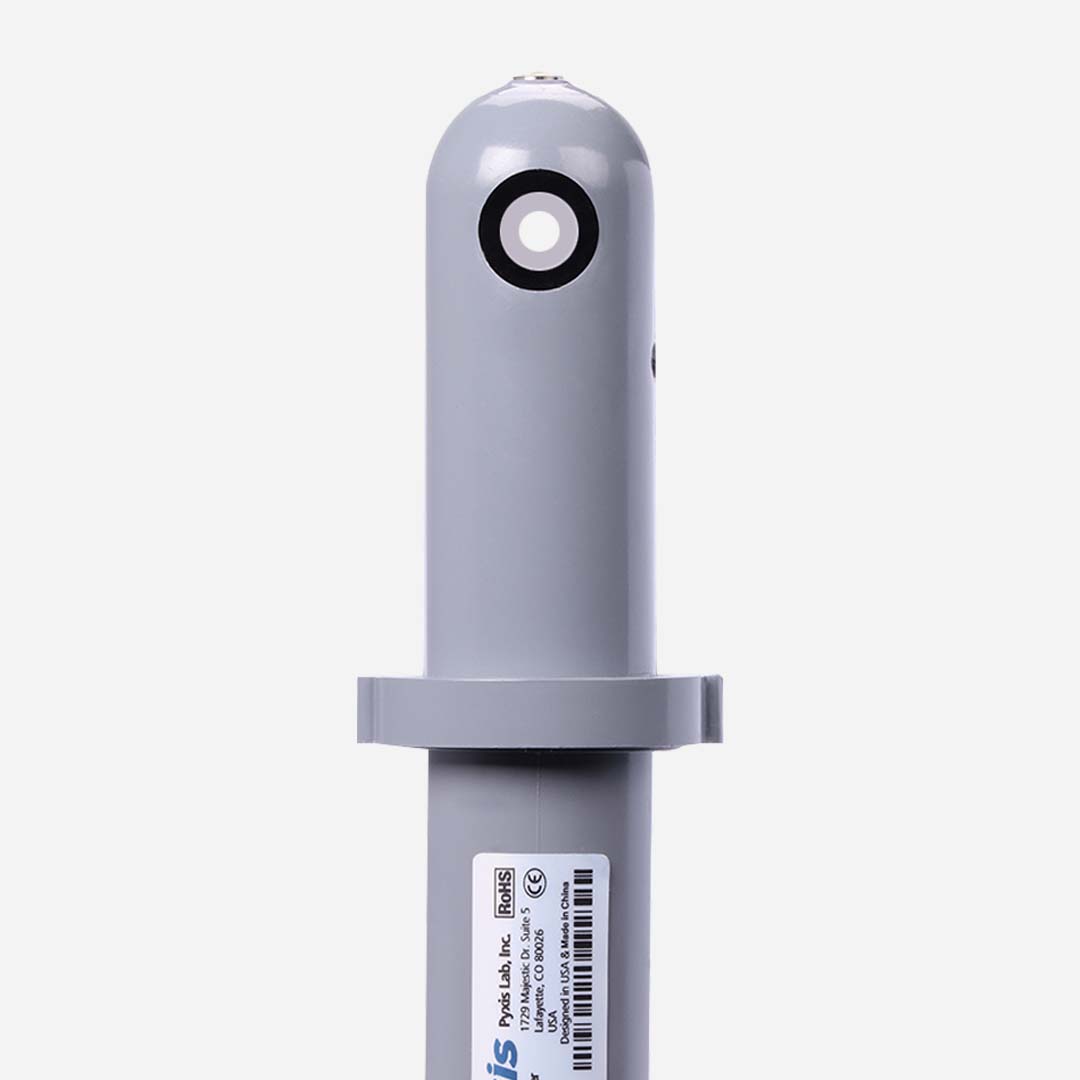

The Pyxis ST-750 is an inline Hazen colour sensor that measures platinum-cobalt (Pt-Co) colour units to monitor process water clarity. It covers a 0.1-30 degree Pt-Co range and outputs readings via both 4-20mA analog and RS-485 Modbus through a 7-pin connector for straightforward system integration.

Hazen colour measurement — reports platinum-cobalt colour units across a 0.1-30 degree range
Dual output — 4-20mA analog and RS-485 Modbus via a 7-pin connector
Hazen colour measurement — reports platinum-cobalt colour units across a 0.1-30 degree range

Description

The Pyxis ST-750 is an inline Hazen colour sensor that measures water colour in platinum-cobalt (Pt-Co) units, a standard measure for tracking subtle colour changes in process water. It covers a 0.1-30 degree Pt-Co range, giving operators a way to detect colour shifts that can indicate changes in raw water quality or treatment performance.

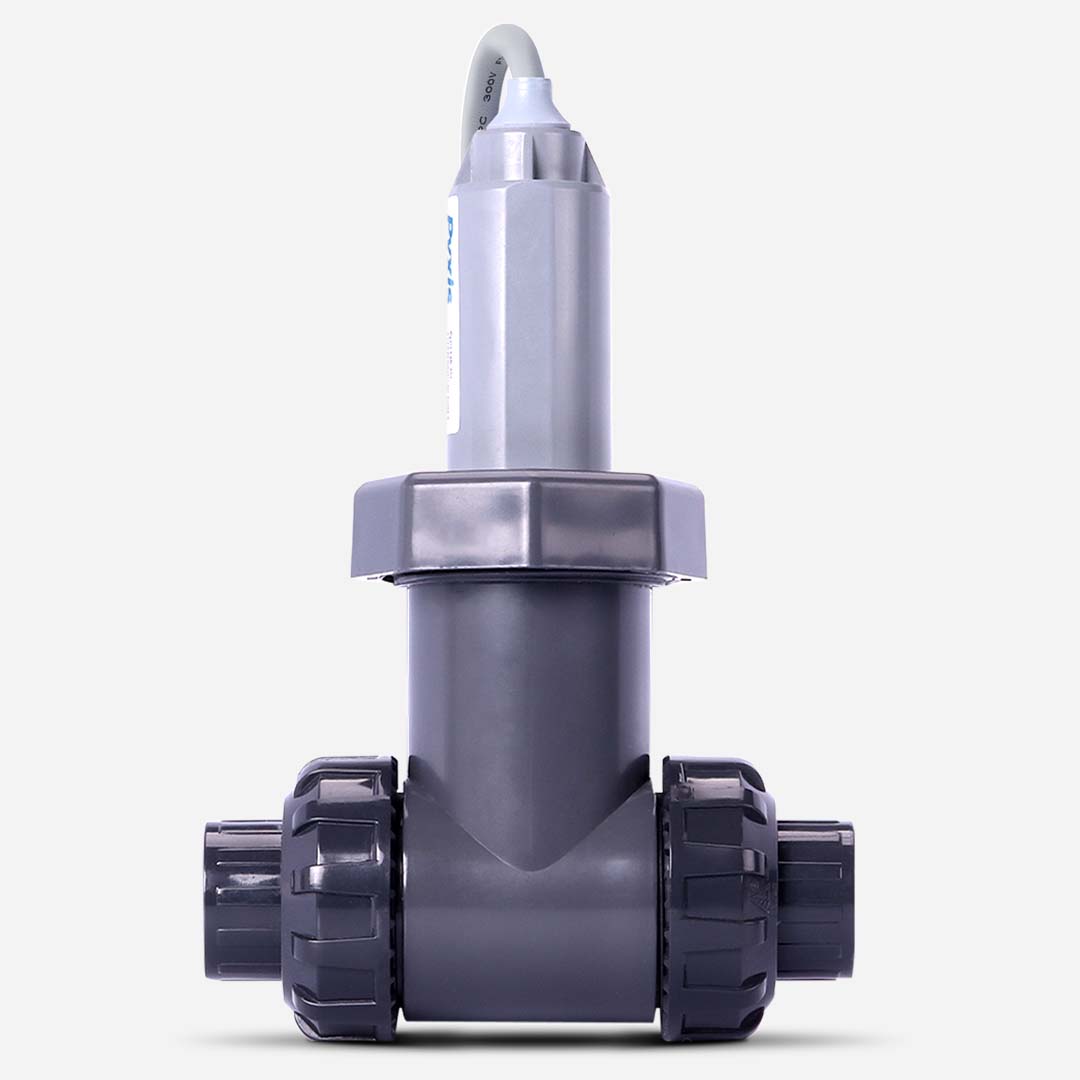

The sensor mounts inline for continuous monitoring and reports through both 4-20mA analog and RS-485 Modbus outputs via a 7-pin connector, allowing straightforward integration into existing instrumentation and control systems.

It’s intended for facilities that need ongoing visibility into process water colour as a clarity and quality indicator alongside turbidity measurement.

Why Use This

Precise Colour Monitoring

Measures platinum-cobalt colour units across a 0.1-30 degree range for process water clarity tracking.

Flexible Integration

Dual 4-20mA and RS-485 Modbus outputs support both analog loops and digital control systems.

Applications

  • Process water quality monitoring — tracks colour changes that signal shifts in raw water or treatment performance
  • Treatment process control — continuous inline colour data to support process adjustments
  • Control system integration — 4-20mA/Modbus outputs feed directly into SCADA or PLC monitoring

FAQ

What does the ST-750 actually measure?

It measures water colour in platinum-cobalt (Pt-Co) units, a recognized method for quantifying subtle colour in process water, across a 0.1-30 degree Pt-Co range.

How is the ST-750 installed?

It’s an inline sensor, mounted directly into the process water line for continuous monitoring.

What outputs does it provide for control system integration?

4-20mA analog and RS-485 Modbus, both via a single 7-pin connector.

Is this used alongside turbidity monitoring?

Yes — colour measurement complements turbidity sensing as an additional indicator of process water clarity and quality.
