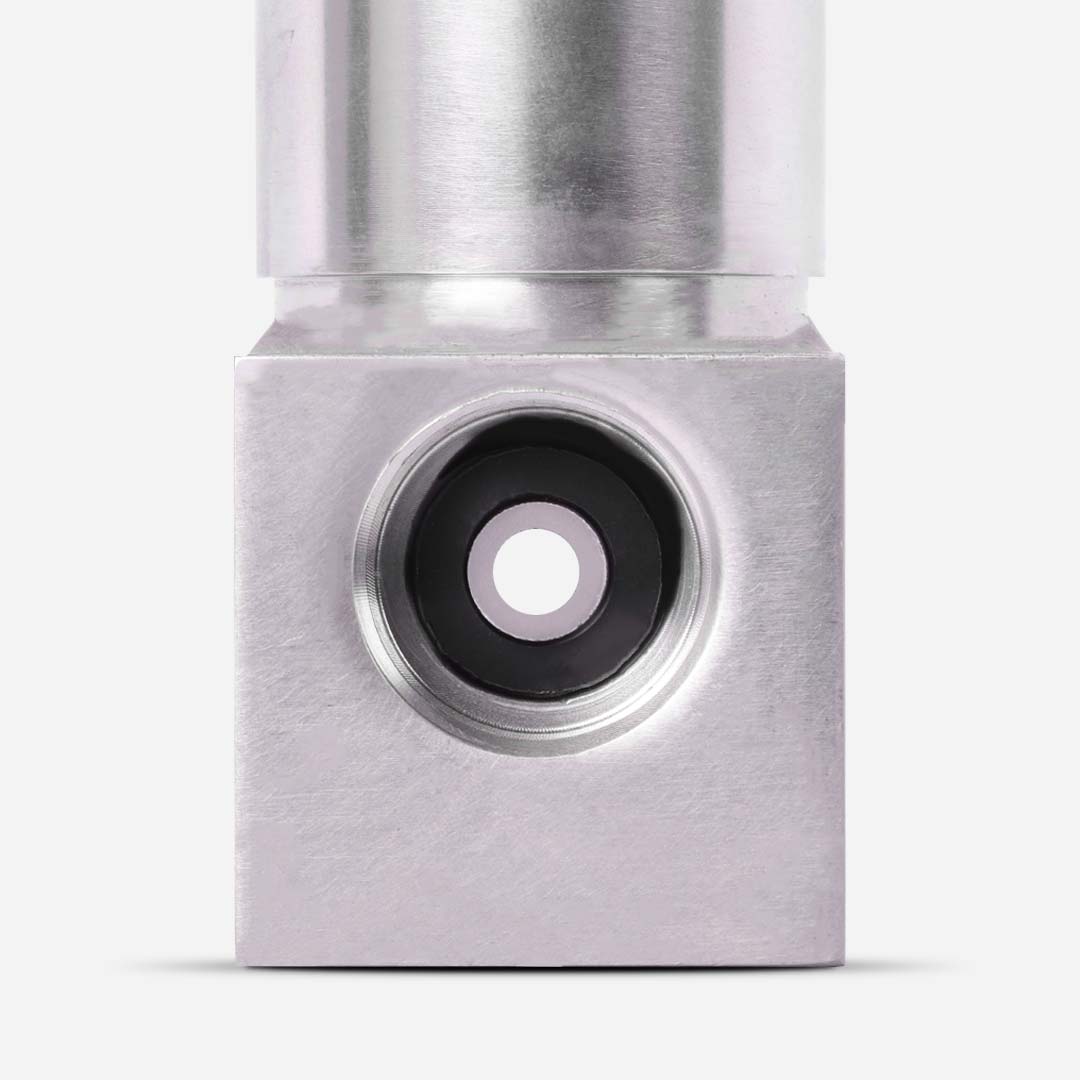

Pyxis HW-201-T Inline Drop-In Sugar Thin Juice Fluorometer (requires ST-007 Tee)
Drop-in design stainless steel sugar thin juice fluorometer (0-500ppm). Requires ST-007 stainless tee (sold separately). 4-20mA + RS-485, 7-pin.
Pyxis HW-201-T Inline Drop-In Sugar Thin Juice Fluorometer (requires ST-007 Tee)
The Pyxis HW-201-T is a drop-in inline fluorometer for sugar thin juice process monitoring, covering a 0-500ppm range. It must be installed with the separately sold ST-007 stainless tee, and it outputs via both 4-20mA analog and RS-485 Modbus through a single 7-pin connector for continuous inline monitoring.
Description
The Pyxis HW-201-T is a drop-in inline fluorometer for sugar thin juice process monitoring, covering the same 0-500ppm range as the standard HW-201. Rather than integrating its own process connection, it is designed to mount directly into the separately sold ST-007 stainless tee, simplifying installation into existing piping.
Once installed, the HW-201-T outputs via both 4-20mA analog and RS-485 Modbus communication through a single 7-pin connector, allowing it to connect to analog control panels or networked PLC/SCADA systems used in refinery process control.
This drop-in approach is intended for facilities that want continuous inline thin juice monitoring with a simplified mounting arrangement, provided the ST-007 tee is ordered alongside the sensor.
Why Use This
Simplified Drop-In Installation
The drop-in design mounts directly into the ST-007 stainless tee (sold separately), streamlining installation into existing thin juice piping.
Continuous Thin Juice Process Monitoring
Covering 0-500ppm, the HW-201-T gives sugar refining operations a continuous inline read on thin juice concentration for process control.
Applications
- Sugar thin juice concentration monitoring via simplified drop-in installation
- Continuous inline process monitoring in sugar refining operations
FAQ
What does the HW-201-T measure?
It measures sugar thin juice concentration over a 0-500ppm range, the same as the standard HW-201.
Does this sensor need any additional hardware to install?
Yes — the HW-201-T is a drop-in design that must be installed with the ST-007 stainless tee, which is sold separately.
What outputs does it provide?
4-20mA analog and RS-485 Modbus outputs, through a single 7-pin connector.
What is the benefit of the drop-in design over the standard HW-201?
Mounting into the ST-007 tee simplifies inline installation compared to a fixed process connection, while providing the same continuous thin juice monitoring.
