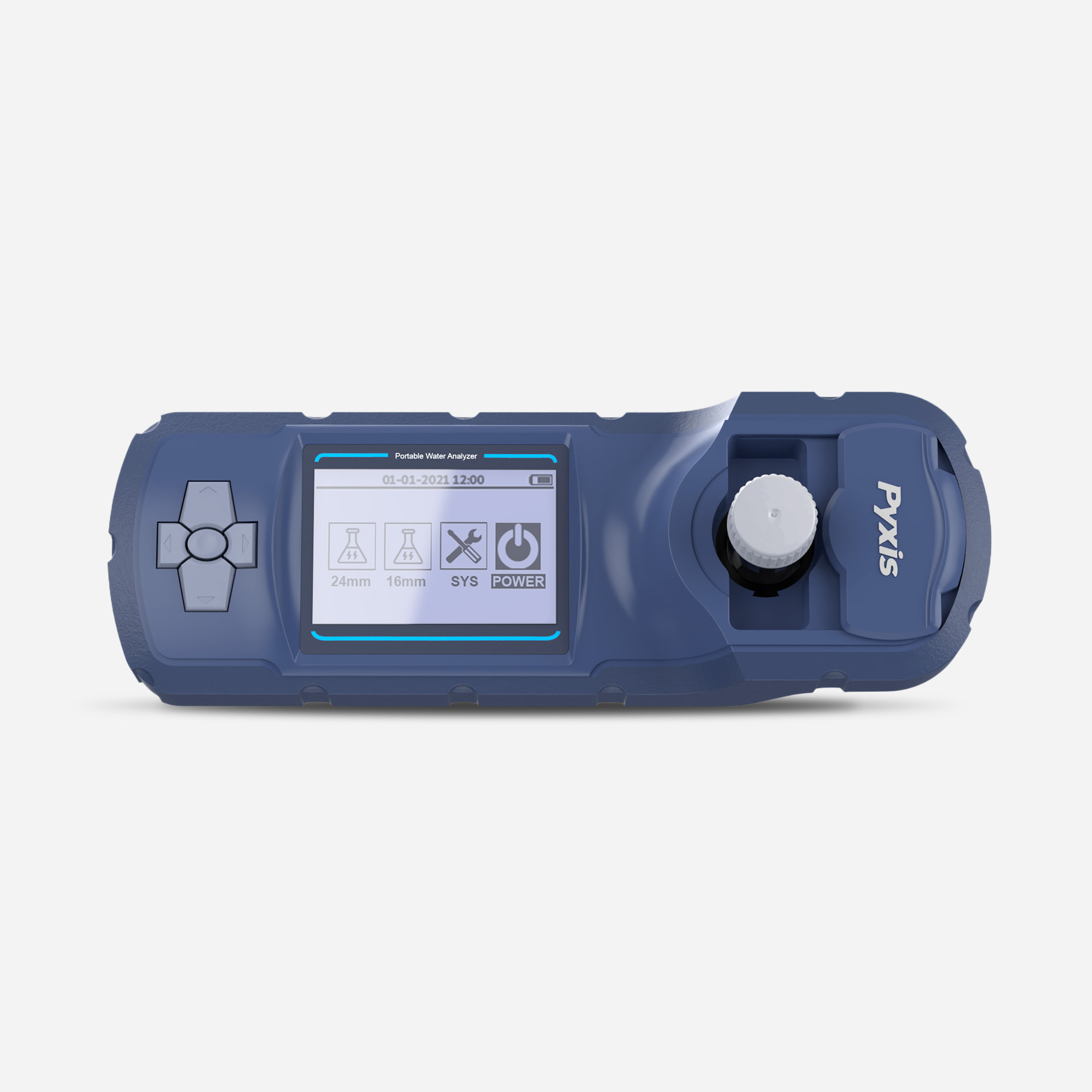

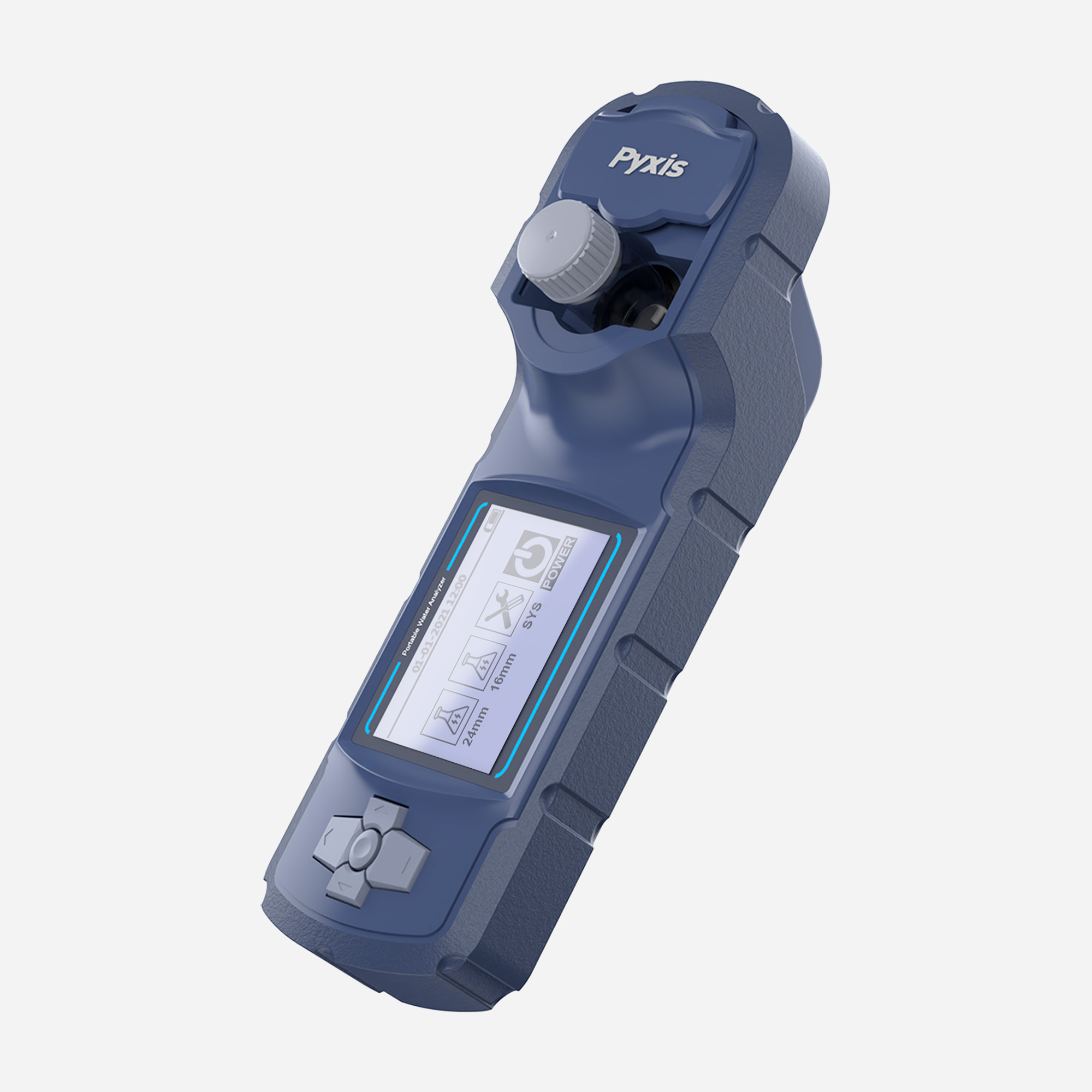

Pyxis HM-900 Oil-In-Water Handheld Analyzer

Handheld portable fluorometer measuring multiple oils in water (Marine-Offshore Oil, #1 Diesel/Kerosene, Heavy Fuel Oil) via UV fluorescence.

Pyxis Lab
UV Fluorescence Sensor
Handheld Meters Line

Pyxis HM-900 Oil-In-Water Handheld Analyzer

Model:
HM-900
Brand:
Pyxis Lab

The Pyxis HM-900 is a handheld portable fluorometer that measures multiple oils in water, including Marine-Offshore Oil, #1 Diesel/Kerosene, and Heavy Fuel Oil, using LED-sourced UV fluorescence at 365nm/410nm with automatic dual-channel range selection. It offers Hexane and non-toxic solvent extraction methods, three built-in calibration curves plus up to seven user-defined curves, and a direct-read mode for dissolved or lightly emulsified oil without extraction. It's suited to leak detection, intake water monitoring, and wastewater and marine discharge monitoring.

Multiple oil types, one meter — measures Marine-Offshore Oil, #1 Diesel/Kerosene, and Heavy Fuel Oil with automatic dual-channel range selection
Field-ready durability — IP65-rated enclosure and a sunlight-visible display suit outdoor and field testing
Multiple oil types, one meter — measures Marine-Offshore Oil, #1 Diesel/Kerosene, and Heavy Fuel Oil with automatic dual-channel range selection

Description

The Pyxis HM-900 is a handheld portable fluorometer for measuring multiple oil types in water, including Marine-Offshore Oil, #1 Diesel/Kerosene, and Heavy Fuel Oil. It uses LED-sourced UV fluorescence at 365nm/410nm with automatic dual-channel range selection, giving field personnel a fast way to quantify oil-in-water concentrations without lab analysis.

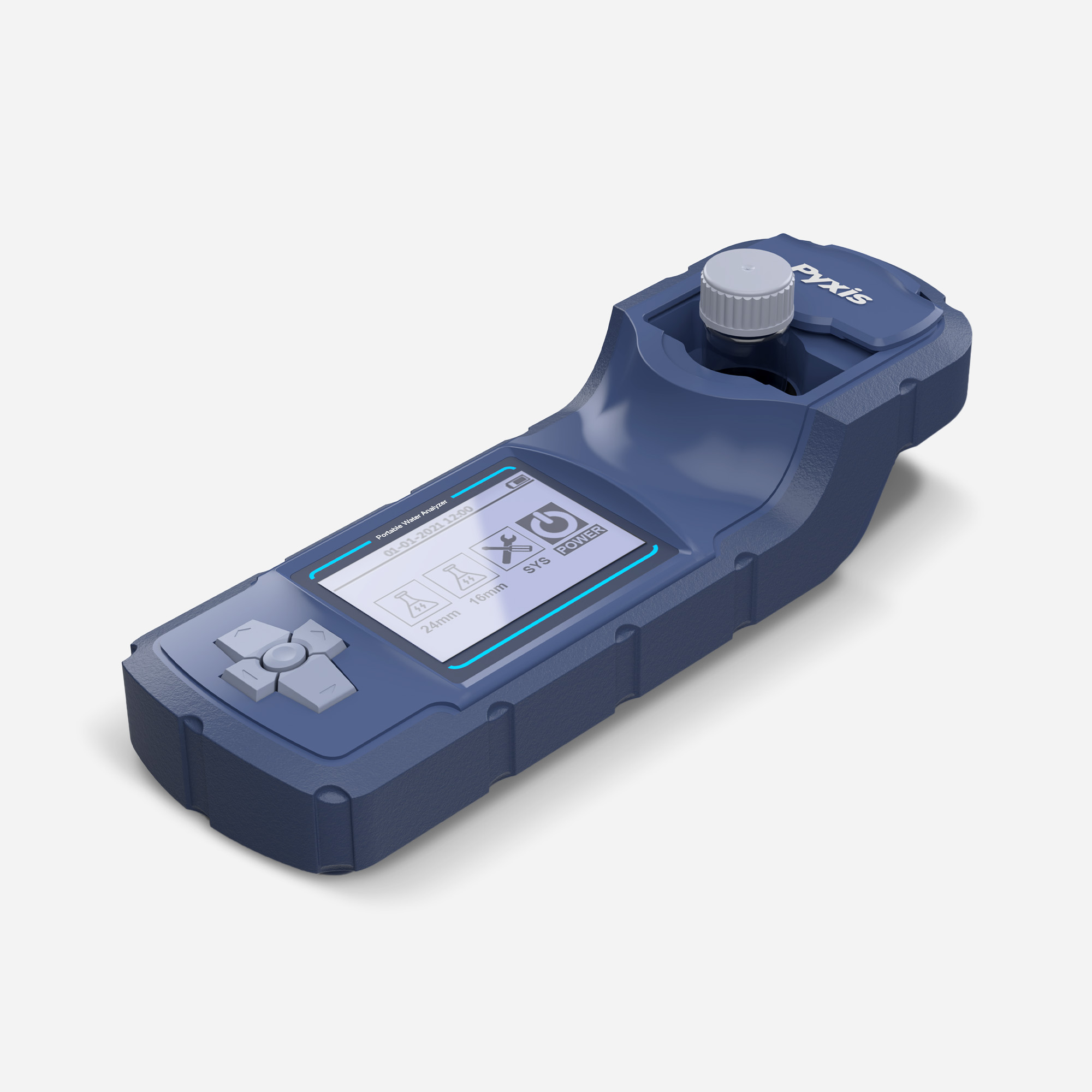

The HM-900 supports both Hexane Extraction and a Pyxis Lab prepared non-toxic, non-flammable solvent, and works with 24mm and 16mm sample vials. It comes with three built-in calibration curves for the primary oil classes plus up to 7 user-defined curves, and offers a direct-read mode for dissolved or lightly emulsified oil without extraction. Detection goes down to 0.1ppm across a 0.1-1,000ppm range, with an IP65-rated enclosure and sunlight-visible display for field use on 2 months of battery life.

It is suited to environmental, marine, and industrial personnel who need to detect oil leaks or monitor oil-in-water concentrations on site.

Why Use This

Multi-Oil Detection in One Device

Measures Marine-Offshore Oil, #1 Diesel/Kerosene, and Heavy Fuel Oil with automatic dual-channel range selection, covering common industrial oil types.

Flexible Calibration and Sampling

Three built-in and up to seven user-defined calibration curves, plus a direct-read mode, adapt the meter to a wide range of applications.

Built for Field Use

An IP65-rated enclosure and sunlight-visible display make the HM-900 practical for onsite and outdoor testing.

Applications

  • Heat exchanger leakage detection — identifying oil ingress in heat exchange systems
  • Oil tank leakage detection — on-site detection of tank oil leaks
  • Intake water monitoring — UF and RO feedwater oil monitoring
  • Industrial wastewater and marine discharge monitoring — verifying oil-in-water concentrations before discharge
  • Plant run-off / storm water monitoring — tracking oil contamination in site run-off

FAQ

What types of oil can the HM-900 detect?

It measures Marine-Offshore Oil, #1 Diesel/Kerosene, and Heavy Fuel Oil using LED-sourced UV fluorescence with automatic dual-channel range selection.

Does the sample require extraction before testing?

The HM-900 supports Hexane Extraction and a Pyxis Lab prepared non-toxic, non-flammable solvent extraction, and also offers a direct-read mode for dissolved or lightly emulsified oil without extraction.

What is the detection limit and measurement range?

Detection limit is 0.1ppm (Marine-Offshore Oil), with a measurement range of 0.1-1,000ppm and automatic channel switching.

Is the HM-900 suitable for outdoor or field use?

Yes. It has an IP65-rated enclosure, a 192×128 LCD visible under direct sunlight, and runs on 4 alkaline batteries for approximately 2 months of battery life.

Download

D25 Product Datasheet
PDF · 1.2 MB
Installation Manual
PDF · 0.8 MB
