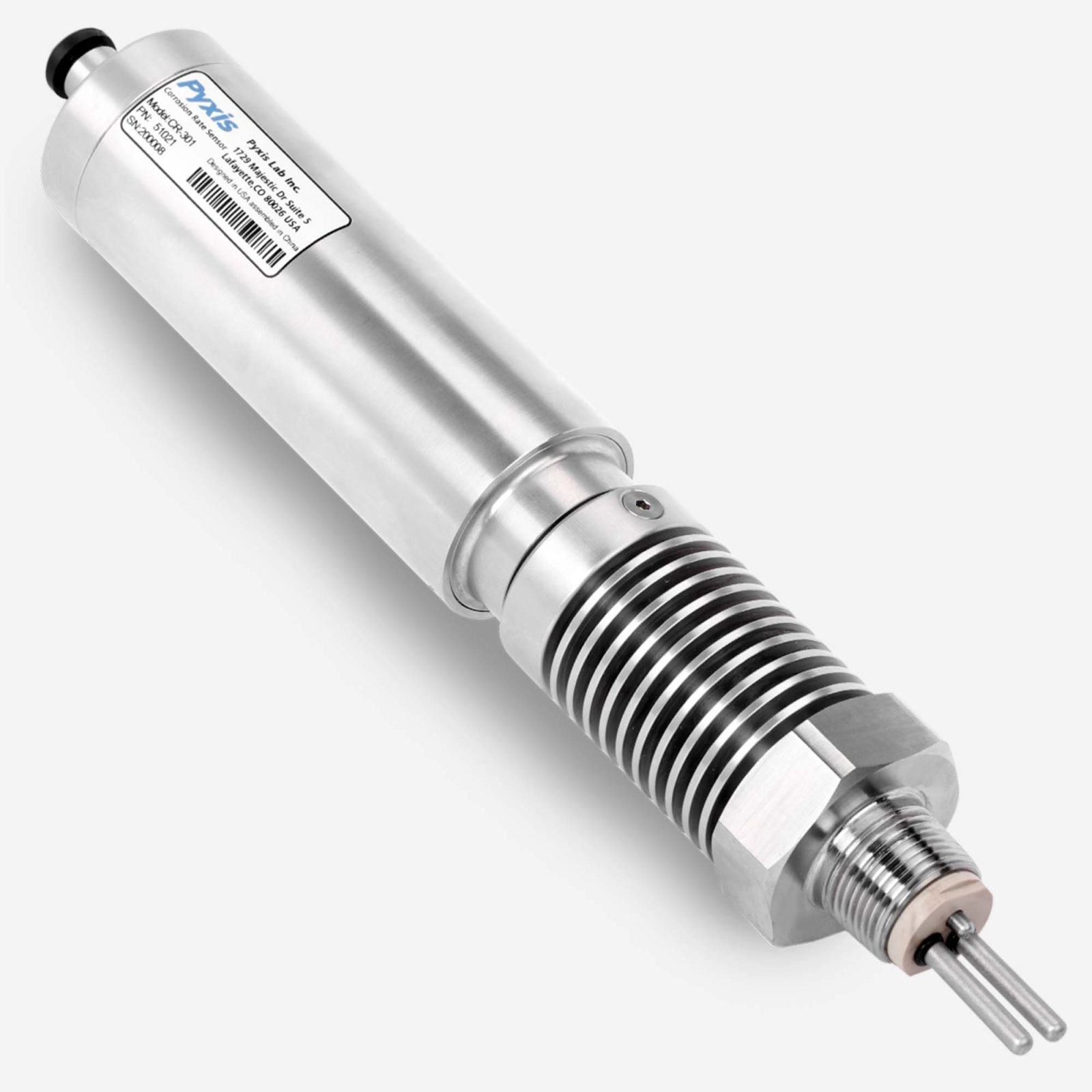

Pyxis CR-301 High Temperature/Pressure Wired LPR Corrosion Sensor (3/4-inch MNPT)
High temperature/pressure (485psi/240°C) wired LPR corrosion sensor, 3/4-inch MNPT, 24V/2W powered. 4-20mA + RS-485 out, 8-pin.
Pyxis CR-301 High Temperature/Pressure Wired LPR Corrosion Sensor (3/4-inch MNPT)
The Pyxis CR-301 is a high temperature and pressure wired Linear Polarization Resistance (LPR) sensor for real-time corrosion rate monitoring, rated to 485psi and 240°C. It installs via a 3/4-inch MNPT thread, runs on 24V/2W power, and outputs data via 4-20mA analog and RS-485 through an 8-pin connector.
Description
The Pyxis CR-301 is a high temperature and pressure wired Linear Polarization Resistance (LPR) corrosion sensor for real-time corrosion rate monitoring in cooling water and process systems. It is rated to 485psi and 240°C, making it suitable for hotter, higher-pressure process lines than standard corrosion sensors can handle.
The sensor installs via a 3/4-inch MNPT threaded connection and runs on 24V/2W power, with data output via 4-20mA analog and RS-485 through an 8-pin connector for integration with plant monitoring systems.
It is intended for facilities monitoring corrosion on demanding process lines where elevated temperature and pressure rule out standard-rated sensors.
Why Use This
Built for Extreme Conditions
Rated to 485psi and 240°C, this sensor withstands high temperature and pressure process environments.
Real-Time Corrosion Monitoring
LPR sensing provides continuous corrosion rate data for cooling water and process systems.
Applications
- High temperature/pressure process lines — corrosion monitoring up to 485psi and 240°C
- Cooling water and process systems — real-time corrosion rate tracking in demanding conditions
FAQ
What temperature and pressure is the CR-301 rated for?
It is rated to 485psi and 240°C, suiting demanding process conditions.
How does the CR-301 connect to piping?
It installs via a 3/4-inch MNPT threaded connection.
What are the power requirements?
The CR-301 runs on 24V/2W power.
How is corrosion data output from the sensor?
Data is output via 4-20mA analog and RS-485 through an 8-pin connector.
