Pyxis CR-300-BSP Wired LPR Corrosion Sensor (1-inch BSPT)
Wired LPR corrosion sensor, 1-inch BSPT, 24V/2W powered. 4-20mA + RS-485 out, 8-pin.
Pyxis CR-300-BSP Wired LPR Corrosion Sensor (1-inch BSPT)

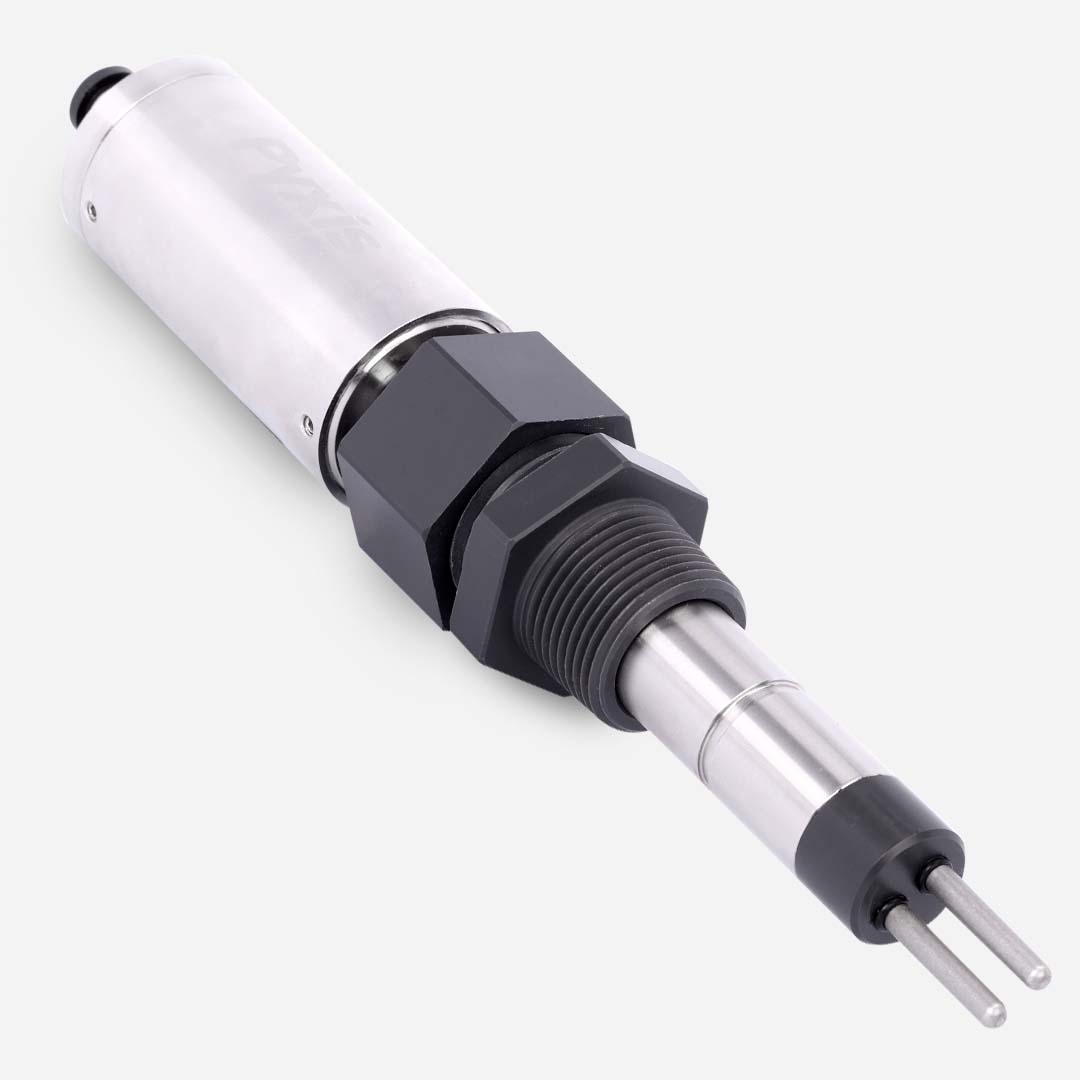

The Pyxis CR-300-BSP is a wired Linear Polarization Resistance (LPR) sensor for real-time corrosion rate monitoring in cooling water and process systems. It installs via a 1-inch BSPT thread, runs on 24V/2W power, and outputs data via 4-20mA analog and RS-485 through an 8-pin connector.
Description
The Pyxis CR-300-BSP is a wired Linear Polarization Resistance (LPR) corrosion sensor for real-time corrosion rate monitoring in cooling water and process systems. It installs via a 1-inch BSPT threaded connection, suiting facilities and regions that standardize on BSPT fittings rather than NPT.
The sensor runs on 24V/2W power and outputs corrosion rate data via both 4-20mA analog and RS-485 through an 8-pin connector, allowing integration with existing plant monitoring and control infrastructure.
It is suited to facilities that want a permanently wired, continuously powered corrosion monitoring point on cooling water or process piping using BSPT threaded fittings.
Why Use This
Real-Time Corrosion Monitoring
LPR sensing provides continuous corrosion rate data for cooling water and process systems.
Straightforward Installation
A 1-inch BSPT thread allows direct mounting into standard piping.
Applications
- Cooling water systems — continuous, wired corrosion rate monitoring
- Process piping systems using BSPT fittings — permanent installation via 1-inch BSPT threaded connection
FAQ
How does the CR-300-BSP connect to piping?
It installs via a 1-inch BSPT threaded connection, fitting standard BSPT piping fittings.
What are the power requirements?
The CR-300-BSP runs on 24V/2W power.
What does the CR-300-BSP measure and how is data output?
It measures real-time corrosion rate using Linear Polarization Resistance (LPR) technology, with output via 4-20mA analog and RS-485 through an 8-pin connector.
