D3GL2
- Injection range 1 - 5 % [1:100 - 1:20]
- Water flow range 500 l/h - 9 m3/h
- Operating water pressure 0,3 - 8 bar
- Concentrated additive injection 5 - 450 l/h
- Stroke volume ~ 1,7 l
- Connections NPT-BSP 1''1/2 M Ø 40x49mm
- Hose PVC Ø 20x27mm - Lg 1,20m
D3GL2

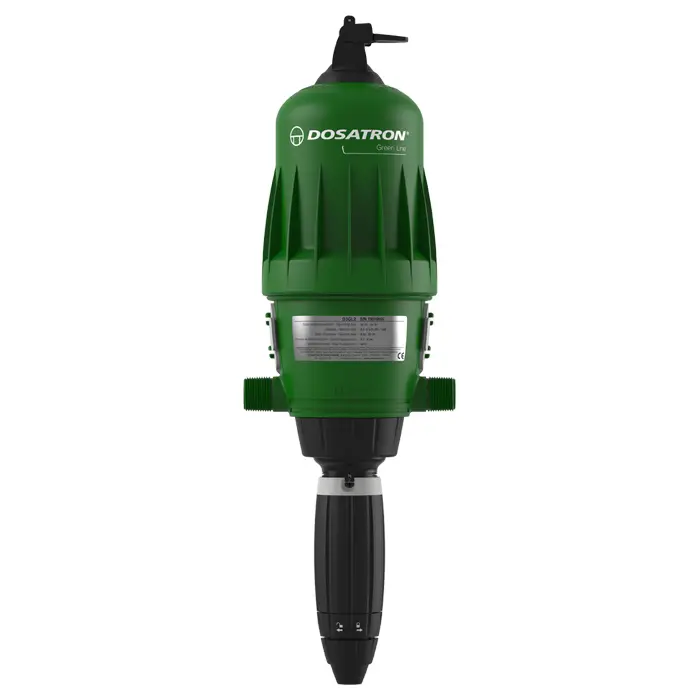

The D3GL2 is a water-driven fertilizer injector that operates solely on water pressure, with no electricity required. It suits irrigation systems with flow rates between 500 l/h and 9 m3/h, delivering precise fertilizer injection across a 1% to 5% dosing range. The injector works with both liquid and soluble fertilizers, in conventional or organic treatment programs.
Description
The D3GL2 is a water-driven fertilizer injector designed for irrigation systems, operating purely on water pressure with no electricity required. This makes installation simple in field or greenhouse locations where running power to the injection point isn’t practical.
It’s built for flow rates between 500 l/h and 9 m3/h and delivers precise fertilizer injection across a 1% to 5% dosing range, giving growers control over nutrient concentration as irrigation demand changes. The injector is compatible with both liquid and soluble fertilizers, across conventional and organic treatment programs, so it can serve a range of fertigation strategies without needing a different unit for each product type.
For growers who need dependable, self-powered fertilizer injection at moderate-to-high flow, the D3GL2 offers flexible dosing without added electrical infrastructure.
Why Use This
No Electricity Required
Operates solely on water pressure, simplifying installation in irrigation systems without power access.
Precise Fertilizer Injection
Delivers a 1% to 5% dosing range across flow rates from 500 l/h to 9 m3/h.
Works With Your Fertilizer Program
Compatible with liquid and soluble fertilizers, both conventional and organic.
Applications
- Irrigation fertigation — precise fertilizer injection across a 1% to 5% dosing range
- Organic growing programs — compatible with organic as well as conventional liquid and soluble fertilizers
- Power-limited field or greenhouse sites — water-driven operation removes the need for an electrical hookup
FAQ
Does the D3GL2 need a power source?
No. It’s water-driven and operates solely on water pressure, eliminating the need for electricity.
What flow rates is it suited to?
It’s suitable for irrigation systems with flow rates between 500 l/h and 9 m3/h (9 m3/h maximum).
What dosing range can I set?
The D3GL2 provides precise fertilizer injection across a 1% to 5% dosing range.
Can it be used with organic fertilizers?
Yes. It’s suitable for both liquid and soluble, conventional and organic fertilizers and treatments.
